OYANG Machinery Smart17 260S AIA Intelligent Automation Paper Bag Production Shopping Paper Bag Making Machine

OYANG Machinery Smart17 260S AIA Intelligent Automation Paper Bag Production Shopping Paper Bag Making Machine

Name: OYANG Machinery Smart17 260S AIA Intelligent Automation Paper Bag Production Shopping Paper Bag Making Machine
Brand: OYANG
Rating: 5.0 (30 reviews)

200,000+ Bags/Day | +100% Capacity
Full Line Automation | Bag→Pack→Seal→Palletize
3 Days to Operate | No Engineers Needed
80% Imported Parts | 24/7 Stable Running

Model:
Smart 17 260S
Brand:
OYANG

Availability:

Quantity:



Inquire Add to Basket

Product Description

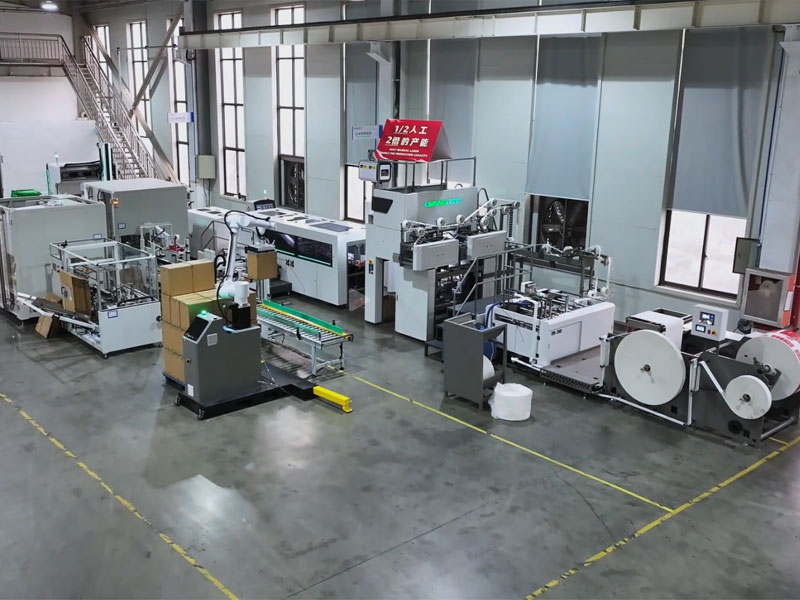

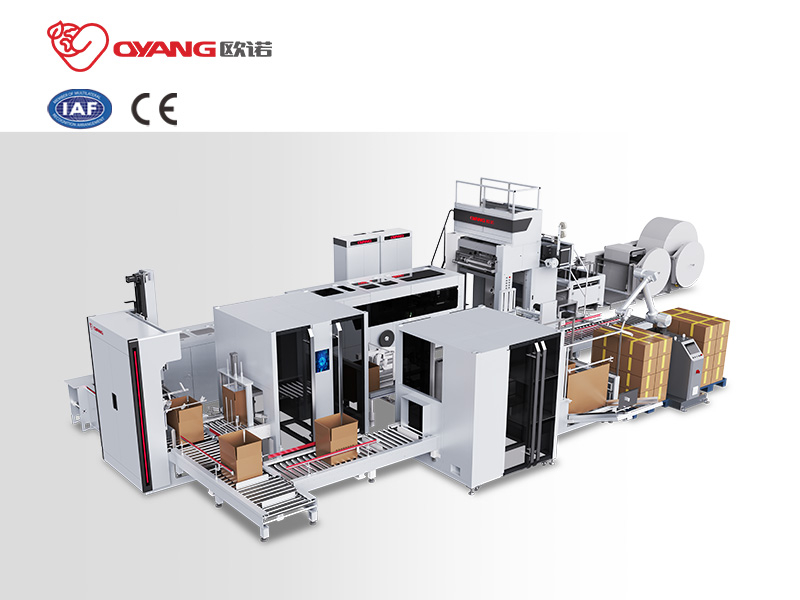

SMART 17 AIA High speed 260pcs/min intelligent paper bag making production line

Designed for big volume order production , it is a high-speed machine.

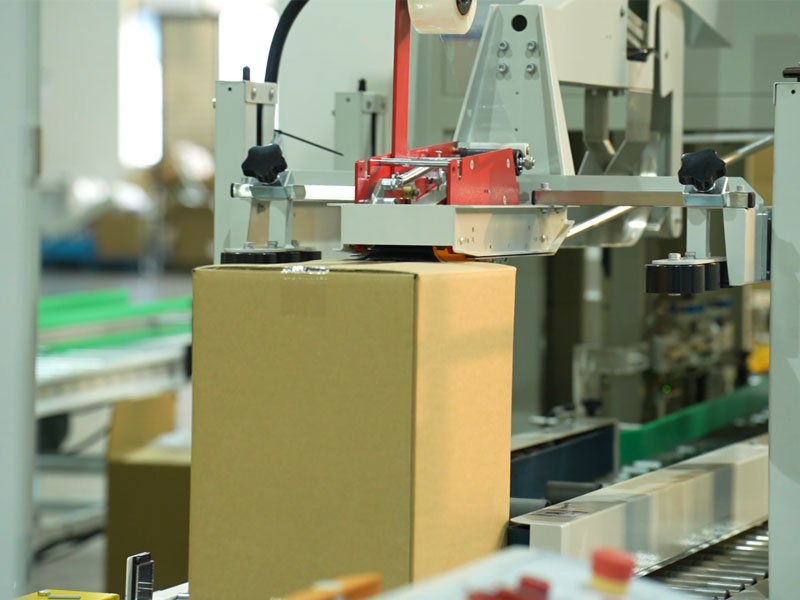

Automatic bagging , automatic binding , automatic packing , automatic opening ,sealing , automatic palletizing , with a small number of labors ,high efficiency low production cost , daily output can exceed 200,000+

No need for professional engineer , new people can start to operate in 3 days

Model No.	A220-S/D	A400
Paper diameter	≤1500mm	≤1500mm
Core inner diameter	Φ76mm	Φ76mm
Paper weight	70-140gsm	80-140gsm
Paper bag width(with handle)	120-220mm	200-400mm
Paper bag width(without handle)	100-220mm	150-4000mm
Each machine can choose 3-4 customized bag size
Paper tube length(with handle)	190-350mm	280-550mm
Paper tube length(without handle)	190-430mm	280-600mm
Bottom width of paper bag	95-115mm	90-200mm
Paper roll width	290/370-710mm	510/610-1230mm
Machine Speed	150-300pcs/min	150pcs/min
Noise Figure	70-80db	70-80db
Total power	32kw	34kw
Machine weight	13000kg	18000kg
Machine dimensions	12x5x3.2M	15x6x3.5M

Model No.	2HD	5HD
Handle rope height	90-110	95-115
Handle patch width	40-50	45-50
Handle patch length	95	152
Handle rope diameter	Φ3-5mm	Φ4-6mm
Diameter of Handle Patch Paper Roll	Φ1200mm	Φ1200mm
Handle patch paper roll width	80-100mm	90-100mm
Handle patch weight	100-140g	100-140g
Handle separation distance	47	76
