Lamination Machine Solutions for Packaging, Nonwoven and Flexible Materials

OYANG provides roll-to-roll lamination machine solutions for packaging manufacturers, nonwoven product factories, printing companies and flexible material converters. Our lamination machine portfolio covers extrusion coating and lamination machines, solventless lamination machines and dry laminating machines for different materials, adhesive systems and packaging applications.

Home / Our Machine / Lamination Machine1
Lamination Machinery Built for Different Materials and Applications
3 Lamination Technologies
Extrusion, Solventless, Dry Laminating

500 m/min
Solventless lamination max speed

450 m/min
Dry laminating max speed

1300 mm
Max substrate width

Zero VOC Option
Solventless lamination eco-friendly

Multi-material Compatibility
Nonwoven, Paper, Film, OPP, PET, PE, CPP, Aluminum Foil, Labels, Flexible Packaging
Choose Your Lamination Machine Technology
OYANG provides three major roll-to-roll lamination technologies for different materials, adhesive systems and packaging applications. Customers can choose the right lamination machine according to substrate type, bonding method, VOC requirement, production speed and final packaging structure.

Extrusion Coating & Lamination Machine
Hot-melt PE / PP resin is extruded directly onto nonwoven, paper or film substrates. No adhesive and no drying oven are required. It is suitable for nonwoven bag material coating, paper and film lamination, adhesive materials, labels and packaging materials.

 PE / PP Resin Coating
 Nonwoven & Paper
 No Adhesive
 No Drying Oven
 Zero VOC
 10–150 m/min
 600–1250 mm Lamination Width
ONL-M1300-High-Speed-Non-Woven-Coating-And-Lamination-Machine

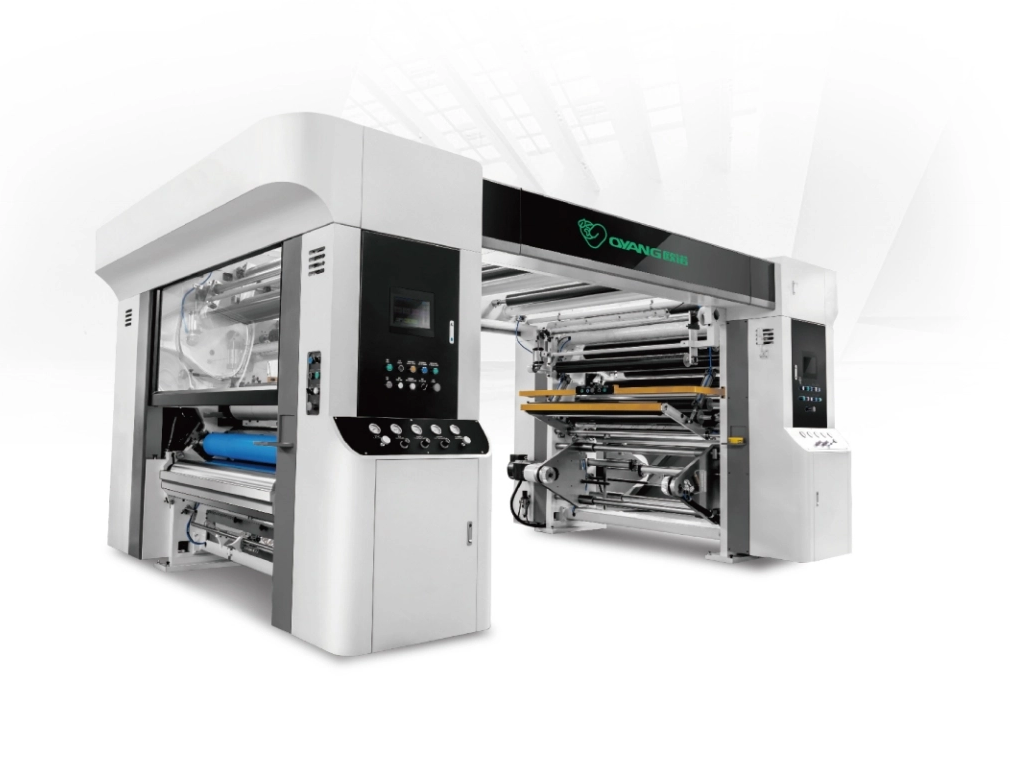

Solvent-Free Lamination Machine — ONL-LA450
Solvent-free lamination uses reactive PU adhesive bonding at room temperature. It does not require a drying oven and supports cleaner flexible packaging production. It is suitable for food packaging, pharmaceutical packaging, composite films and eco-friendly flexible packaging materials.

 500 m/min
 Zero VOC
 No Drying Oven
 Italian Mizar Mixer
 10 Servo Motors
 Food & Pharma Packaging
 Eco-friendly Flexible Packaging
crop_1781098950501
Dry Laminating Machine — ON-DL-3125F
Dry laminating uses heat-activated adhesive and a multi-zone drying oven to produce strong multi-layer flexible film structures. It is suitable for high-barrier packaging used in food, pharmaceutical, personal care, pet food, coffee, tea and pouch packaging.

 450 m/min
1050 / 1300 mm Width
BOPP / PET / PE / CPP / AL Foil
Multi-layer Barrier Film
Food & Pharma Packaging
Drying Oven
High Bonding Strength
dry laminator

500 m/min

Max solvent-free lamination speed

450 m/min

Max dry laminating speed

3 Technologies

Extrusion coating, solvent-free lamination
and dry laminating

1300 mm

Max substrate width for
wide roll-to-roll lamination

Zero VOC Option

Solvent-free and extrusion coating
solutions for cleaner production

CE / ISO9001

Certified lamination machine solutions
for global packaging manufacturers
Which Lamination Machine Is Right for You?
Compare the three lamination technologies side by side to find the best match for your substrate, adhesive system, application and production requirements.

Comparison Item Extrusion Coating & Lamination Solvent-Free Lamination Dry Laminating
Recommended Model ONL-M1300 ONL-LA450 ON-DL-3125F
Best For Nonwoven bag materials, PE-coated paper, film coating, adhesive products, packaging material lamination Eco-friendly flexible packaging, food packaging, pharmaceutical packaging, composite film production High-barrier multi-layer film, food packaging, pharma packaging, coffee bags, pet food pouches
Max Speed 10–150 m/min Up to 500 m/min Up to 450 m/min
Substrate Width 600–1250 mm Up to 1300 mm 1050 / 1300 mm
Bonding Method PE / PP resin hot melt coating Reactive PU adhesive Heat-activated adhesive
Drying Oven Required No No Yes
VOC Emissions Zero VOC Zero VOC Depends on adhesive system
Lamination Structure Single coating layer / surface coating 2–3 layer flexible film structures 2–3 layer high-barrier film structures
Suitable Materials Nonwoven fabric, paper, OPP, aluminum foil, film, labels BOPP, PET, PE, CPP, AL foil, nylon BOPP, PET, PE, CPP, AL foil, nylon, OPP
Main Advantages No adhesive required, no drying oven, suitable for nonwoven and paper coating, efficient surface coating process Cleaner production, no solvent residue, no drying oven, suitable for food and pharma flexible packaging Strong bonding, excellent oil / grease / moisture barrier, suitable for demanding high-barrier packaging
Recommended Applications Nonwoven shopping bag materials, PE-coated packaging materials, paper/film coating, adhesive materials Food packaging, pharma packaging, eco-friendly flexible pouches, composite films Coffee bags, snack packaging, frozen food packaging, pet food pouches, sterile barrier pouches
Recommended CTA View Extrusion Coating Machine View Solvent-Free Lamination Machine View Dry Laminating Machine
Product Link https://www.oyang-group.com/ONL-M1300-High-Speed-Non-Woven-Coating-And-Lamination-Machine-pd773110288.html https://www.oyang-group.com/solventless-lamination-machine.html https://www.oyang-group.com/Dry-Lamination-Machine.html

Simple Selection Logic
  Choose Extrusion Coating & Lamination if you need nonwoven fabric coating, paper coating, film coating, PE coating, adhesive products or packaging material lamination.

Choose Solvent-Free Lamination if you need eco-friendly flexible packaging, food packaging, pharmaceutical packaging or composite film production without solvent emissions.

Choose Dry Laminating if you need high-barrier multi-layer structures for snacks, coffee, condiments, frozen food, pet food, pharmaceutical pouches or personal care packaging.
Product & Film Structure — How Three Lamination Technologies Build Different Packaging Materials
Different lamination technologies create different material structures. The right process depends on the substrate, adhesive system, barrier requirement, production speed and final packaging application. OYANG provides three roll-to-roll lamination technologies — Extrusion Coating & Lamination, Solvent-Free Lamination and Dry Laminating — to help customers build suitable material structures for nonwoven bags, paper packaging, flexible pouches, food packaging, pharmaceutical packaging and high-barrier films.

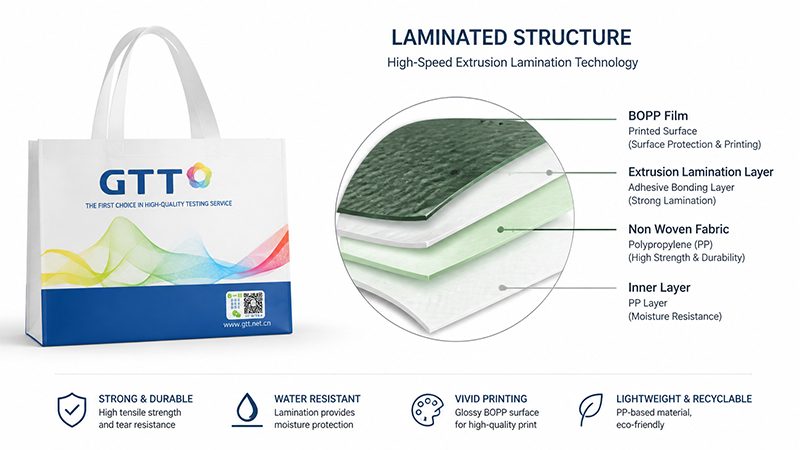

01 / Extrusion Coating & Lamination
application
Best for: Nonwoven fabric, PE-coated paper, film coating and packaging materials.
How it works: PE or PP resin is melted and extruded directly onto the substrate surface. The resin forms a functional coating layer without traditional adhesive or drying oven.
Process Flow: Unwinding → Extrusion Coating → Nip Bonding → Rewinding
Material Structure: Base Material + PE / PP Coating Layer
Key Benefits:
  • No adhesive required
  • No drying oven
  • Zero VOC
  • Adds waterproof and heat-sealable surface
  • Suitable for nonwoven bag materials and coated packaging materials

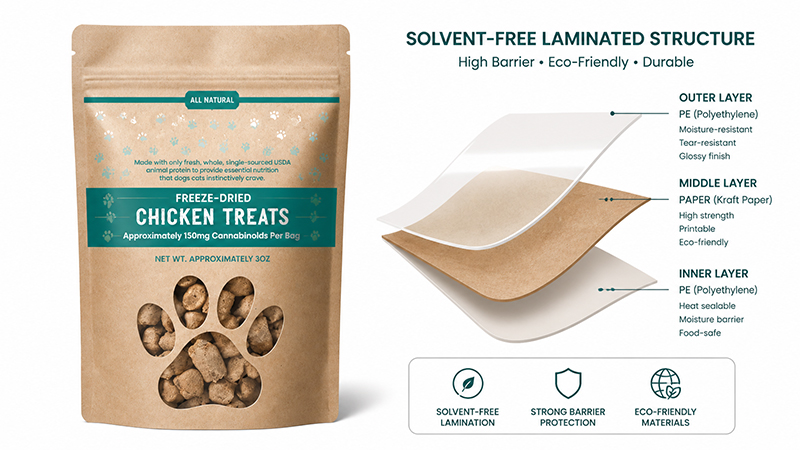

02 / Solvent-Free Lamination
application2
Best for: Eco-friendly flexible packaging, food packaging and pharmaceutical packaging.
How it works: Two-component PU adhesive is mixed and coated onto the first film layer. A second film layer is laminated under pressure, and the adhesive cures without a drying oven.
Process Flow: PU Mixing → Precision Coating → Film Lamination → Curing → Rewinding
Material Structure: Film + Solvent-Free Adhesive + Film
Key Benefits:
  • Zero VOC
  • No drying oven
  • Cleaner production
  • Low solvent residue risk
  • Suitable for food and pharma packaging
  • Supports high-speed flexible packaging production

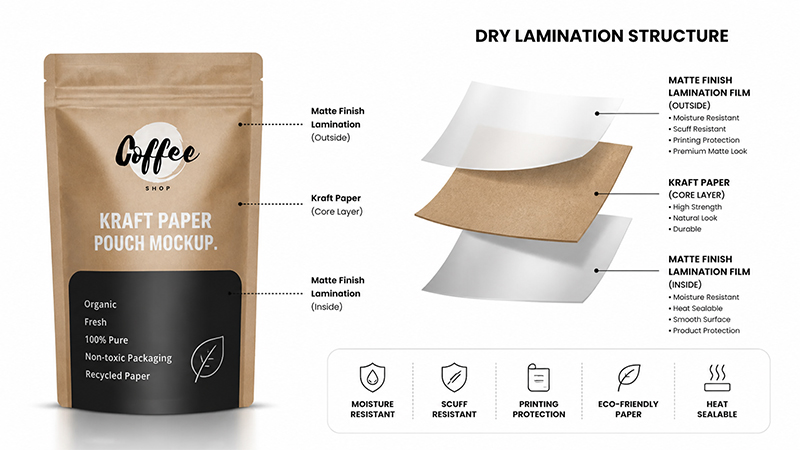

03 / Dry Laminating
application3
Best for: High-barrier flexible packaging, coffee bags, snack packaging, pet food pouches and pharma pouches.
How it works: Adhesive is coated onto the first substrate and dried through a multi-zone oven. Then the second film layer is laminated under heat and pressure to form a strong multi-layer structure.
Process Flow: Adhesive Coating → Drying Oven → Lamination Nip → Rewinding
Material Structure: Film + Adhesive + Film or PET / AL Foil / PE Multi-layer Structure
Key Benefits:
  • Strong bonding
  • High barrier performance
  • Suitable for aluminum foil structures
  • Good oil, grease and moisture resistance
  • Suitable for demanding food and pharma packaging


Roll-to-Roll Lamination Machine FAQ

  • Q Can I send my material sample for machine recommendation?

    A
    Yes. If you are not sure which lamination machine is suitable, you can send your material sample, film structure, product photo or packaging application.

    OYANG engineers can evaluate your substrate, lamination structure and production target, then recommend the most suitable machine, such as ONL-M1300 extrusion coating machine, ONL-LA450 solvent-free lamination machine or ON-DL-3125F dry laminating machine.

  • Q Can OYANG provide a complete lamination solution instead of only one machine?

    A
    Yes. OYANG can recommend a complete roll-to-roll lamination solution based on your production needs.

    The solution can include machine selection, material structure suggestion, lamination technology recommendation, production speed planning, machine configuration, installation support, operator training and after-sales service.

  • Q What information should I provide before requesting a quotation?

    A
    To recommend the most suitable lamination machine, please provide:

    Substrate or material type
    Material width
    Lamination structure
    Adhesive or coating method
    Target production speed
    Final packaging application
    Barrier requirement
    Solvent-free or VOC requirement
    Sample image, material sample or technical drawing

    With these details, OYANG can help you choose the suitable lamination technology and machine configuration.

  • Q Do all roll-to-roll lamination machines need a drying oven?

    A
    No. Not all lamination machines require a drying oven.

    Extrusion coating and lamination does not need a drying oven because melted PE or PP resin bonds directly to the substrate.
    Solvent-free lamination does not need a drying oven because the adhesive cures without solvent evaporation.
    Dry laminating requires a drying oven to evaporate the carrier and activate the adhesive before lamination.

  • Q What materials can OYANG lamination machines process?

    A
    OYANG roll-to-roll lamination machines can process a wide range of flexible materials, including:

    Nonwoven fabric
    Paper
    OPP / BOPP
    PET
    PE
    CPP
    Aluminum foil
    Nylon
    Labels
    Flexible packaging films

    Different materials require different lamination technologies, so customers can send material samples or structure details for machine recommendation.
