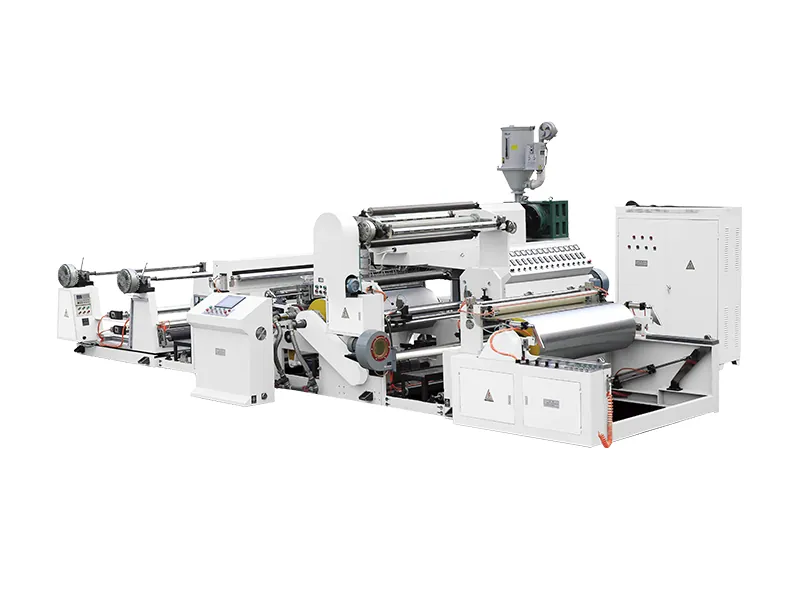

ONL-M1300 High Speed Non Woven Coating And Lamination Machine

Model：
ONL-M1300

库存： 0

Add to Basket

Inquire

Product Description
Product Parameter

This machine is used for producing self-adhesive products, such as self-adhesive tape, double-adhesive tape, foam tape, aluminum foil tape, clean tape, masking tape, etc. It also suitable for laminating different materials, such as non-woven, filter materials, shoes materials, medical materials, label, film, etc.

This machine is applicable to professional non woven , film, the paper class material intercept. Widely used in bag making, printing and packaging industry, etc.

Related Products

High Speed Standing pouch with zipper making machine

OYANG Machinery TECH 26 Automatic Non-Woven Box Bag Making Machine with Handle Online

Automatic Hot Foil Stamping and Die Cutting Machine

HONOR 3.5 Plus Rotogravure Printing Machine

More Information About Oyang Machine

Same Heritage · One Promise · Global Trust Official Clarification on OUNUO, OYANG And ALLWELL Brand Relationship
How To Purchase the Right Die Cutting Machine
Die-Cutting Machines

Main Technical Variables
Model	ONL-M1100	ONL-M1300	ONL-M1600	ONL-M1800
Extrusion Die Width	1200MM	1400MM	1800MM	2000MM
Coating Width	500-1000MM	600-1250MM	800-1500MM	900-1700MM
Max. Coating Speed	10-150M/MIN	10-150M/MIN	10-150M/MIN	10-150M/MIN
Coating Thickness	0.01-0.03MM	0.01-0.03MM	0.01-0.03MM	0.01-0.03MM
L/d Ratio For Screw	32:1	32:1	32:1	32:1
Rewinding Roll Diameter	&1200mm	&1200mm	&1200mm	&1200mm
Overall Size (MM)	12500X7000X3200	13000X8000X3200	12000X9000X3200	13000X12000X3200
Total Power	70KW	80KW	100KW	130KW
Mirror Cool Roll Diameter	&510MM	&510MM	&510MM	&510MM
Adopt Material	Non woven\BOPP\Aluminum foil
