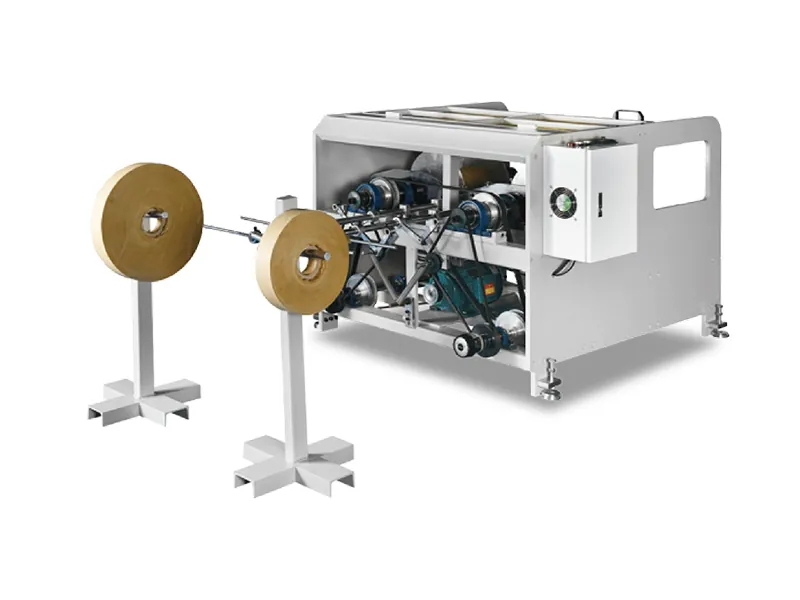

0NL-TW2 Double Station Twisted Paper Rope Machine
0NL-TW2 Double Station Twisted Paper Rope Machine
  • 0NL-TW2

  • Oyang

库存: 0
Add to Basket
Inquire


Product Application

This machine uses a motor to drive two paper rope groups to produce paper ropes. High speed and high production efficiency, it is the first choice for paper rope manufacturers. This machine is mainly used with high-speed hand-drawing machines and paper bag machines, which can quickly produce round paper ropes, so as to provide raw materials for high-speed hand-drawing machines and paper bag machines. This machine uses rolls of kraft paper as raw materials. Through the high-speed rotation of the machine shaft, the paper strips are twisted into paper ropes and stored in the form of rope rolls. Customers can adjust the diameter and tightness of the paper rope to meet the production needs of different specifications.


Sample Picture

paper bag rope




Main Technical Variables

Core Diameter of Raw Rope RollΦ76 mm(3'')
Max. Paper Rope Diameter800mm
Paper Roll Width20-100mm
Paper Thickness20-60g/㎡
Paper Rope DiameterΦ2.5-6mm
Max. Rope Roll Diameter300mm
Max. Paper Rope width300mm
Production Speed30-40m/min
Power Requirements220V
Total Power1.5KW
Total WeightApprox.300KG
Overall DimensionL1580*W1440*H930mm
