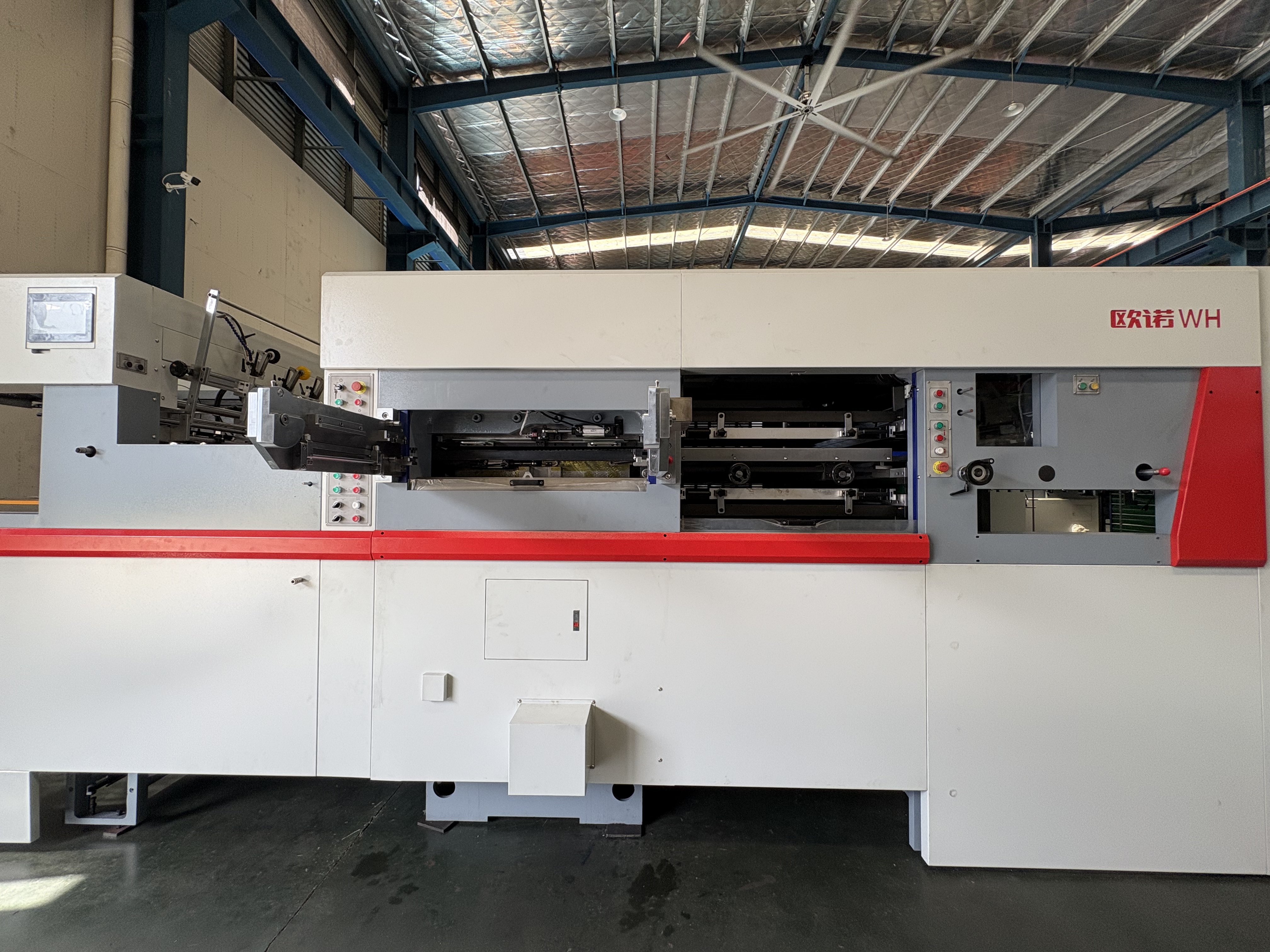

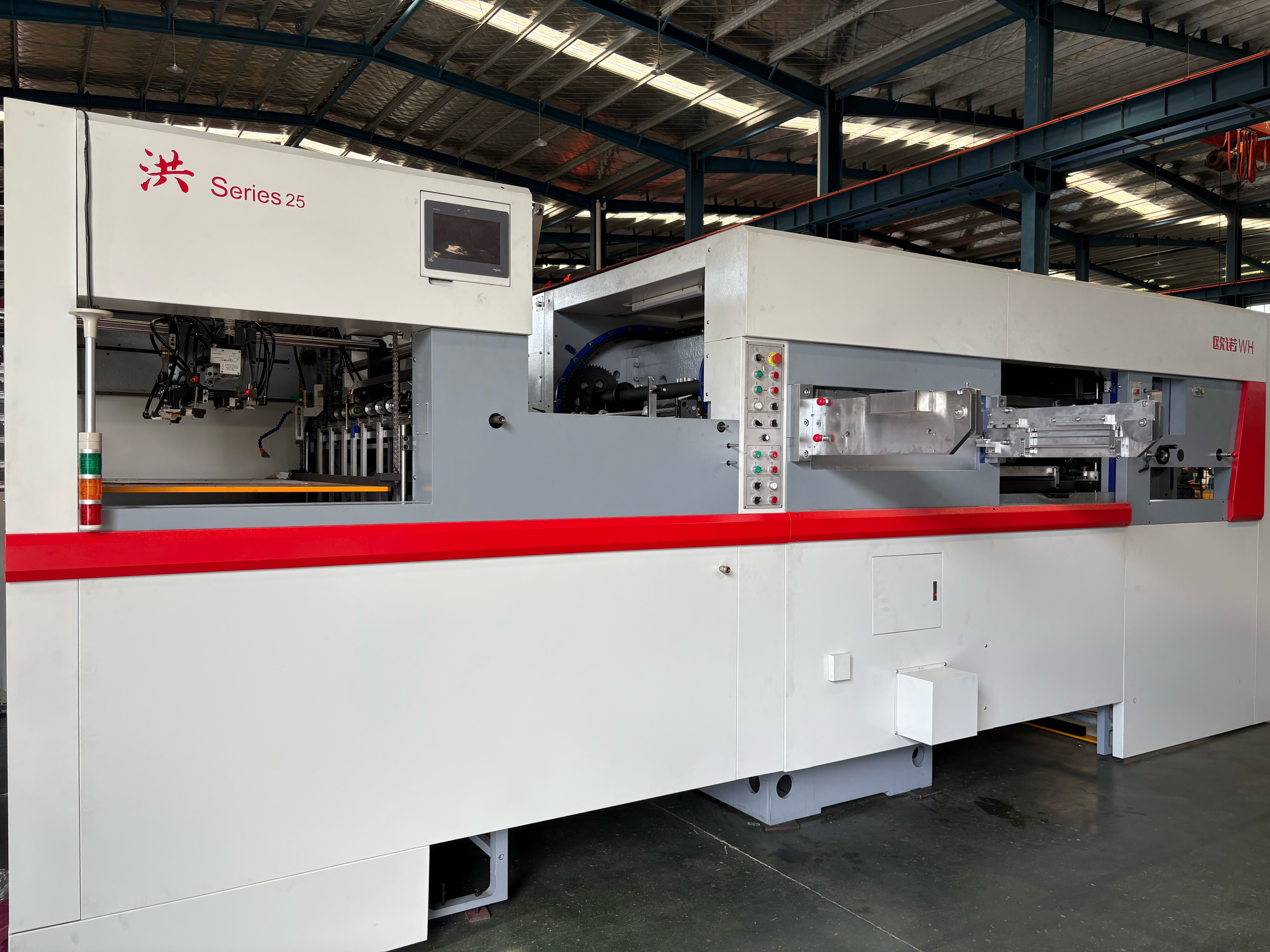

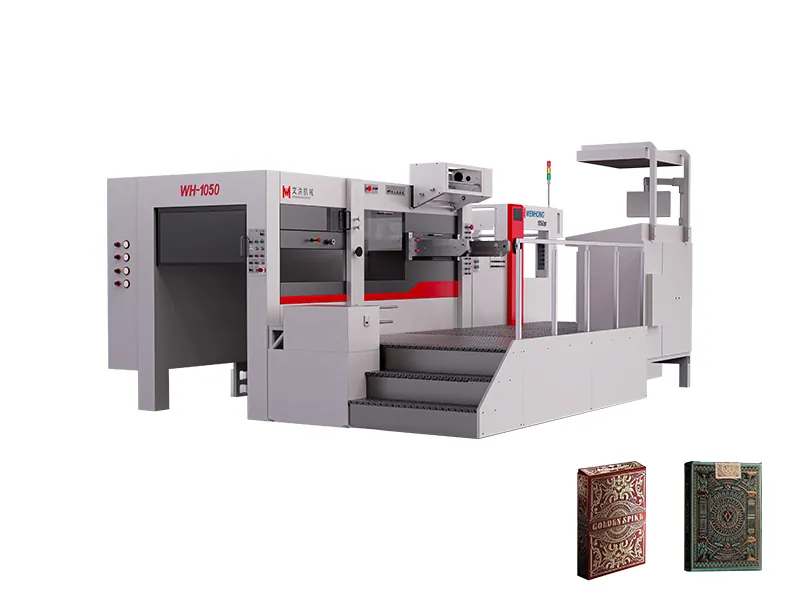

WH-1050SF
Oyang
Whether it is the paper thickness or the size of the hot stamping surface, it can basically meet the existing production processes of all customers. It is widely used in wine packages, cosmetics, and product labels.

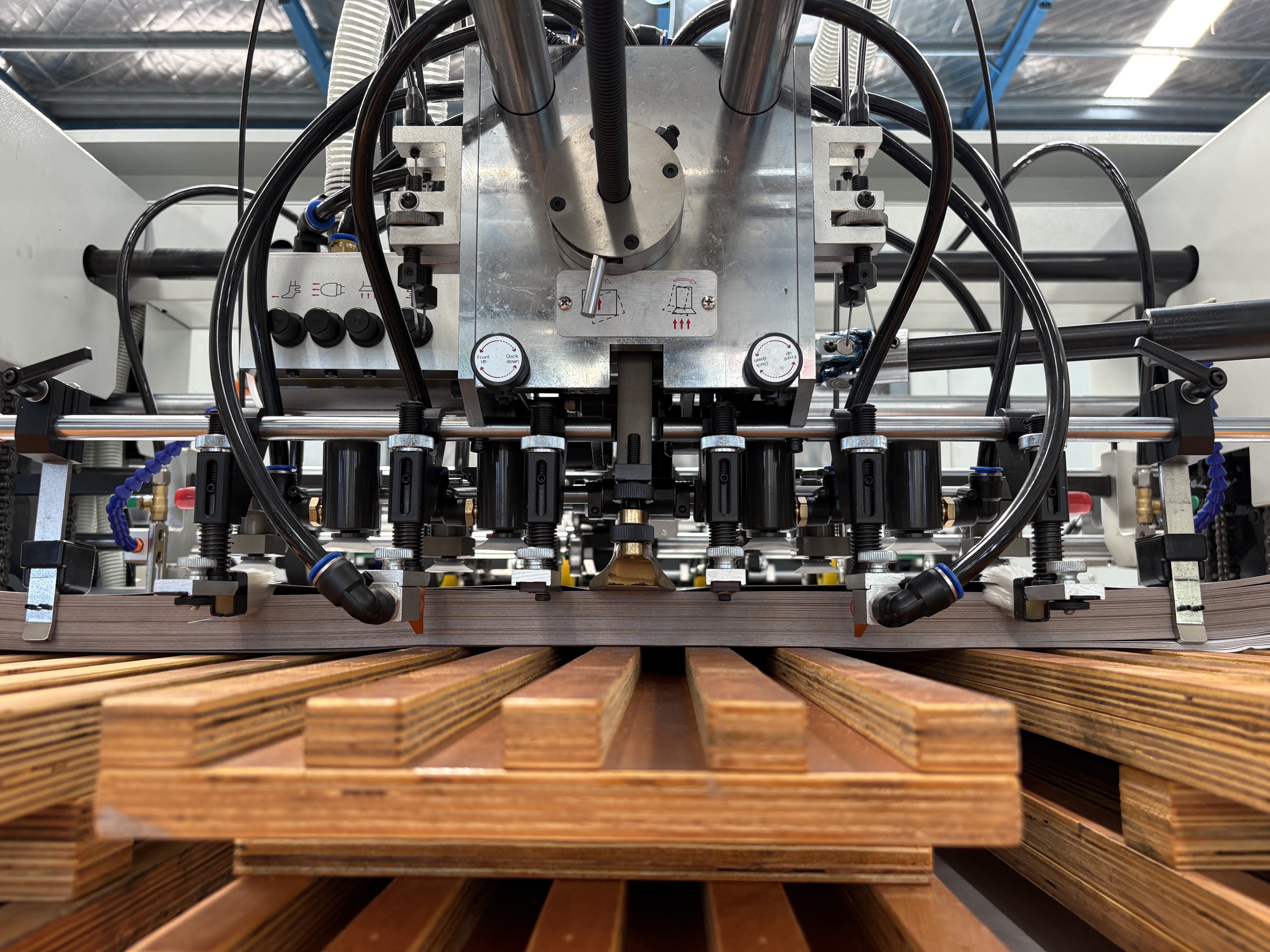

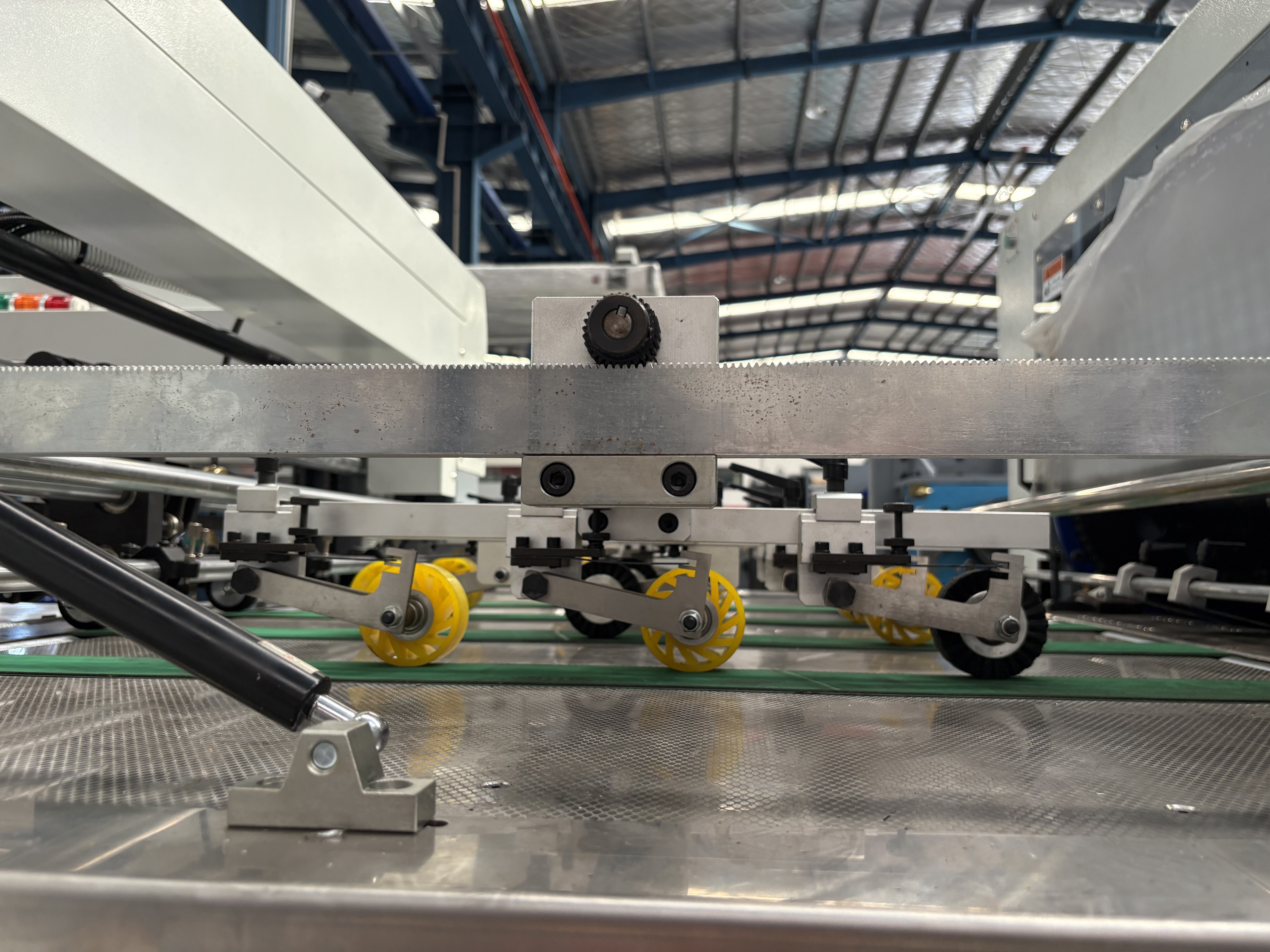

The side positioning adopts the pull and push dual-purpose side lay device, which is selected according to the paper, andthe switching is simple;
The turbine crank drives the elbow bar type high-precision plane die cutting lower workbench;
The control system of the foil stamping is world class (bobst technoledge);
Each shafts of the stamping section is equipped with a high-power servo motor drive, and can be independently programmed to set the gold foil step running or skip feed;
Application:
Suitable for large posters, three-dimensional POP, car trunk stickers, PC, outdoor large billboards, container stickers, glass, elevator decorative metal plates, plastic plates, acrylic, wood boards, etc., multi-color screen printing and color screen printing.
| Specifications | WH-1050SF | WH-1180SF | WH-1300SF |
|---|---|---|---|
| Max. Paper Size | 1050*750mm | 1180*900mm | 1300*1050mm |
| Min. Paper Size | 400*360mm | 400*360mm | 400*360mm |
| Max. Die Cutting Size | 1040*720mm | 1150*885mm | 1290*1000mm |
| Max. Hot Foil Stamping Size | 1020*720mm | 1150*885mm | 1290*1000mm |
| Board Size | 1140*760mm | 1230*915mm | 1370*1025mm |
| Feed Material | 80-2000g/m² Paperboard, 0.1-2mm paperboard, corrugated board thickness ≤ 4mm | 100-2000g/m² Paperboard, 0.1-2mm paperboard, corrugated board thickness ≤ 4mm | 100-2000g/m² Paperboard, 0.1-2mm paperboard, corrugated board thickness ≤ 4mm |
| Max. Speed | 8000 sheets/h | 7500 sheets/h | 6800 sheets/h |
| Max. conveying paper height | 1600mm | 1600mm | 1600mm |
| Working Pressure | 400 Ton | 400 Ton | 400 Ton |
| Power required | 55.0 kw | 55.0 kw | 75.0 kw |
| Electric Heating System | 12 Individual heating area, Max. heating 200℃ | 12 Individual heating area, Max. heating 200℃ | 20 heating zones Max.200℃ |
| Registration Accuracy | ≤±0.075mm | ≤±0.075mm | ≤±0.075mm |
| Machine Weight | 18 Ton | 23 Ton | 26 Ton |
| Machine Dimension | L7.38mW4.1mH2.42m | L7.88mW4.34mH2.52m | L9.3mW4.52mH2.6m |
