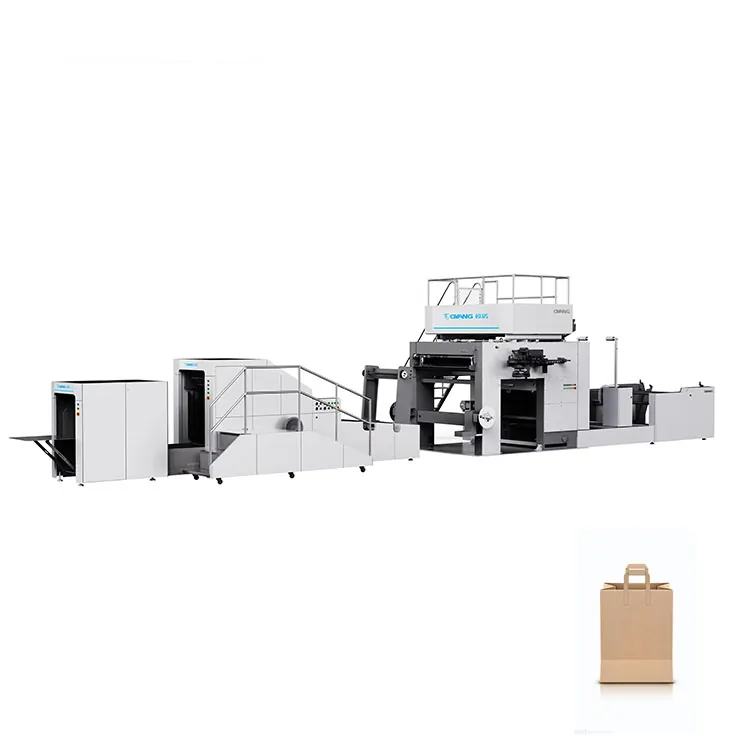

Automatic Roll-fed Square Bottom Paper Bag Machine with Flat Handle
Automatic Roll-fed Square Bottom Paper Bag Machine with Flat Handle
Automatic Roll-fed Square Bottom Paper Bag Machine with Flat Handle
Automatic Roll-fed Square Bottom Paper Bag Machine with Flat Handle
Automatic Roll-fed Square Bottom Paper Bag Machine with Flat Handle
Automatic Roll-fed Square Bottom Paper Bag Machine with Flat Handle
Automatic Roll-fed Square Bottom Paper Bag Machine with Flat Handle
Automatic Roll-fed Square Bottom Paper Bag Machine with Flat Handle
NEW WORLD - AS series machine is designed to manufacture square bottom paper bags with flat-rope handles from paper roll,paper patch roll and flat handle paper roll,and it is an ideal equipment for producing paper handbags fast.
  • SMART17- AS SERIES

库存: 0
Add to Basket
Inquire


Product Introduction

This machine is designed to manufacture square bottom paper bags with flat-rope handles from paper roll,paper patch roll and flat handle paper roll,and it is an ideal equipment for producing paper handbags fast. By completing the steps of handlebar production, handlebar adhesion, paper tube forming, paper cutting, and bag bottom forming in one go, this machine truly realizes fully automated production and can effectively save labor costs. The unique flat rope handle manufacturing process and special finished product counting function effectively improve the efficiency of users' batch packaging of finished products.


Product Advantages


Save transportation space for finished products

Save 50% of patch paper


Realize flat rope folding inward or

outward on the same machine




Reduce labor costs

Easy to operate



Bag Pictures

paper bag






Product Parameter


Model No.

AS 330

AS 400

AS 450

AS 460

AS 560

Paper diameter

≤1500mm

≤1500mm

≤1500mm

≤1500mm

≤1500mm

Core inner diameter

φ76mm

φ76mm

φ76mm

φ76mm

φ76mm

Paper weight


80−140gsm

80−140gsm

80-140gsm

90-140gsm

90-140gsm

Paper bag width

200-330mm

200-400mm

200-450mm

220-460mm

280-560mm


150-330mm

150-400mm

150−450mm

220-460mm

280-560mm

Paper tube length

280-430mm

280-550mm

280-550mm

320-670mm

320-670mm


280-530mm

280-600mm

280-600mm

320-770mm

320-770mm

Bottom width of paper bag

80-180mm

90-200mm

90−200mm

90-260mm

90-260mm

Paper roll width

490/590-1050mm

510/610-1230mm

510/610-1230mm

650-1470mm

770-1670mm

Flat Handle Rope Height

75mm

75mm

75mm

100mm

100mm

Flat Handle Rope Width

12mm

12mm

12mm

16mm

16mm

Paper Rope Roll Width

85mm

85mm

85mm

95mm

95mm

Paper Rope Roll Diameter

φ1200mm

φ1200mm

φ1200mm

φ1200mm

φ1200mm

Paper Rope Thickness

70~80g/m²

70~80g/m²

70~80g/m²

80~100g/m²

80~100g/m²

Handle Patch Length

160mm

160mm

160mm

170mm

170mm

Handle Patch Width

52mm

52mm

52mm

52mm

52mm

Paper Patch Roll Diameter

φ1200mm

φ1200mm

φ1200mm

φ1200mm

φ1200mm

Paper Patch Roll Width

160mm

160mm

160mm

170mm

170mm

Paper Patch Thickness

80~110g/m²

80~110g/m²

80~110g/m²

80~110g/m²

80~110g/m²

Max.Speed

150pcs/min

120pcs/min

120pcs/min

120pcs/min

120pcs/min

Total Power

25kw

29kw

29kw

29kw

29kw

Total Weight

20000kg

22000kg

22000kg

23000kg

24000kg

Overall Dimension

L15×W4.5×H3.4M

L16×W5×H3.4M

L16×W5×H3.4M

L16.5×W5.5×H3.5M

L16.5×W5.5×H3.5M





paper bag machinepaper bag machinepaper bag machine
