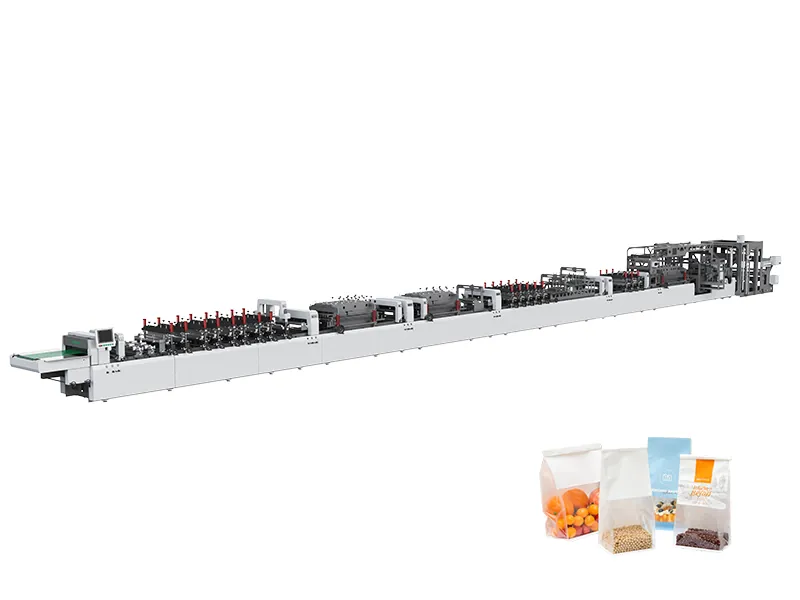

High Speed Flat Bottom Pouch Making Machine
High Speed Flat Bottom Pouch Making Machine
High Speed Flat Bottom Pouch Making Machine
High Speed Flat Bottom Pouch Making Machine
High Speed Flat Bottom Pouch Making Machine
High Speed Flat Bottom Pouch Making Machine
High Speed Flat Bottom Pouch Making Machine
High Speed Flat Bottom Pouch Making Machine
High Speed Flat Bottom Pouch Making Machine
High Speed Flat Bottom Pouch Making Machine
High Speed Flat Bottom Pouch Making Machine
High Speed Flat Bottom Pouch Making Machine
With high speed, wide material adaptability and effective material cost control, this machine is dedicated to helping you achieve your cost reduction and efficiency goals. Through precise process control and efficient production flow, we ensure the stability and consistency of the pouch making process, thus improving product quality and production efficiency.
  • ONK- 650QSB

  • Oyang

库存: 0
Add to Basket
Inquire


Feature

In response to the industry's requirement, Ounuo Machinery Group have developed a new generation of pouch making machine. With high speed, wide material adaptability and effective material cost control, this machine is dedicated to helping you achieve your cost reduction and efficiency goals. Through precise process control and efficient production flow, we ensure the stability and consistency of the pouch making process, thus improving product quality and production efficiency. Choosing us will bring you more professional and efficient pouch-making solutions, helping you gain an edge in the competitive market.


Pouch Samples

八边封01+




Main Technical Parameters


Available Pouch Types

Flat bottom (8 side seal) /4 side seal

pouch with or without zipper

Maximum Pouch Making Shot

200CPM 50m/min(mechanical speed)

120CPM(flat bottom pouch with zipper)

150CPM(4 side seal pouch with zipper)

Pouch Making Capacity

Depends on film material and thickness.

Applicable Material

PE/PE,Laminated films,

OPP,BOPP,PET,PE,CPP,etc.

Material Thickness

70-230um


Body Film Web WidthMax.

1300mm


Body Film Web Dia,Max.

Φ800mm

Gusset Film web width,Max.

400mm


Gusset Film web Dia,Max.

Φ800mm


Paper Core Dia,Max.

3 inch

Pouch Making Length,Max:

①. Flat Bottom Pouch

Single Lane: 650mm-L

Double Lane:325mm-L

②. 4 side seal pouch

Single Lane: 500mm-L

Double Lane:250mm-L

Pouch Making Width,Max:

①. Flat Bottom Pouch

420mm-W

②. 4 side seal pouch

420mm-W

Gusset Folding Length

L=30-200mm

Double &Four Lane for flat bottom pouch making with welded zipper seal need to add inserted bottom gusset device and pper Film Slitting Device

Positioning Accuracy

≤ ±1mm

Heat Sealing Method

Mechanical Press Seal

Total Power

123kW

Electrical Source

4P, AC 380V, 50HZ(Three-phase, four-wire, individually grounded circuits)

Machine Color

Body Black Phosphating, Stainless Steel Safety Shield

Size

L-28500 * W-5000 * H-2100(mm)

Weight

13000kg
