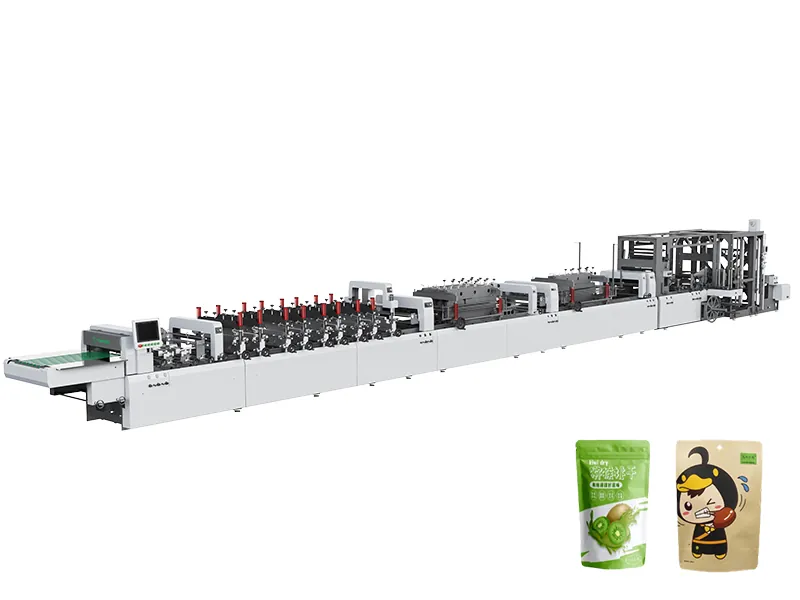

High Speed Multi-functional Pouch Making Machine
High Speed Multi-functional Pouch Making Machine
High Speed Multi-functional Pouch Making Machine
High Speed Multi-functional Pouch Making Machine
High Speed Multi-functional Pouch Making Machine
High Speed Multi-functional Pouch Making Machine
High Speed Multi-functional Pouch Making Machine
High Speed Multi-functional Pouch Making Machine
High Speed Multi-functional Pouch Making Machine
High Speed Multi-functional Pouch Making Machine
With high speed, wide material adaptability and effective material cost control, this machine is dedicated to helping you achieve your cost reduction and efficiency goals. Through precise process control and efficient production flow, we ensure the stability and consistency of the pouch making process, thus improving product quality and production efficiency.
  • ONK- 650SZLL

  • Oyang

库存: 0
Add to Basket
Inquire


Feature

In response to the industry's requirement, Ounuo Machinery Group have developed a new generation of pouch making machine. With high speed, wide material adaptability and effective material cost control, this machine is dedicated to helping you achieve your cost reduction and efficiency goals. Through precise process control and efficient production flow, we ensure the stability and consistency of the pouch making process, thus improving product quality and production efficiency. Choosing us will bring you more professional and efficient pouch-making solutions, helping you gain an edge in the competitive market.



Pouch Samples

stand up pouch-dimensions

stand up pouch size 2











Main Technical Parameters

Machine Type

Multi-functional stand-up & three side seal pouch making machine

Available Pouch Types

Stand up /3 side seal pouch with or without zipper

Maximum Pouch Making Shot

240CPM (3 side seal,45m/min )

200CPM(3 side seal with zipper,30m/min)

150CPM(stand up pouch with zipper, 30m/min)

*Pouch Making Capacity

Depends on film material and thickness.

Applicable Material

PE/PE,Laminated films,

OPP,BOPP,PET,PE,CPP,etc.

Material Thickness

70-230um


Body Film Web Width,Max.

1300mm


Body Film Web Dia,Max.

Φ800mm

Gusset Film web Width,Max.

400mm


Gusset Film web Dia,Max.

Φ800mm

Paper Core Dia,Max.

3 inch


Pouch Making Length,Max:

①. Stand Up Pouch

Single Lane: 650mm-L

Double Lane:325mm-L

Gusset Bottom:40-200mm-L

②. 3 side seal pouch

Single Lane: 650mm-L               Double Lane:325mm-L

Pouch Making Width,Max:

①. Stand Up Pouch

420mm-W



②. 3 side seal pouch

420mm-W

(Above 420mm use 6 times feeding)

The above pouches can be welded with zipper seals.

Positioning Accuracy

≤ ±1mm

Heat Sealing Method

Mechanical Press Seal

Total Power

95kW

Electrical Source

4P, AC 380V, 50HZ(Three-phase, four-wire, individually grounded circuits)

Machine Color

Body Black Phosphating, Stainless Steel Safety Shield

Size

L-20000 * W-4000 * H-2100(mm)

Weight

10000kg
