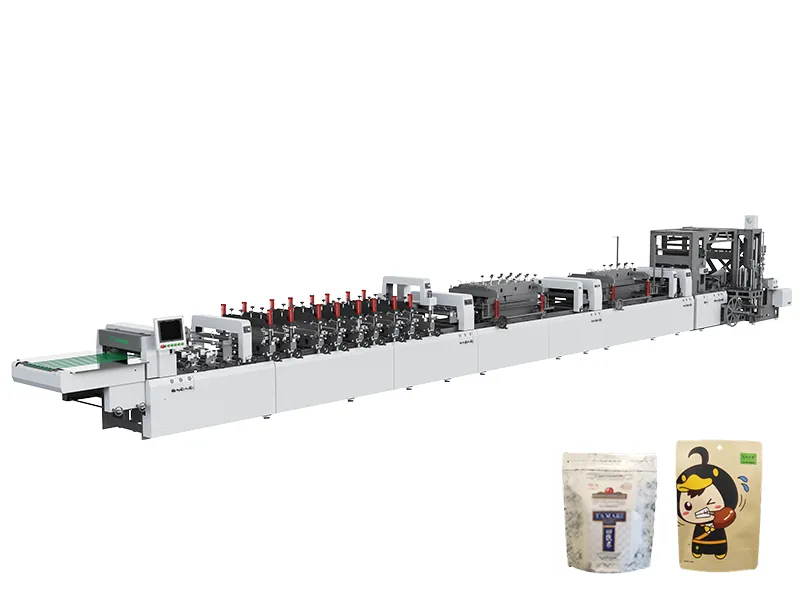

High Speed Standing pouch with zipper making machine
High Speed Standing pouch with zipper making machine
High Speed Standing pouch with zipper making machine
High Speed Standing pouch with zipper making machine
High Speed Standing pouch with zipper making machine
High Speed Standing pouch with zipper making machine
High Speed Standing pouch with zipper making machine
High Speed Standing pouch with zipper making machine
High Speed Standing pouch with zipper making machine
High Speed Standing pouch with zipper making machine
With high speed, wide material adaptability and effective material cost control, this machine is dedicated to helping you achieve your cost reduction and efficiency goals. Through precise process control and efficient production flow, we ensure the stability and consistency of the pouch making process, thus improving product quality and production efficiency.
  • ONK- 650SZL

  • Oyang

库存: 0
Add to Basket
Inquire


Feature

In response to the industry's requirement, Ounuo Machinery Group have developed a new generation of pouch making machine. With high speed, wide material adaptability and effective material cost control, this machine is dedicated to helping you achieve your cost reduction and efficiency goals. Through precise process control and efficient production flow, we ensure the stability and consistency of the pouch making process, thus improving product quality and production efficiency. Choosing us will bring you more professional and efficient pouch-making solutions, helping you gain an edge in the competitive market.



Pouch Samples

stand up pouch-dimensions

stand up pouch size 2











Main Technical Parameters

Applicable Range Of Material

Various laminated films

Roll Size

Mainfilm/maximum width:1200mm

The maximum diameter:Φ800mm

Substrate/maximum width:150mm

The maximum diameter:Φ600mm

Maximum weight:35kqf

Unwinding Unit

Main film / Horizontal air shaft, loss-in-energy brake, tension control system with magnetic powder brake

Gusset film / Horizontal air shaft, tension control system with magnetic powder brake

Control System

PLC control method

Film Feeding Mechanism

4 AC servo motor traction system (can be increased or decreased according to the optional function)

*Various pouch making parameters are set on the LcD screen, easy to operate.

Printing colour mark with colour mark sensor for tracking and positioning

Heat Sealer Vertical

Movement Mechanism

AC servo motor centralized drive system (with heat sealing opening and closing time setting function)


Pouch Production Capacity

<Three-side-seal pouch>Maximum speed 300 cp, producivity depends on the material; Maximum unwind speed:.45m/minute

<Three-side-seal pouich with zipper >Maximum speed 240 CP,productiviy depends onthe materiat, Maximum unwind speed: 30m/minute

<Standina pouch with zippapMaxmum speed 200 CpM, producivty depends on the matenrial: Maxmum unwind soeed: 30m/minute

<Standing pouch> Maximum speed 240 CP, procluctivity depends on the material Maximum unwind speed: 30m/minute

Equipment Power

(380V/50Hz)86.6kW

Area For installation/equipment Weigh

About 2.4m*16.8m/About 9.5t

Optional Devices

Double feeding device

Puncher bracket

Waste edge winding machine
