Product Application:

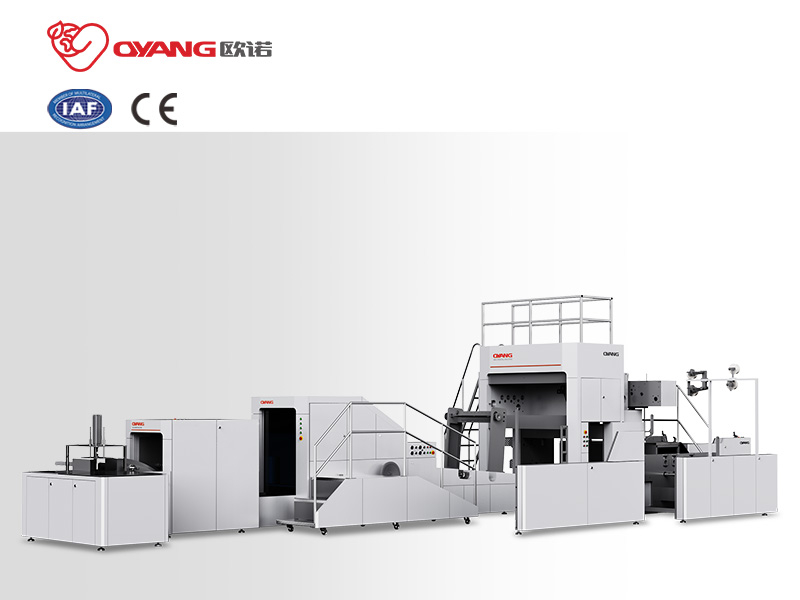

OYANG Machinery A series full automatic square bottom paper bag machine, with web, drum head card and paper rope as raw materials, one time complete with handle square bottom paper bag, is the ideal equipment for the rapid production of portable paper bags.Such as shopping bags, shoes and clothing packaging bags, gift packaging bags, business bags and other varieties of hand-held paper bags.
  • OYANG 16 A SERIES

  • Oyang

库存: 0
Add to Basket
Inquire

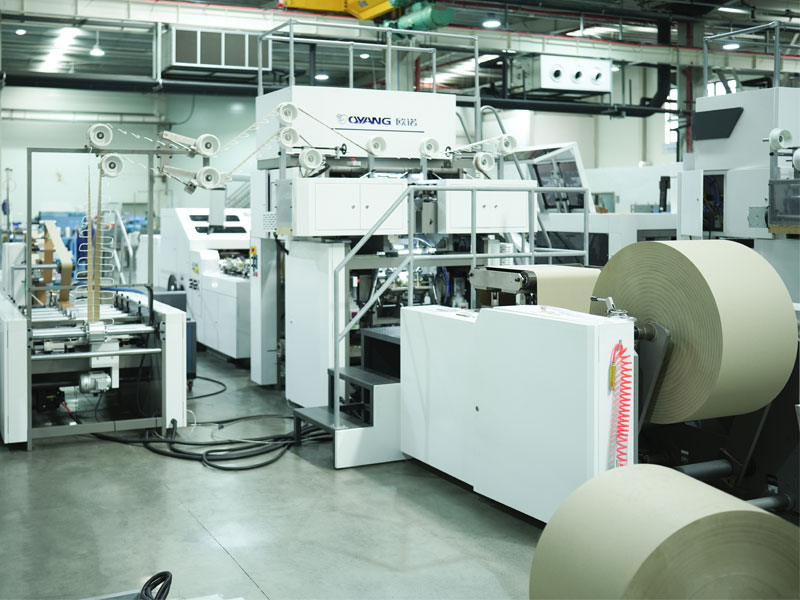

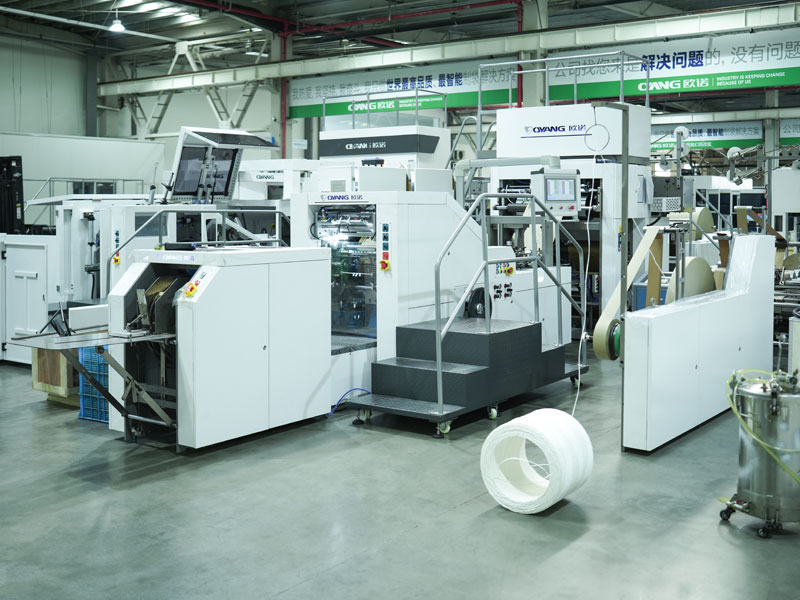

Fully automatic square bottom paper bag machine is used for the production of a paper bag with a twisted handle loop. Transmission of the handle made by handle making unit, cut, stick, pressed, and then pre-cut, glue, auto handle stick in empty or printed roll paper. Then the main machine will glue the paper with the handle loop to the edge, paper bag tube forming, cut off, indentation, bottom glue, bottom forming, and sealing, bag conveying. the whole process is completed simultaneously at one time. Real realization of full automation production, can effectively save labor costs.


The whole machine adopts the servo-electric control system imported from Japan, which ensures the whole machine can run quickly and stably and effectively reduces the time of paper bag size adjustment. The finished bags produced are of high accuracy, strong stability, simple maintenance, and efficient production, which is the ideal equipment for major printing plants and paper bag manufacturers.


Product Advantages


Save land area

Suitable for thin paper

Stable machine operation

High production efficiency

icon

Can make different bag bottoms

Wide range of bag making dimensions



Main Technical Variables

ModelNew World-A220New World-A330New World-A400New World-A450New World-A460New World-A560

Paper Diameter

≤1500mm≤1500mm≤1500mm≤1500mm≤1500mm≤1500mm
Core Inner Diameter∅76mm∅76mm∅76mm∅76mm∅76mm∅76mm
Paper Weight70-140gsm80-140gsm80-140gsm80-140gsm80-140gsm90-140gsm
Paper Bag Width120-220mm with handle200-330mm with handle200-400mm with handle200-450mm with handle240-460mm with handle280-560mm with handle
80-220mm without handle150-330mm without handle150-400mm without handle150-450mm without handle220-460mm without handle280-560mm without handle
Paper Tube Length191-350mm with handle 280-430mm with handle280-550mm with handle280-550mm with handle320-650mm with handle320-650mm with handle
191-430mm without handle280-510mm without handle280-600mm without handle280-600mm without handle320-770mm without handle320-770mm without handle
Bottom Width Of Paper Bag50-120mm80-180mm90-200mm90-200mm90-260mm90-260mm
Paper roll width290/370-710mm490/590-1050mm510/610-1230mm510/610-1230mm650/690-1470mm770-1670mm
Machine Speed150pcs/min150pcs/min150pcs/min150pcs/min130pcs/min100pcs/min
Total Power32kw32kw34kw34kw34kw34kw
Machine Weight13000kgs16000kgs18000kgs18000kgs21000kgs22000kgs
Machine Dimensions12000X5000X2500mm14000X6000X2500mm15000X6000X2500mm15000X6000X2500mm16000X6000X3500mm16000X6000X3500mm
