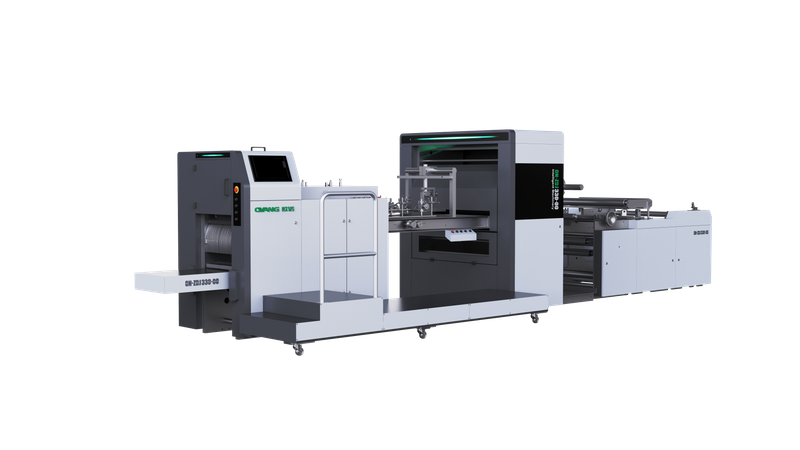

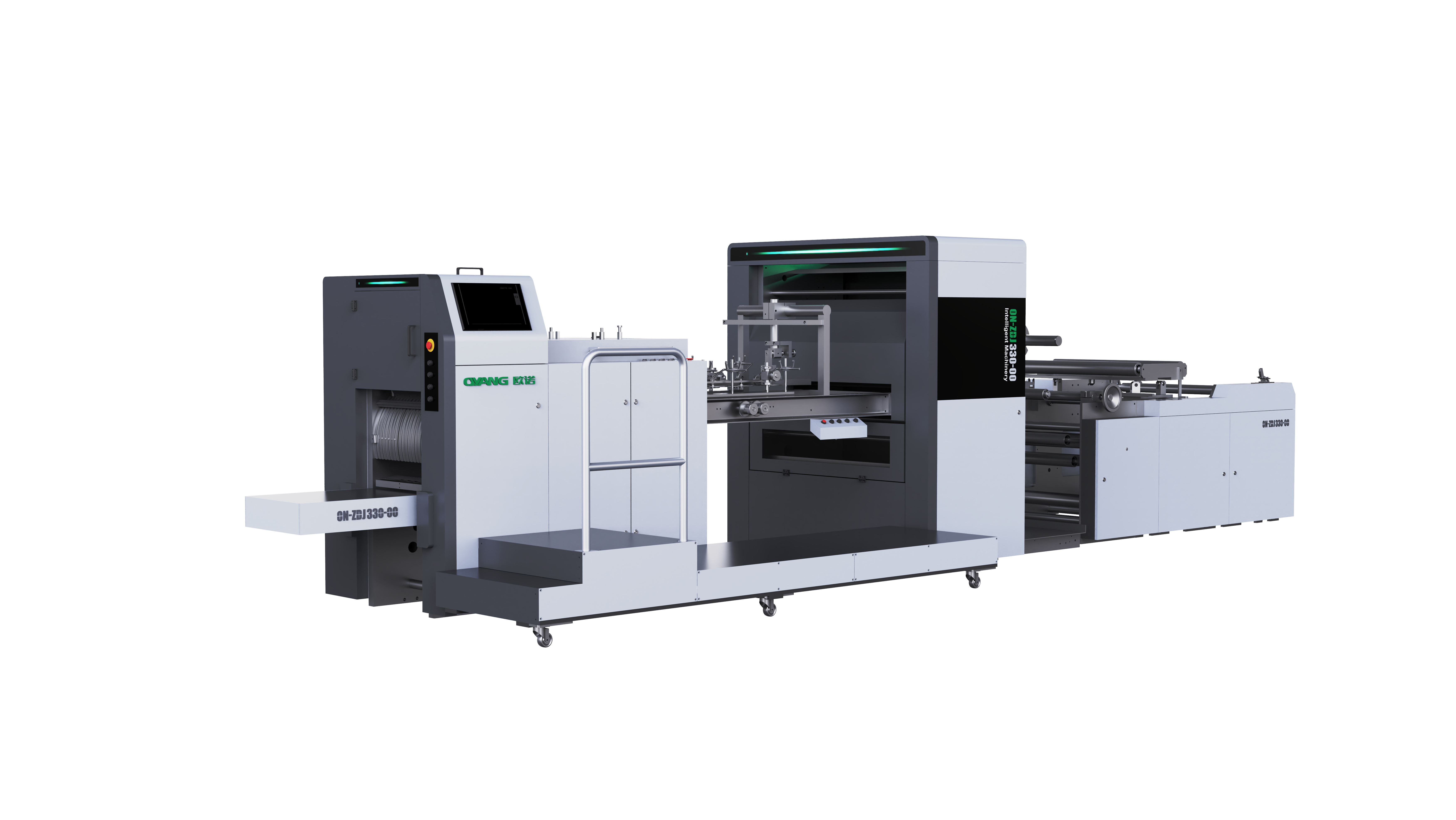

OYANG16C Roll-Fed Sharp Bottom Paper Bag Machine
OYANG16C Roll-Fed Sharp Bottom Paper Bag Machine
OYANG16C Roll-Fed Sharp Bottom Paper Bag Machine
OYANG16C Roll-Fed Sharp Bottom Paper Bag Machine
OYANG16C Roll-Fed Sharp Bottom Paper Bag Machine
OYANG16C Roll-Fed Sharp Bottom Paper Bag Machine
OYANG16C Roll-Fed Sharp Bottom Paper Bag Machine
OYANG16C Roll-Fed Sharp Bottom Paper Bag Machine
OYANG16C Roll-Fed Sharp Bottom Paper Bag Machine
OYANG16C Roll-Fed Sharp Bottom Paper Bag Machine
OYANG16C Roll-Fed Sharp Bottom Paper Bag Machine
OYANG16C Roll-Fed Sharp Bottom Paper Bag Machine
This machine is designed to manufacturer sharp bottom paper bag from paper roll, and it is suitable for kraft paper, ribbed kraft paper, grease-proof paper,coated paper, medico paper &etc.By implementing steps including roll feeding,side gluing,perforating, tube forming,tube cutting off.Bottom folding and gluing, finished bag collecting within a fully automatic process, can effectively save labor costs. It has advantage of easy operation, high efficiency, more steady, It is an ideal machine for make different kind of paper bag. snack paper bag,food paper bag. bread paper bag. dry fruit paper bag and eco-friendly paper bag.
  • OYANG 16-C SERIES

  • Oyang

库存: 0
Add to Basket
Inquire

Product Application


V bottom paper bag machine is designed to manufacturer sharp bottom paper bag from paper roll,and it is suitable for kraft paper,ribbed kraft paper,grease-groof paper,coated paper,medico paper&etc.

By implementing step including roll feeding,side gluing,perforating,tube forming,can effective save labor costs,it has advantage of easy operation,high efficiency,more steady.V bottom paper bag machine is applied to produce paper bags for fast food restaurant, grocery stores, etc.


Product Advantages


 High Production Efficiency

Machine Operation Steadily



Convenient Operation

Reduce Labor Costs


Model No.C270C330
Paper Thickness Range300-100GSM300-100GSM

Paper Bag Width Range

80-270mm80-350mm

Paper Bag Length Range

100-380mm

120-720mm

Side Folding Range

0-60mm0-60mm
Production Precision±0.2mm±0.2mm
Machinery Speed150-500pcs/min150-500pcs/min
Maximum paper roll Width900mm1000mm
Maximum paper roll Diameter1500mm1500mm
Total Power16KW16KW
Machine Weight5000KGS5500KGS
Machine Colorwhite or otherwhite or other
Machine Size7300x2000x1850mm7700x2000x1900mm
