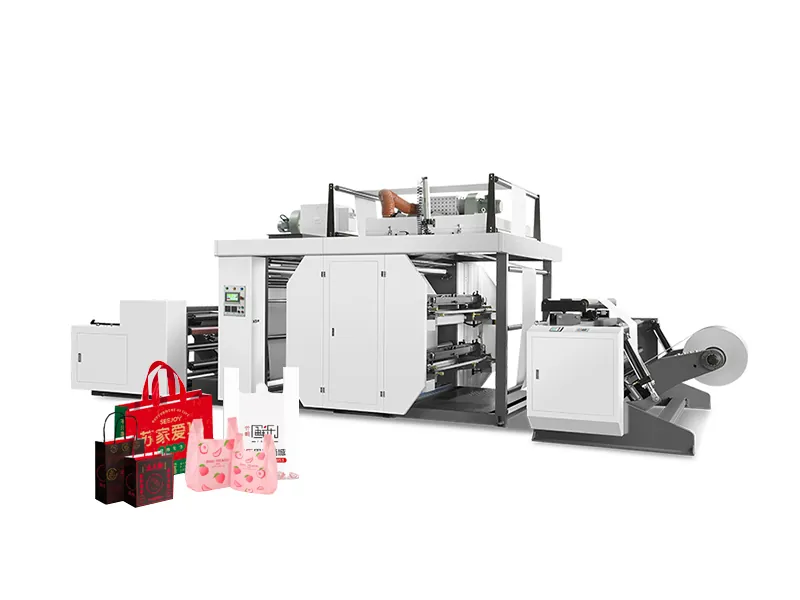

YTB Series Stack Type High Speed Flexographic Printing Machine

Name: YTB Series Stack Type High Speed Flexographic Printing Machine
Brand: Oyang
Rating: 5.0 (88 reviews)

The stack flexographic printing machine is suitable for printing such packing materials as paper , non-woven etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, non-woven bag, vest bag and clothes bag, etc..

Model:
YTB-61200
Brand:
Oyang

Availability:

Quantity:



Inquire Add to Basket

Application Field

Product Parameter

Video

Wide application field

The stack flexographic printing machine is suitable for printing such packing materials as polyethylene plastic ,paper , non-woven etc.

Maternal and infant

Medical industry

drinking water

Drinking water

Fast food

Fruit and vegetable

Paper straws

Household goods

Snack packaging

Toiletries

Technical Specification
Model	YTB-61200
Material Feeding Width	1200mm
Max Printing Width	1160mm
Colors	6colors
Material	paper
Thickness of plate	1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm Customized is available
Printing length	Standard is 400mm，Customized is available from 300-1000mm
Printing speed	80-100m/min
Register precision	±0.3mm
Heating method	Electricity heating
Max.unwind/rewind dia.	1000mm
