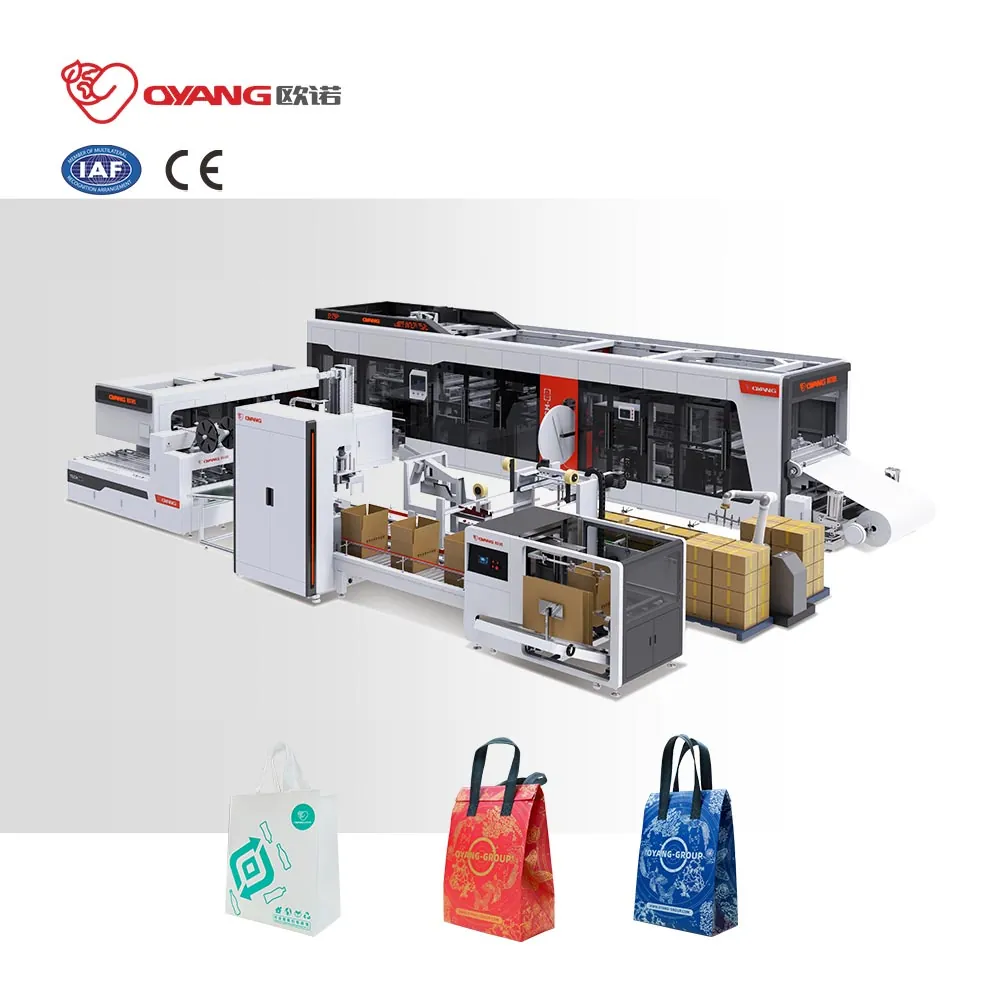

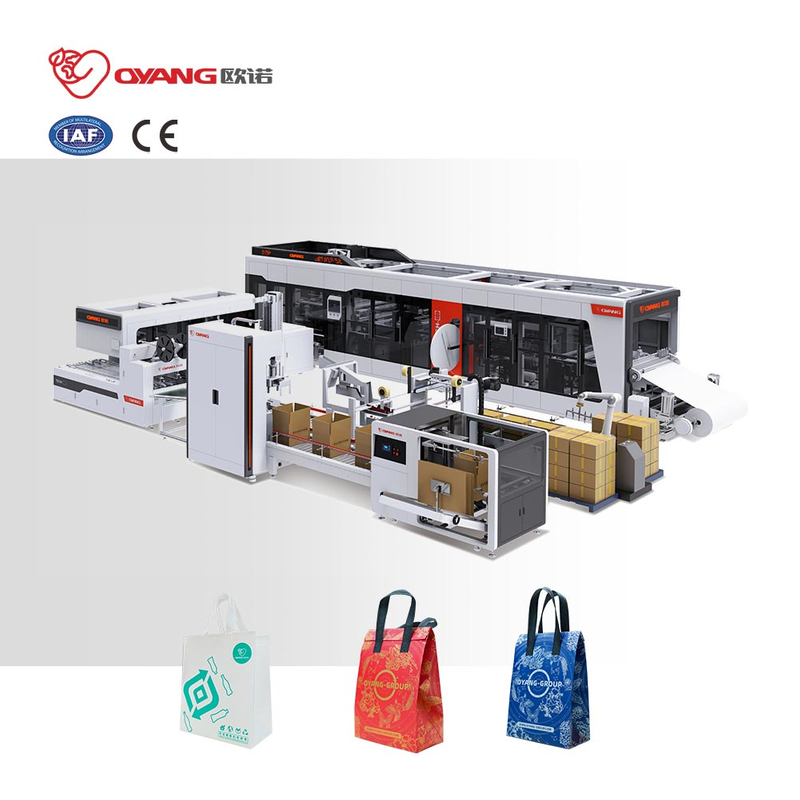

OYANG Machinery TECH 26 Automatic Non-Woven Box Bag Making Machine with Handle Online
OYANG Machinery TECH 26 Automatic Non-Woven Box Bag Making Machine with Handle Online
OYANG Machinery TECH 26 Automatic Non-Woven Box Bag Making Machine with Handle Online
OYANG Machinery TECH 26 Automatic Non-Woven Box Bag Making Machine with Handle Online
OYANG Machinery TECH 26 Automatic Non-Woven Box Bag Making Machine with Handle Online
OYANG Machinery TECH 26 Automatic Non-Woven Box Bag Making Machine with Handle Online
OYANG Machinery TECH 26 Automatic Non-Woven Box Bag Making Machine with Handle Online
OYANG Machinery TECH 26 Automatic Non-Woven Box Bag Making Machine with Handle Online
OYANG Machinery TECH 26 Automatic Non-Woven Box Bag Making Machine with Handle Online
OYANG Machinery TECH 26 Automatic Non-Woven Box Bag Making Machine with Handle Online
OYANG Machinery TECH 26 Automatic Non-Woven Box Bag Making Machine with Handle Online
OYANG Machinery TECH 26 Automatic Non-Woven Box Bag Making Machine with Handle Online
LEADER with printed and without printed,with laminated and without laminated, either printed or non-printed, either laminated or non-laminated, intelligent detection, automatic packing, automatically open and sealboxes, automatically palletize, lt's a very competitive non-woven bag making machine which uses less labor and has less cost but higher efficiency.
  • Tech 26

  • OYANG

库存: 0
Add to Basket
Inquire


Tech Series is specifically designed for the large - scale production of take-out food bags, milk tea cooling bags, and other similar products. It is an essential model for building a modern intelligent factory and the top choice for the factories of the future.


It has the following six major advantages:

1. It can run at a high speed of 100 pieces per minute, with a daily output capacity of up to 120,000 bags.

2. Equipped with an automatic robotic arm for bag handling and an automatic bundling function, it can save the labor cost of two bag - sorting workers.

3. The machine is equipped with an automatic one - key mold - changing function, with each mold - changing process taking only 90 seconds.

4. It is equipped with intelligent detection and waste - ejection functions to ensure the quality and finished rate of the bags.

5. It has the functions of automatic box opening, packing, box sealing, and automatic palletizing.

6. It helps you usher in a new chapter of unmanned factories.



Bag Type

袋型++


Optional Function

袋口打开方式+







Bag Making Flow

流程图


Machine Technical Data


Size Range
Gusset80-200mm
Width100-400mm
Height180-390mm
Handle370-600mm
GSM of nonwoven fabric70-120g/m2(nonwoven fabric)
70-140g/m2(laminatednonwoven fabric)
Speed90-100 pcs/min
Total PowerRated135KW
Usage
75KW
Required Air and PowerAir Pressure1.2m3 / min,1.0Mpa
Power380V,50Hz,3 Phase
Overall Size/Gross WeightOverall Size11975*7347*2797mm
Gross Weight14000KGS


Intelligent Bag Making Workflow

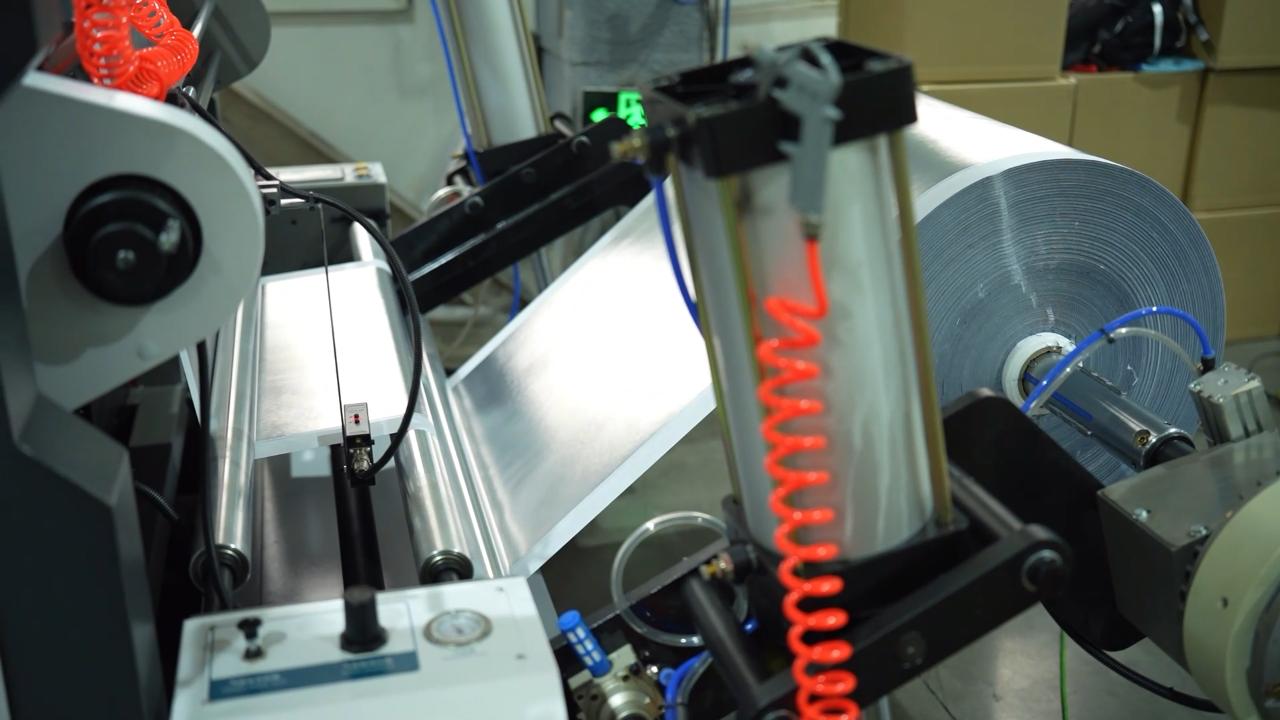

1、Non Woven Roll Feeding

1 Non Woven Roll Feeding

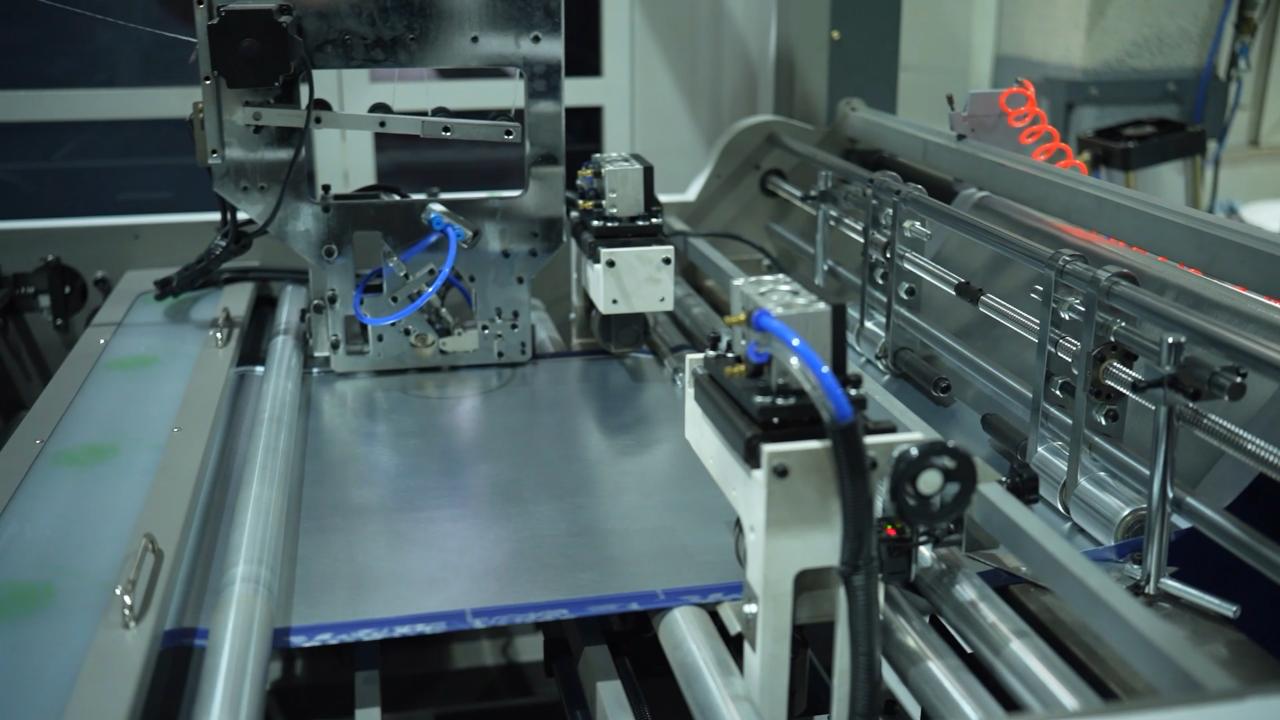

2、Folding

2 Folding

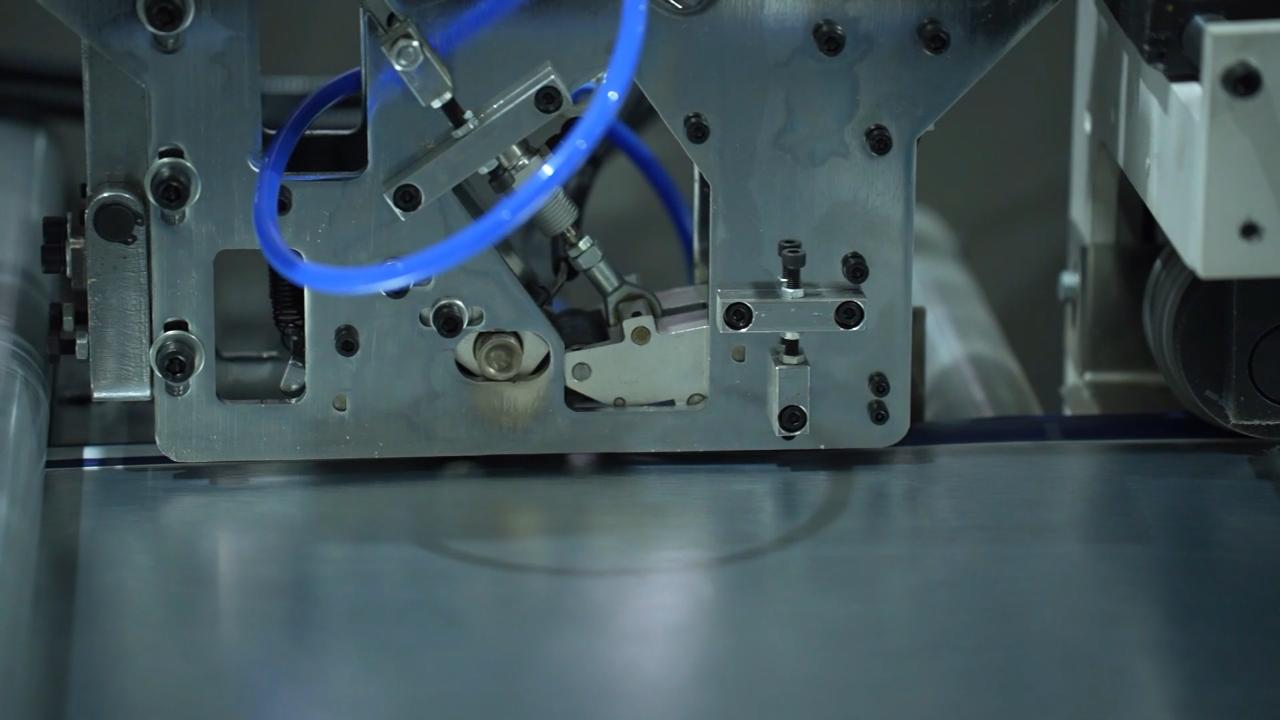

3、Indirect glue application

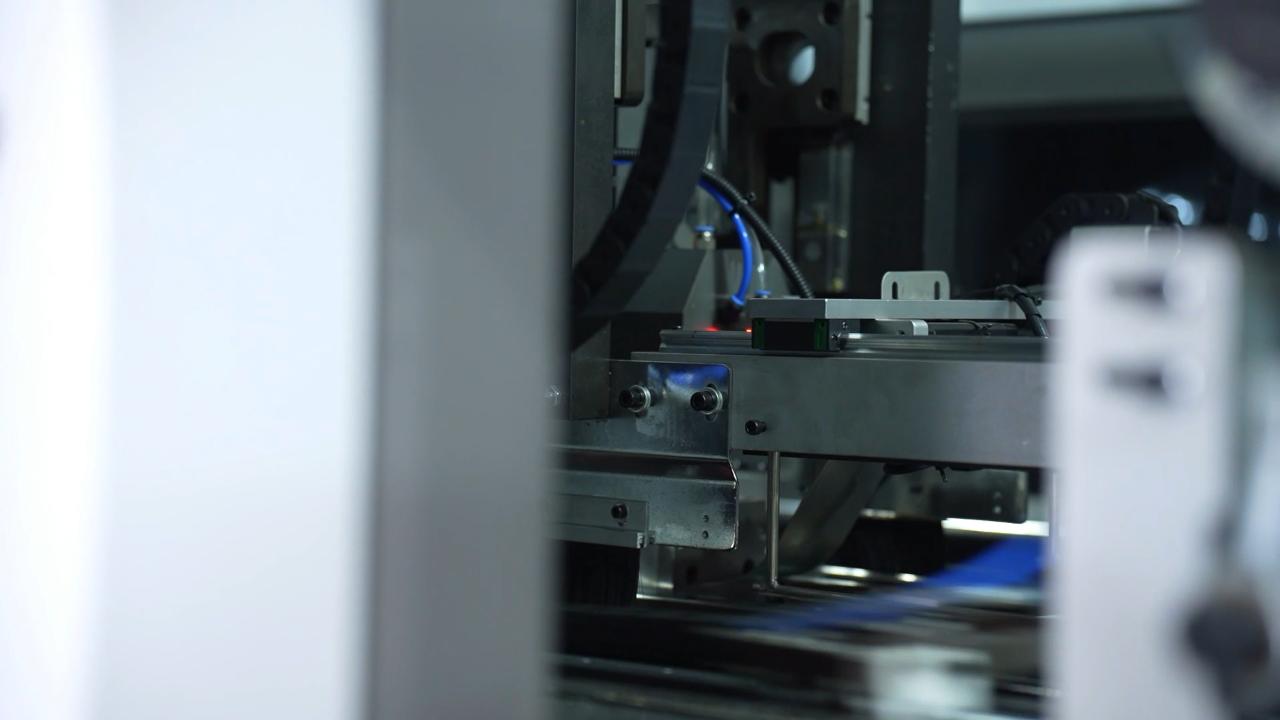

5 Box Forming

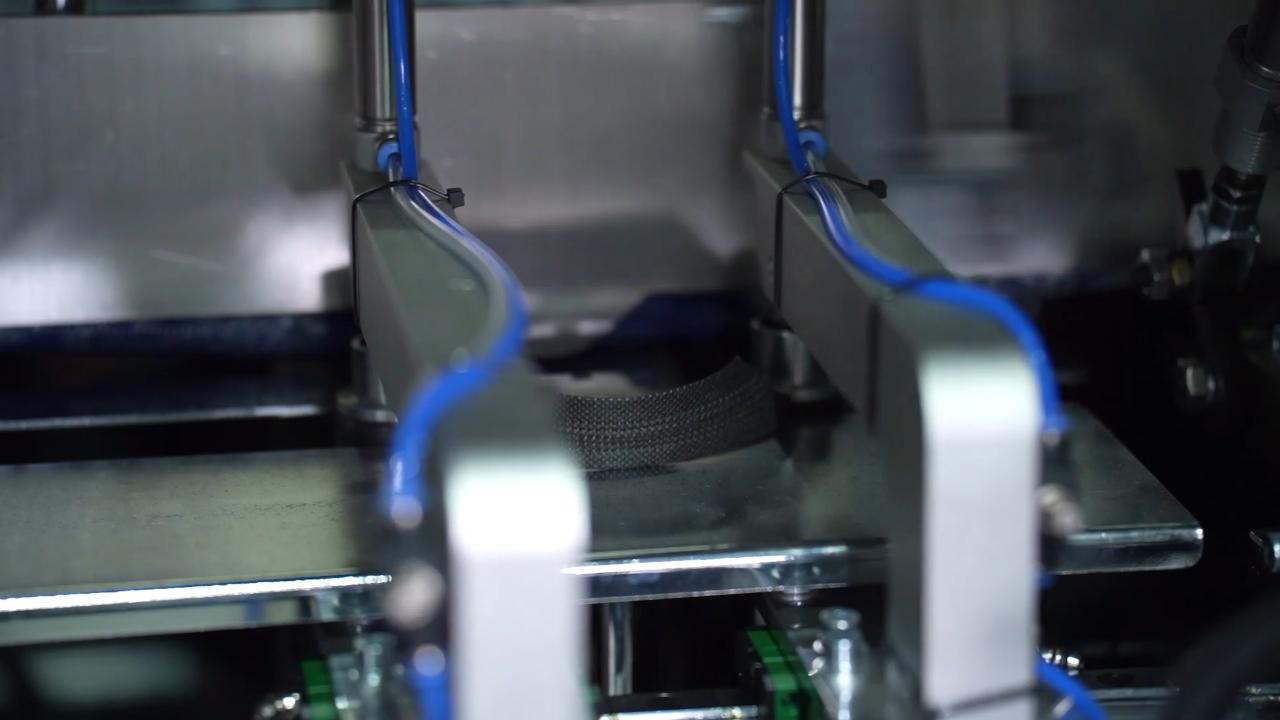

4、Handle Online Attachment

3 Indirect glue application


5、Box Forming

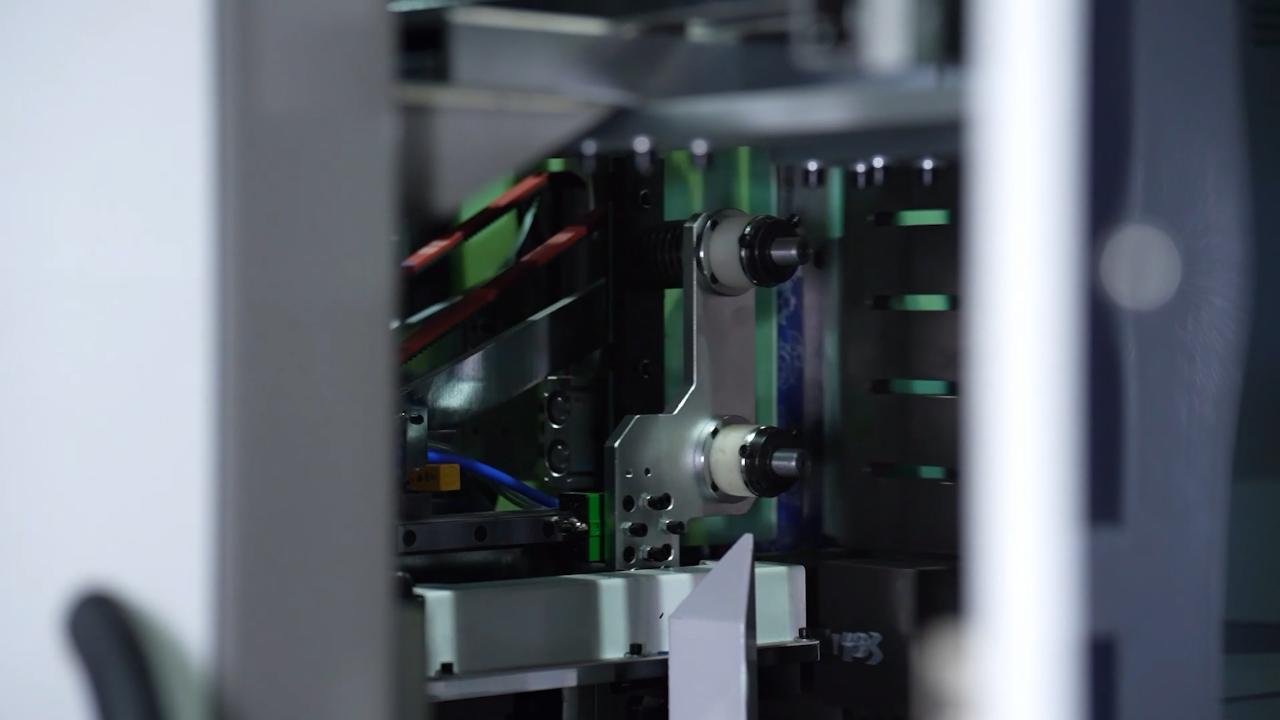

6 Ultrasonic Sealing


6、Ultrasonic Sealing

4 Handle Online Attachment

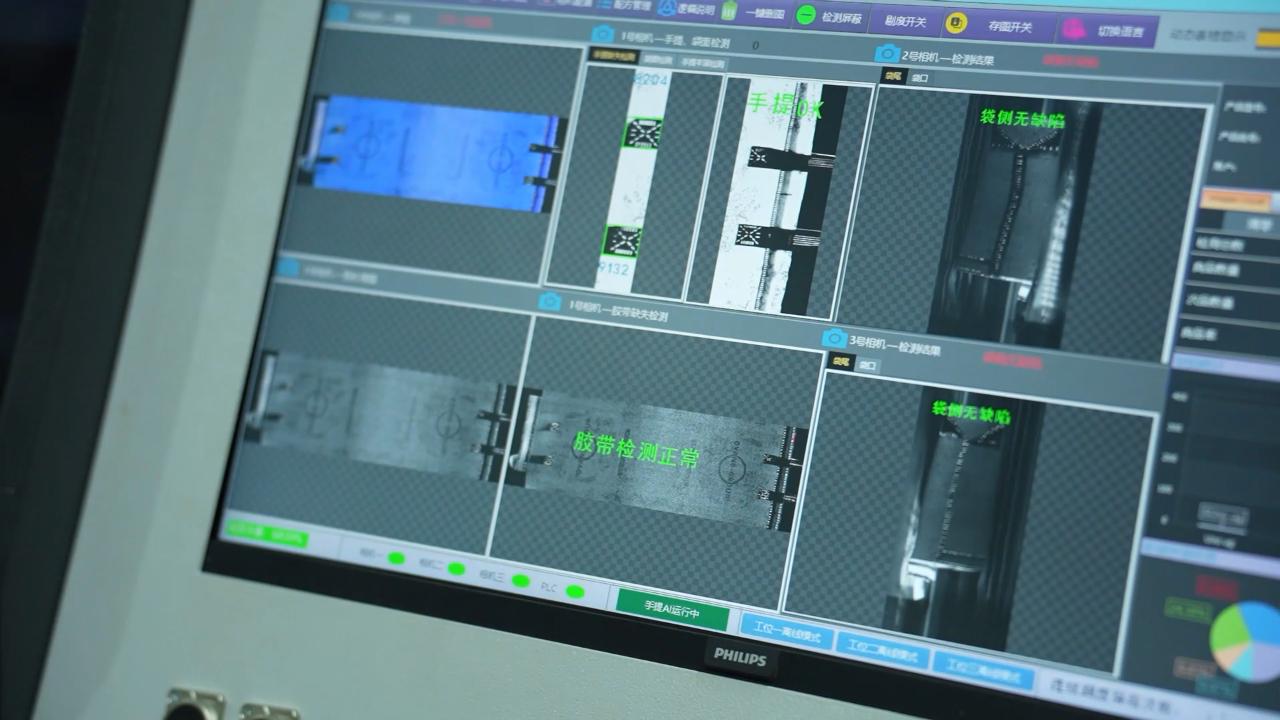

7、Smart detection

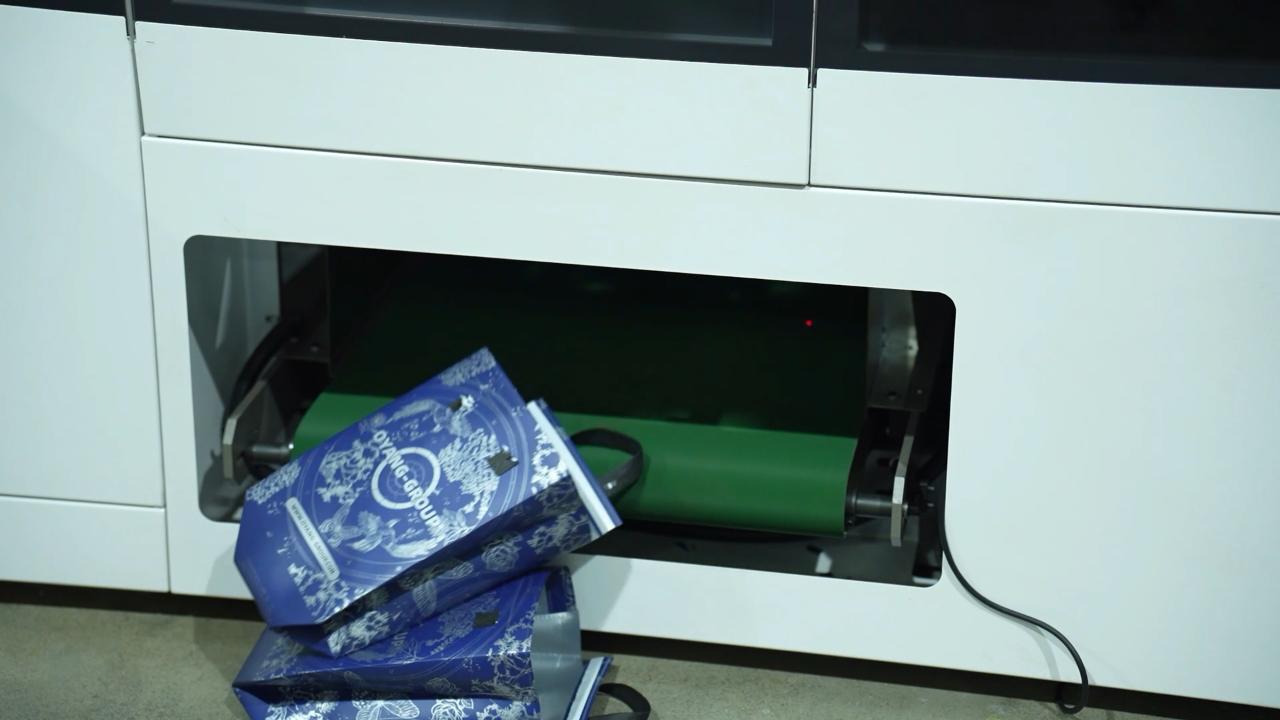

8 Auto defect rejection system


8、Auto defect rejection system

7 Smart detection

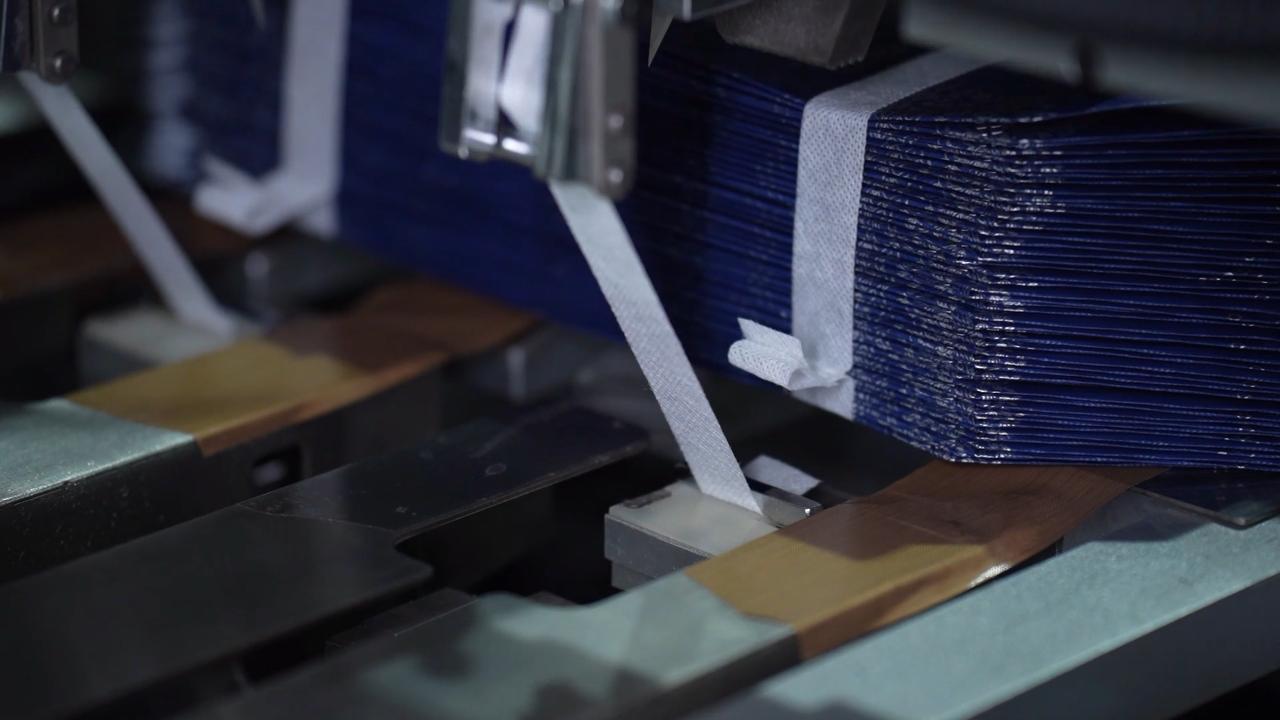

9、Automatic strapping

9 Automatic strapping

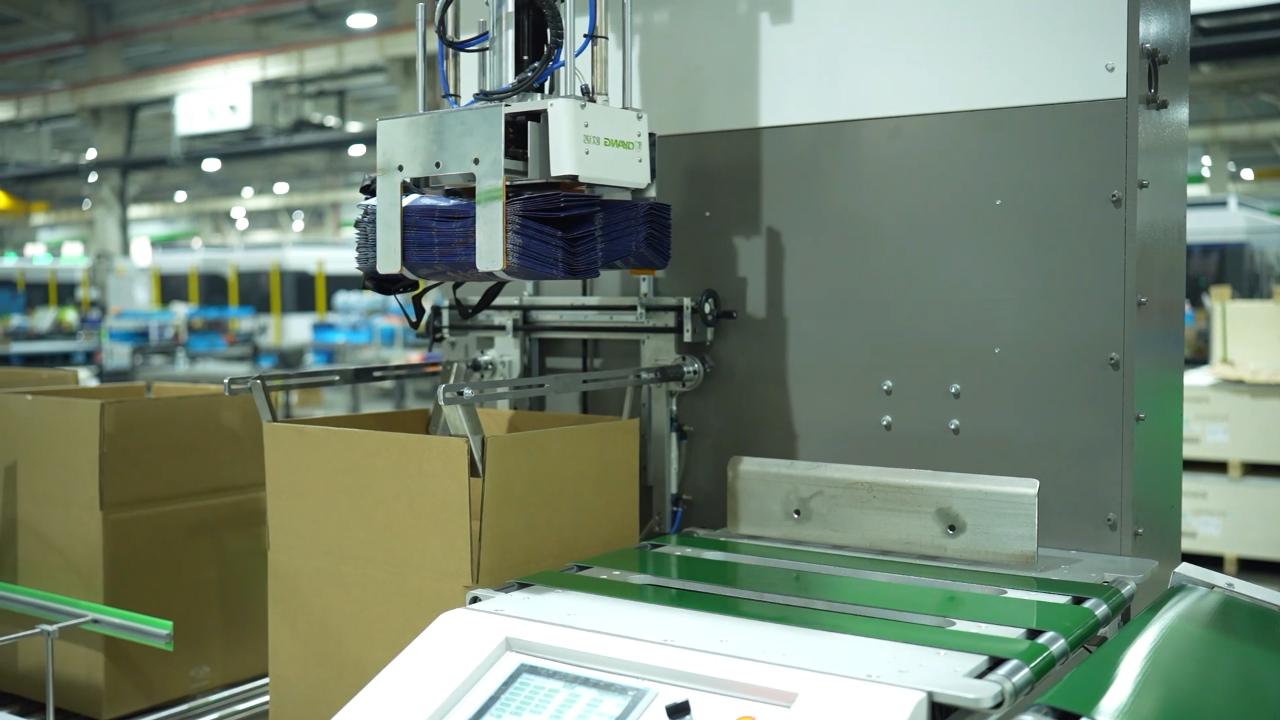

10、Automatic packing

10 Automatic packing

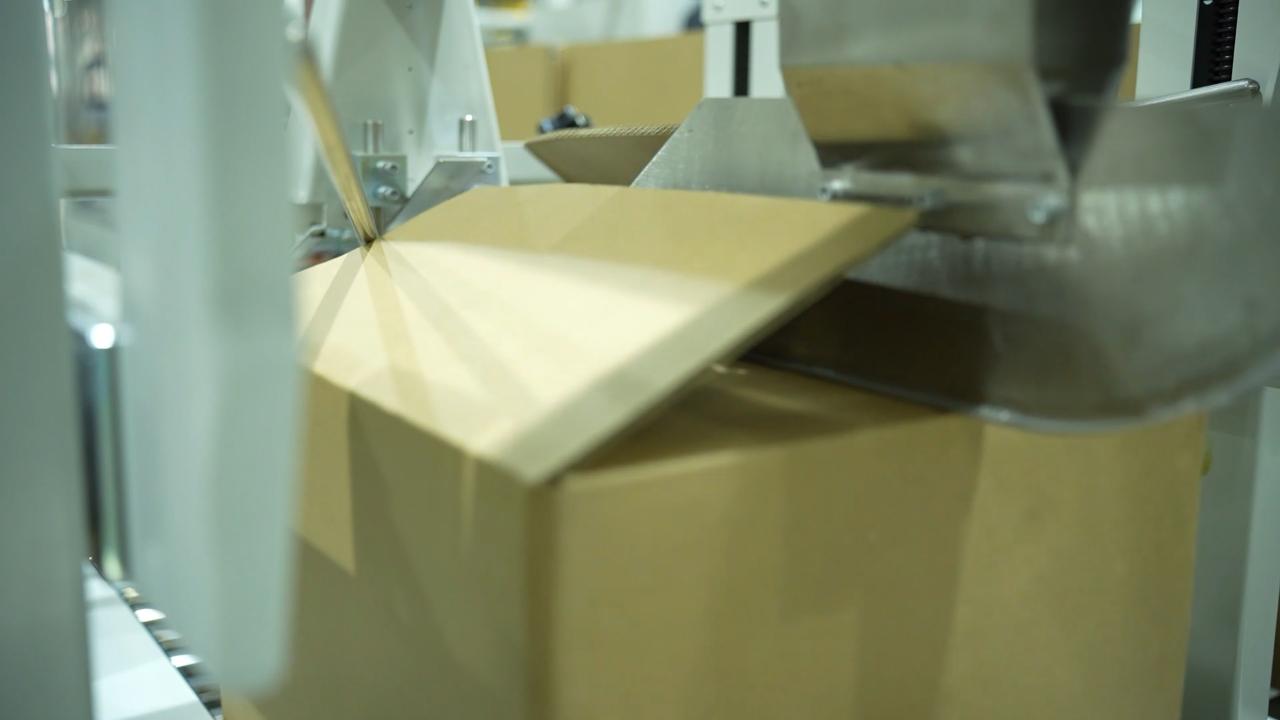

11、Automatically close

11 Automatically close

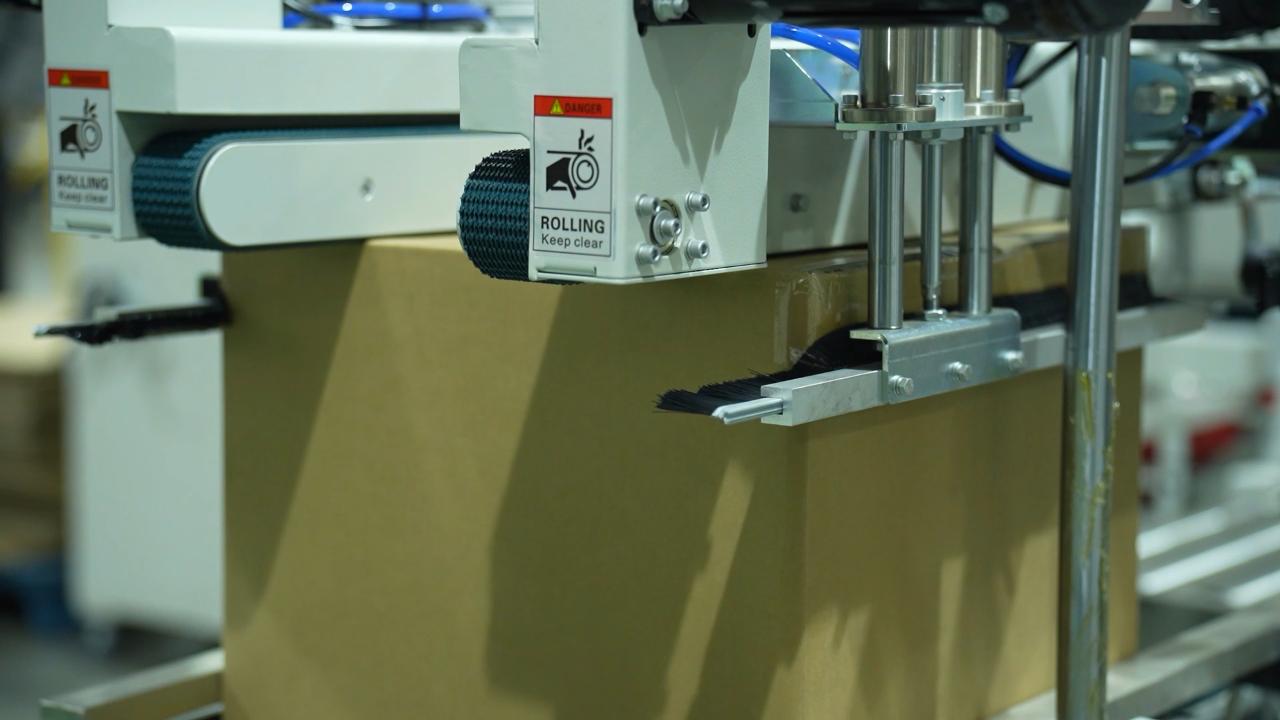

12、Automatically seal boxes

12 Automatically seal boxes

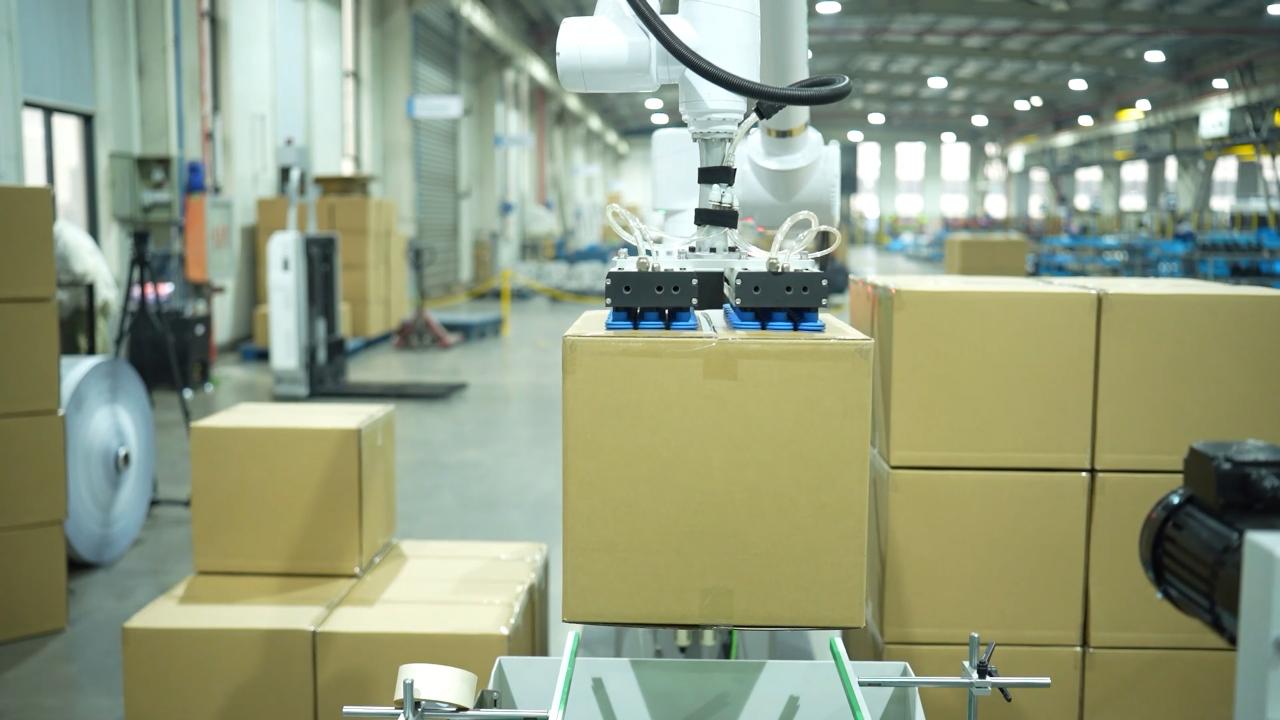

13、Automatically palletize

13 Automatically palletize
