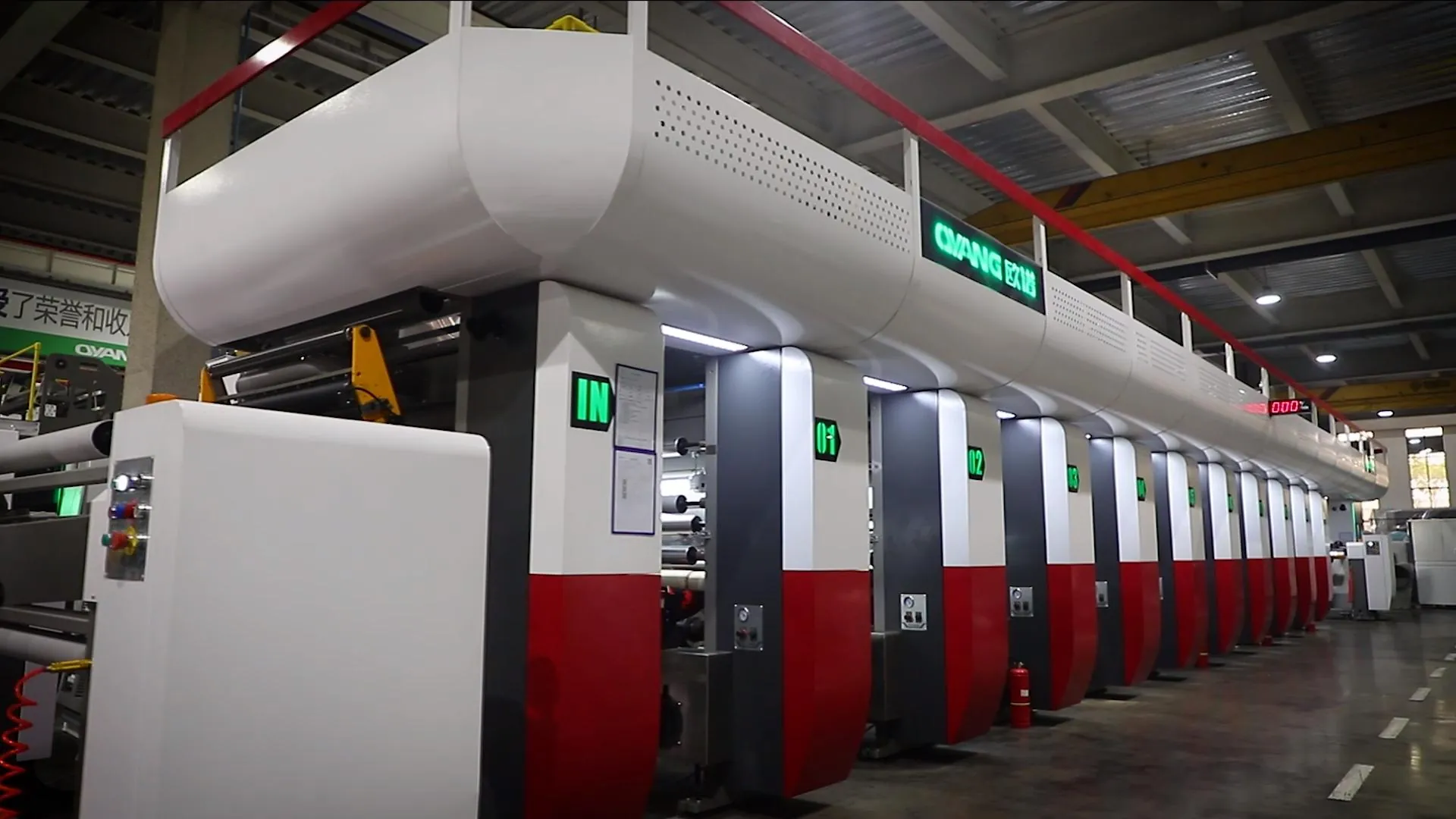

dingtu

HONOR 4.0 PLUS Intelligent Rotogravure Printing Machine

HONOR 4.0 PLUS

HONOR 4.0 PLUS Intelligent Rotogravure Printing Machine

Discover the OYANG HONOR 4.0 PLUS high-speed rotogravure printing machine with servo control, tower double-station unwinding and ±0.05 mm registration accuracy. Ideal for flexible packaging film, food bags, BOPP/PET. Request a quote today

Play Full Video

HONOR 4.0 PLUS Intelligent Rotogravure Printing Machine

400 M/Min Printing Speed • Servo-Driven Precision • ±0.05 mm Registration

速度400米每分钟
The OYANG HONOR 4.0 PLUS sets the benchmark in rotogravure printing for flexible packaging. Featuring a tower-type double-station unwinding system, advanced servo electric drive, and ultra-precise registration within ±0.05 mm, this press enables high-volume production with consistent print quality and minimal downtime. CE-certified safety equipment, environmental-efficient drying systems, and one-key automatic start make it a smart choice for converters demanding reliability and speed.

5 Key Advantages of the HONOR 4.0 PLUS

速度400米每分钟

400 M/Min Printing Speed

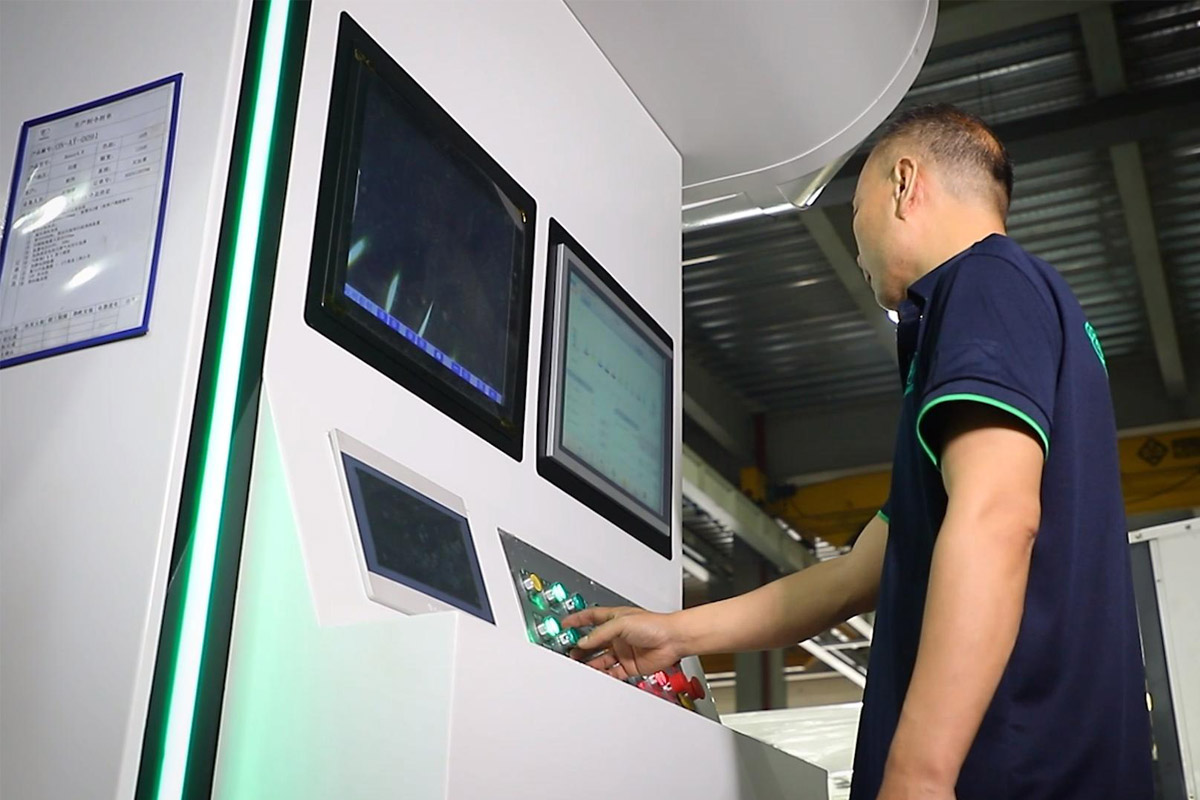

开机

±0.05 MM REGISTER ACCURACY

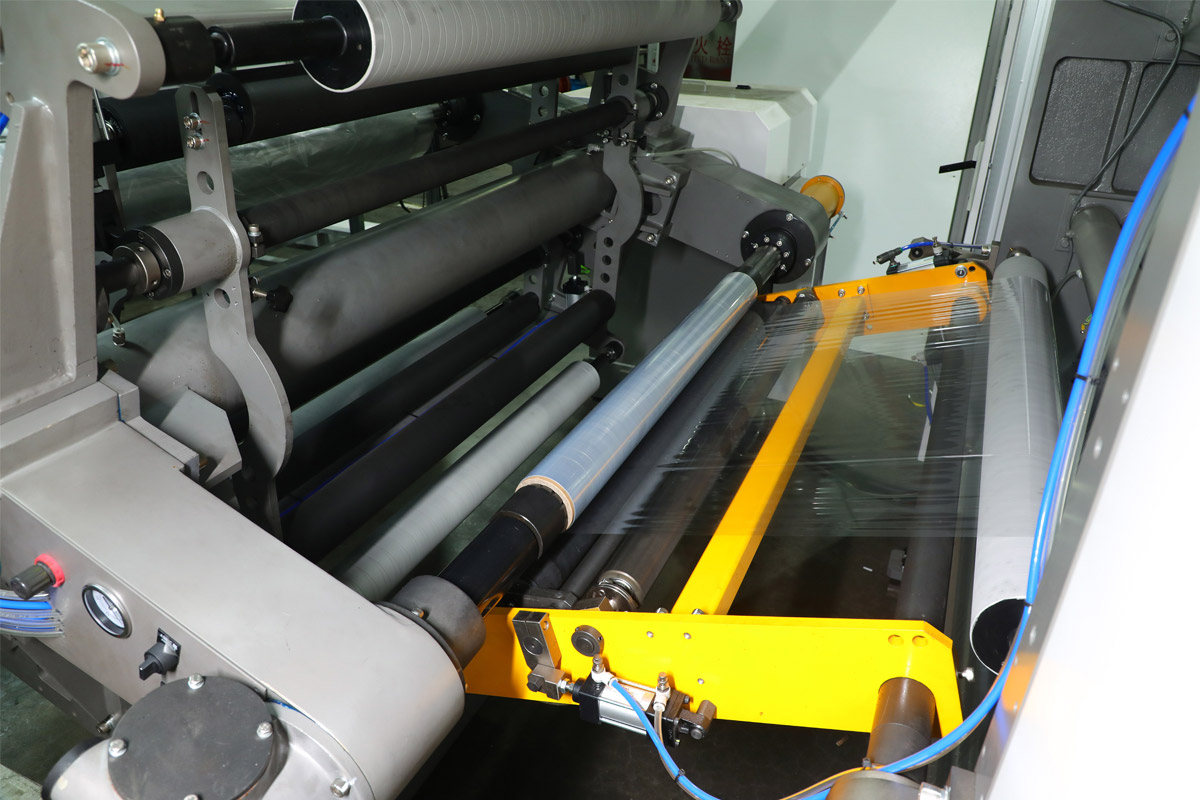

放卷裁刀

ELS SYSTEM

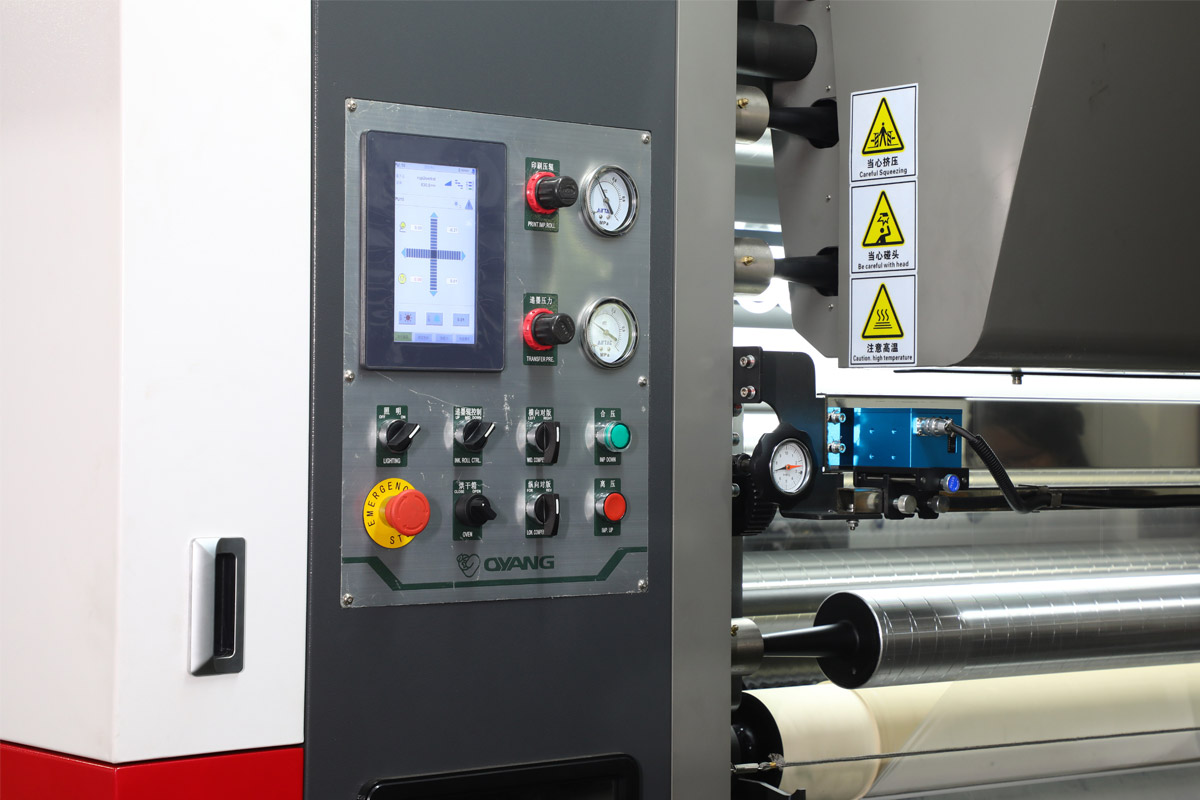

套准操作界面

PRE-REGISTRATION & JOB MEMORY

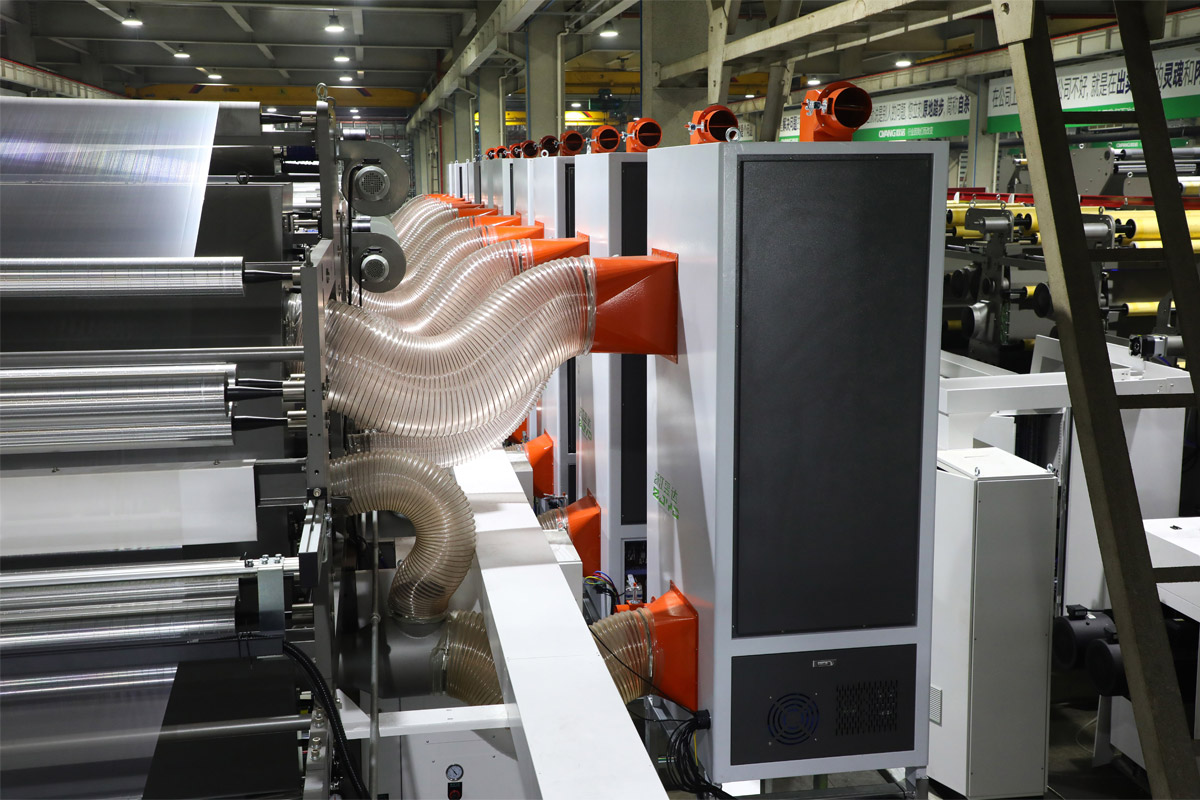

4.Drying & Cooling Unit b

ENERGY-SAVING & MULTI-HEATING SYSTEM

Technical Data – HONOR 4.0 PLUS

Please refer to the detailed specification table below. For customized configurations
(e.g., color units 5-12, printing width up to 1250 mm, extra modules) please contact us for tailored solutions.
ParameterSpecification
Printing Width850 / 1050 / 1250 mm
Printing Colors5-12 Colours
Maximum Mechanical SpeedUp to 400 m/min
Registration Accuracy±0.05 mm
Suitable MaterialsPET, BOPP, CPP, PE, Paper, Al-foil
Power Supply380 V / 50Hz
Maximum diameter of unwindingPhi 800 mm
Maximum diameter of windingPhi 800 mm
Receiving and discharging paper coreΦ76mm x Φ92mm (3")
Tension range3-30KgF
Tension accuracy≤± 0.3KgF (full amplitude accuracy)
Heating modeElectric heating/steam/natural gas/hot oil, etc
Heating temperatureMax.80℃ (room temperature 20℃)
Temperature control accuracyPlus or minus 2 ℃
Total machine powerAbout 125-200kW (main)(Variable from 5 to 10 color groups）
Machine dimensionsApprox. 20000 (L)*5100 (W)*3920 (H) ( mm)
Specifications may vary depending on custom configuration and handle type.

Production Process Flow

From roll feeding to full-colour print and rewinding, the HONOR 4.0 PLUS manages each step with intelligent precision.
Operators can monitor via HMI touchscreen, adjust parameters instantly, and benefit from rapid job recall.

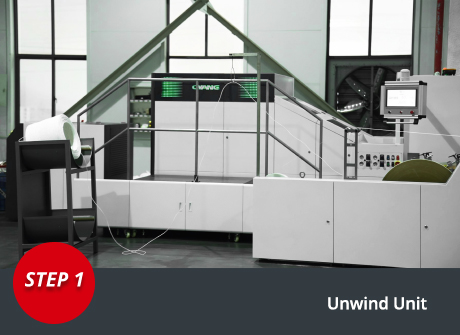

1
2

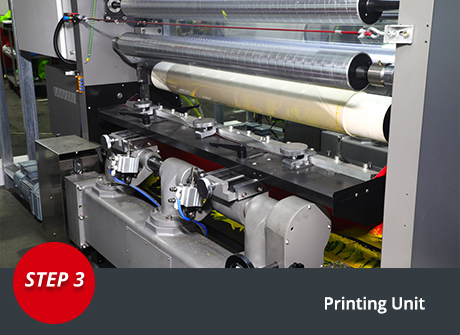

3
4
4b
5

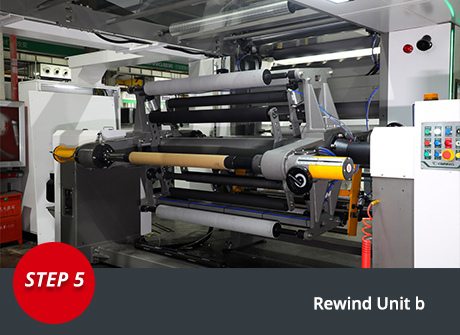

5b
The entire process —from handle production to bag forming— is performed inline with servo-driven synchronization, ensuring precision and efficiency without manual intervention

Suitable Materials & Industry Applications

The machine is ideally suited to printing on flexible films, aluminum foils, paper laminates and other substrates for food packaging, beverage pouches, luxury bags, labels, and more. Its high colour saturation and durable cylinder design make it a top choice for premium converters.

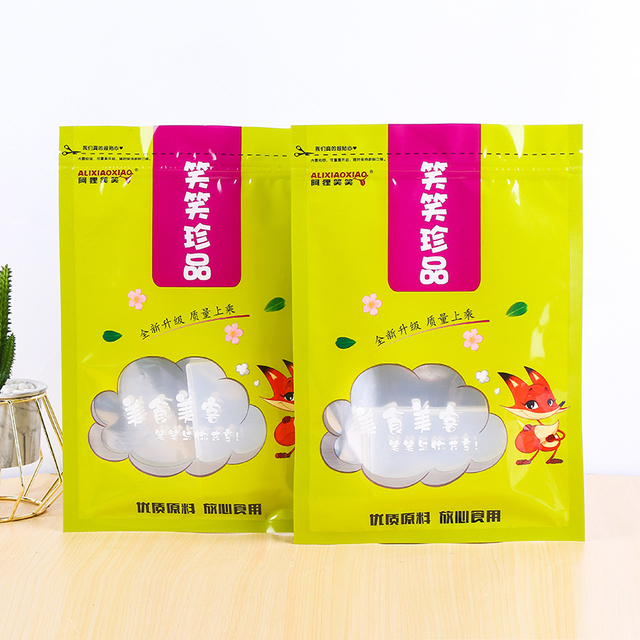

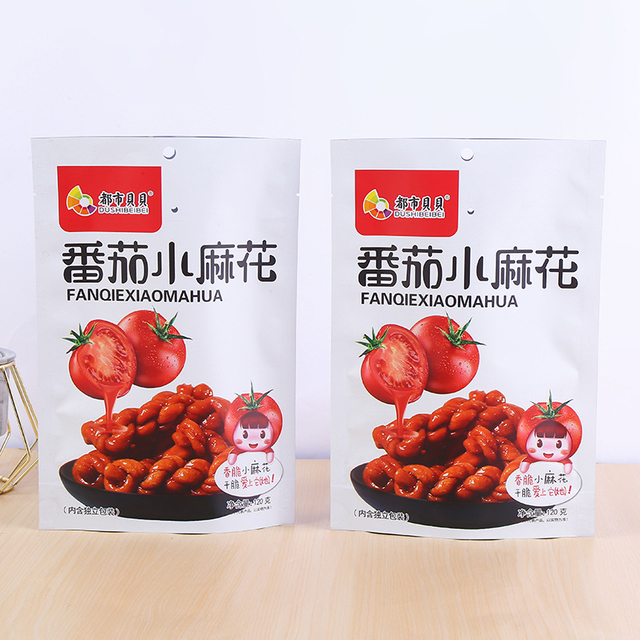

BOPP Film Printing1
BOPP Film Printing2
Bopp Film Printing

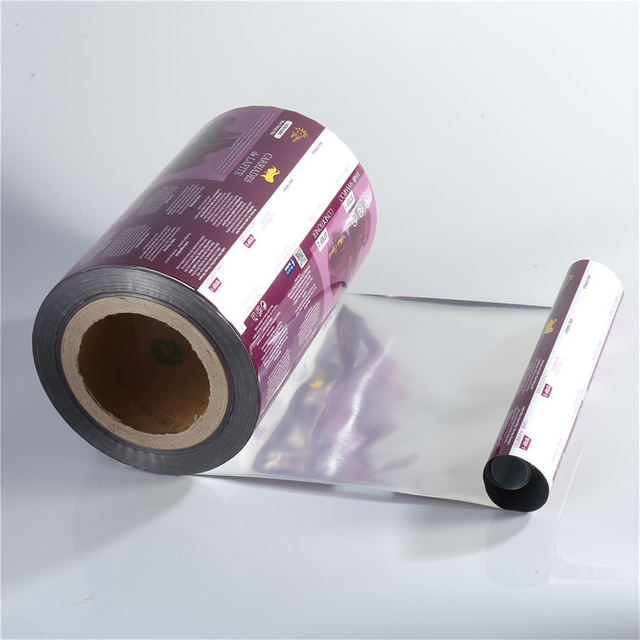

Aluminum Foil Printing2
Aluminum Foil Printing1
Aluminum Foil Printing
Paper Lamination
Paper Lamination

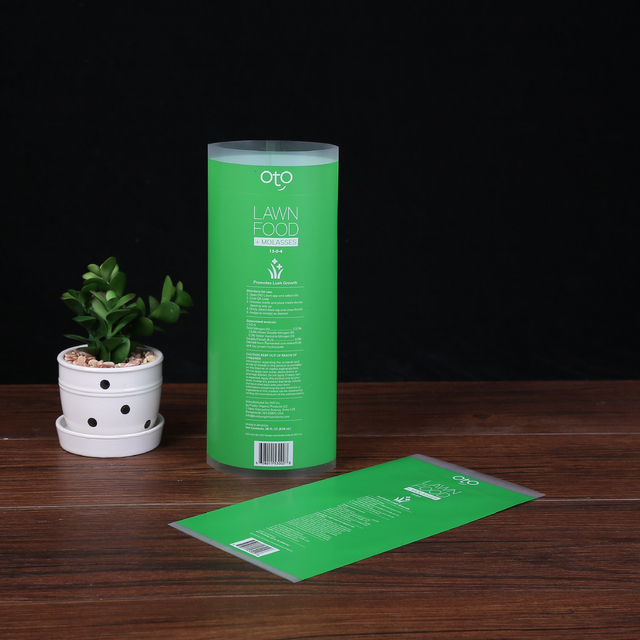

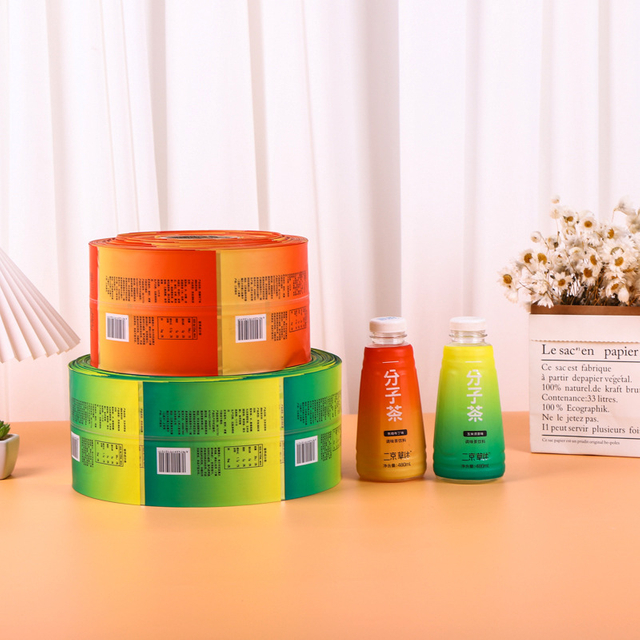

PET Film3
PET Film1
PET Film2
Pet Film

Related Products & Upgrade Options

Expand your press capability with OYANG’s full ecosystem – from smaller HONOR 3.0 models to additional colour units，quick-change impression rollers.

Trusted by Worldwide

OYANG rotogravure presses to achieve exceptional print quality and operational efficiency.Testimonial Examples:
逗号 1
Switching to the HONOR 4.0 PLUS cut our registration loss to under 100 m and boosted uptime dramatically.
– Flexible Packaging Converter, Turkey


逗号 1 (1)
The servo-driven units and quick job recall have reduced our setup time by 40%.
– Label Printers, Poland


逗号 1
Film processing stability improved significantly under continuous 24/7 operation.
– Food Packaging Manufacturer, India


Frequently Asked Questions

Q: What is the standard delivery time for this machine?

A: Typically 90 days after deposit; expedited options available.

Q: Can the machine handle both film and paper substrates?

A: Yes, it’s compatible with PET, BOPP, CPP, PE, paper and aluminum foil.

Q: What after-sales service is provided?

A: Remote diagnostics + on-site engineer support (where permitted) + 24 h spare parts guarantee

Industry Insights: The Future of Gravure Printing

Gravure printing continues to evolve with automation, sustainability, and precision control reshaping modern packaging production. As converters demand higher efficiency and quality, OYANG’s HONOR 4.0 PLUS represents the next generation of intelligent printing technology — merging servo accuracy with eco-friendly innovation.
