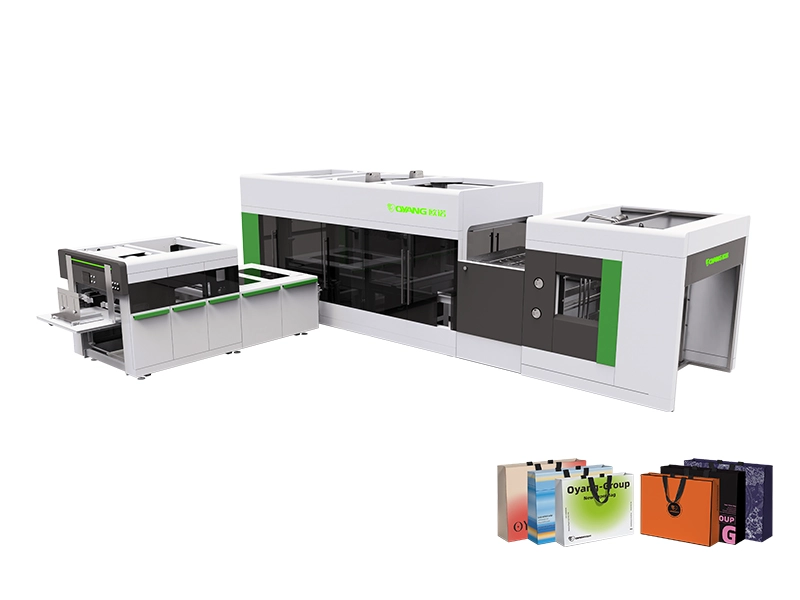

Fully Automatic No-Crease Sheet Feeding Paper Bag Making Machine

Machine Description

Leader Box Bag Machine is a world first set 3D one time forming machine, which start to developed since 2009 and successfully coming at October 2013 year, Youtube and Facebook have all records!

Till now, it has obtained 12 invention patents and more than 30+ new-use patents. More than 1000+ customers have been using our equipment in China domestic market, and exported to more than 120+ countries, accounting for more than 90% of the market sales share of this equipment.

This machine one time forming white cardboard and gold and silver cardboard square bottom paper box bag, with a fast mold change time of 20 minutes, the equipment runs efficiently and stably, and is widely used in high-quality gift bags, advertising packaging, and other packaging applications!

Equipment adopts full-servo bus control
Automatic flat rope threading device
Quick mold change function
Feeding of 2,000-meter rolled flat rope
Hot melt pressure sensitive adhesive
M bottom bag folding device
The bag mouth is fixed with glue on the inside after the bag mouth is closed

Process Flow

Technical Parameter

Item	Specification
Roller width	620-1150mm
Bag making speed	30-50pcs/min
Bag Width	220-500mm
Bag Height	220-430mm
Gusset	100-200mm
Power supply	380V
Total power	50KW
Rated power	30KW
Overall size	L 10000* W 6500* H 2700mm
Weight of Machine	11000KGS
Material Thickness	180-300g
Sheet Material Width	620-1150mm
Sheet Material Length	340-720mm
Suitable Material	White Cardboard/ Gold and Silver Cardboard

Market Backgroud

Flat rope paper bags and small batch orders stil rely on pure handmade production;
Most of the paper bag processes on the market are side edge sealing + bottombonding, and the bottom is the main stress-bearing part of the paper bag, which easilyleads to bottom degumming;
When the bag is folded flat, there is a waistline on the front and a waistline with largecharacters on the side. The bottom is multi-loyered and the lines are complicatedwhich destroys the integrity of the paper bag and the printed pattern;
There is no bonding on the inside of the bag opening, and the inside is elastic, whichaffects its use.

Highlights Of New Technology

Solve The Problems With The Existing Paper Bag Manufacturing Processes

-We offer a "fully automated U-shaped bag-making process with center sealing on both sides of the package". The threading of flat ropes and the bag-making are completed in an integrated and automated manner.

Solve The Problem Of Bottom Degumming

-Form a U shape with the bottom as the center. Seal at the center along the fold lines on both sides. The bottom is a whole flat bottom.

Solve The Problem Regarding The Aesthetics Of The Bag Surface

-The front is neat and generous, and there is only one fold line on the side, which will not damage the printed pattern. The folding method is the bottom M bottom inner fold The inner fold of the bag mouth is glued into a whole, no rebound, and easy to use.

Solve the problem of the aesthetics of the bag surface

-The inner folds at the bag opening are glued together as a whole, without springing back, which is convenient for use.
