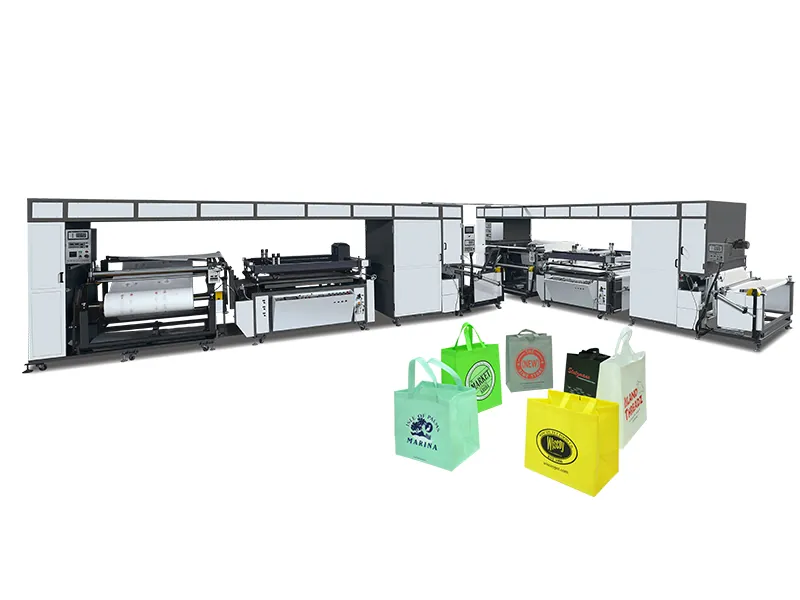

ONL-12010 II Two Color Roll To Roll Non-woven Fabric Screen Printing Machine

Name: ONL-12010 II Two Color Roll To Roll Non-woven Fabric Screen Printing Machine
Brand: Oyang
Rating: 5.0 (90 reviews)

With balanced pressure and thick ink, is suitable for above 45 gsm non woven fabric printing. More high-quality printing. The machine adopts vertical type design, it save you more room compare with the traditional horizontal type screen printing machine. It have two printing units, can printing non woven fabric automatically. Each unit have independent computer control, can separately using for single color printing. Reduce the lose of one printing unit can't running status.

Model:
ONL-12010 II
Brand:
Oyang

Availability:

Quantity:



Inquire Add to Basket

Product Parameter

SN	Item	Specification
1	Max printing size	1200x1100 mm
2	Non woven fabric roll width	1250 mm
3	Non woven fabric thickness	45-100 gsm
4	Max diameter of roller	800 mm
5	Printing speed	1500-2100 m/h
6	Power supply	380V 3P4N
7	Total power	55KW
8	Rated power	30KW
9	Overall size	L 9500 * W 7500 * H 2300mm
10	Weight of Machine	7000 KGS (40HQ*2)
11	Chromatic Printing Precision	±1 mm
