NEW WORLD B Square Bottom Paper Bag Machine Without Handle

NEW WORLD B Square Bottom Paper Bag Machine Without Handle

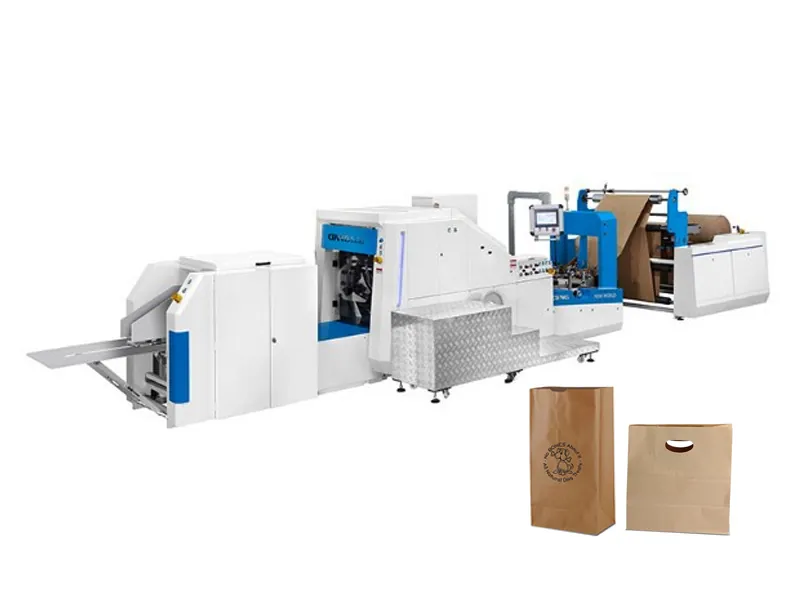

NEW WORLD B Square Bottom Paper Bag Machine

Product Application:

NEW WORLD-B series it uses paper roll in blank or printed as raw material, consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. This machine really realized the full automation production, can effectively save the labor cost.

Model:
OYANG 16 B SERIES

Availability:

Quantity:



Inquire Add to Basket

Machine Introduction

Product Parameter

Video

Paper bag by side gluing, tube forming, tube cutting, the bottom indenting, the bottom gluing, bottom forming, and finishing bag collection.The whole machine adopts a Japanese YASKAVAelectronic control system, controlled by servo motor-produced paper bag products, high accuracy, strong stability, simple maintenance, production efficiency, is the most ideal equipment for printing plants and paper bag manufacturers.

Product Advantages

Save land area

Suitable for thin paper

Stable machine operation

High production efficiency

icon

Can make different bag bottoms

Wide range of bag making dimensions

Main Technical Variables

Model New world -B220 New world -B330 New world -B400 New world -B450 New world -B460 New world -B560

Paper bag length
191-430mm 280-510mm 280-600mm 280-600mm 320-770mm 320-770mm

Paper bag width 80-200mm 150-330mm 150-400mm 150-450mm 220-460mm 240-560mm

Paper bag bottom width 50-120mm 70-150mm 90-200mm 90-200mm 90-260mm 90-260mm

Paper thickness 45-150g/m2 60-150g/m2 70-150g/m2 70-150g/m2 70-150g/m2 80-150 g/m2

Max Machine Speed 280pcs/min 220pcs/min 200pcs/min 200pcs/min 150pcs/min 150pcs/min

Paper roll width 290-710mm 470-1050mm 510-1230mm 510-1230mm 650-1470mm 770-1670mm

Roll paper diameter 1500mm 1500mm 1500mm 1500mm 1500mm 1500mm

Machine power 3 Phase,9kw 3 Phase,11kw 3 Phase,15.5kw 3 Phase,15.5kw 3 Phase,25kw 3 Phase,27kw

Machine weight 5600kg 8000kg 8000kg 9000kg 12000kg 13000kg

Machine size 8600×2600×1900 mm 9500×2600×1900 mm 9500×2600×1900 mm 10700×2600×1900 mm 12000×4000×2000 mm 13000×2600×2000 mm

Machine Introduction

Product Parameter

Video

Related Products

Oyang People Keep Innovation for
Enviromental Responsibility

Email: inquiry@oyang-group.com
Phone: +86-15058933503
Whatsapp: +86-15058933503

Contact us

More Information About Oyang Machine

content is empty!

Model	New world -B220	New world -B330	New world -B400	New world -B450	New world -B460	New world -B560
Paper bag length	191-430mm	280-510mm	280-600mm	280-600mm	320-770mm	320-770mm
Paper bag width	80-200mm	150-330mm	150-400mm	150-450mm	220-460mm	240-560mm
Paper bag bottom width	50-120mm	70-150mm	90-200mm	90-200mm	90-260mm	90-260mm
Paper thickness	45-150g/m2	60-150g/m2	70-150g/m2	70-150g/m2	70-150g/m2	80-150 g/m2
Max Machine Speed	280pcs/min	220pcs/min	200pcs/min	200pcs/min	150pcs/min	150pcs/min
Paper roll width	290-710mm	470-1050mm	510-1230mm	510-1230mm	650-1470mm	770-1670mm
Roll paper diameter	1500mm	1500mm	1500mm	1500mm	1500mm	1500mm
Machine power	3 Phase,9kw	3 Phase,11kw	3 Phase,15.5kw	3 Phase,15.5kw	3 Phase,25kw	3 Phase,27kw
Machine weight	5600kg	8000kg	8000kg	9000kg	12000kg	13000kg
Machine size	8600×2600×1900 mm	9500×2600×1900 mm	9500×2600×1900 mm	10700×2600×1900 mm	12000×4000×2000 mm	13000×2600×2000 mm
