| APPLICABLE MATERIAL | Various laminated films | ||
| PRODUCTION CAPACITY | Max. 120 CPM / cuts per min | ||
| MACHINE FOOTPRINT | 3.1 m × 29.4 m | ||
| EQUIPMENT WEIGHT | Approx. 16.8 t | ||
| CONTROL SYSTEM | PLC control method | ||
| MAIN FILM ROLL SIZE | Max. width 1,300 mm / Max. diameter 800 mm | ||
| GUSSET FILM ROLL SIZE | Max. width 330 mm / Max. diameter 300 mm | ||
| MAIN FILM UNWINDING UNIT | Horizontal pneumatic expansion shaft, power-off brake, tension control system with magnetic powder brake | ||
| GUSSET FILM UNWINDING UNIT | Horizontal pneumatic expansion shaft, tension control system with magnetic powder brake | ||

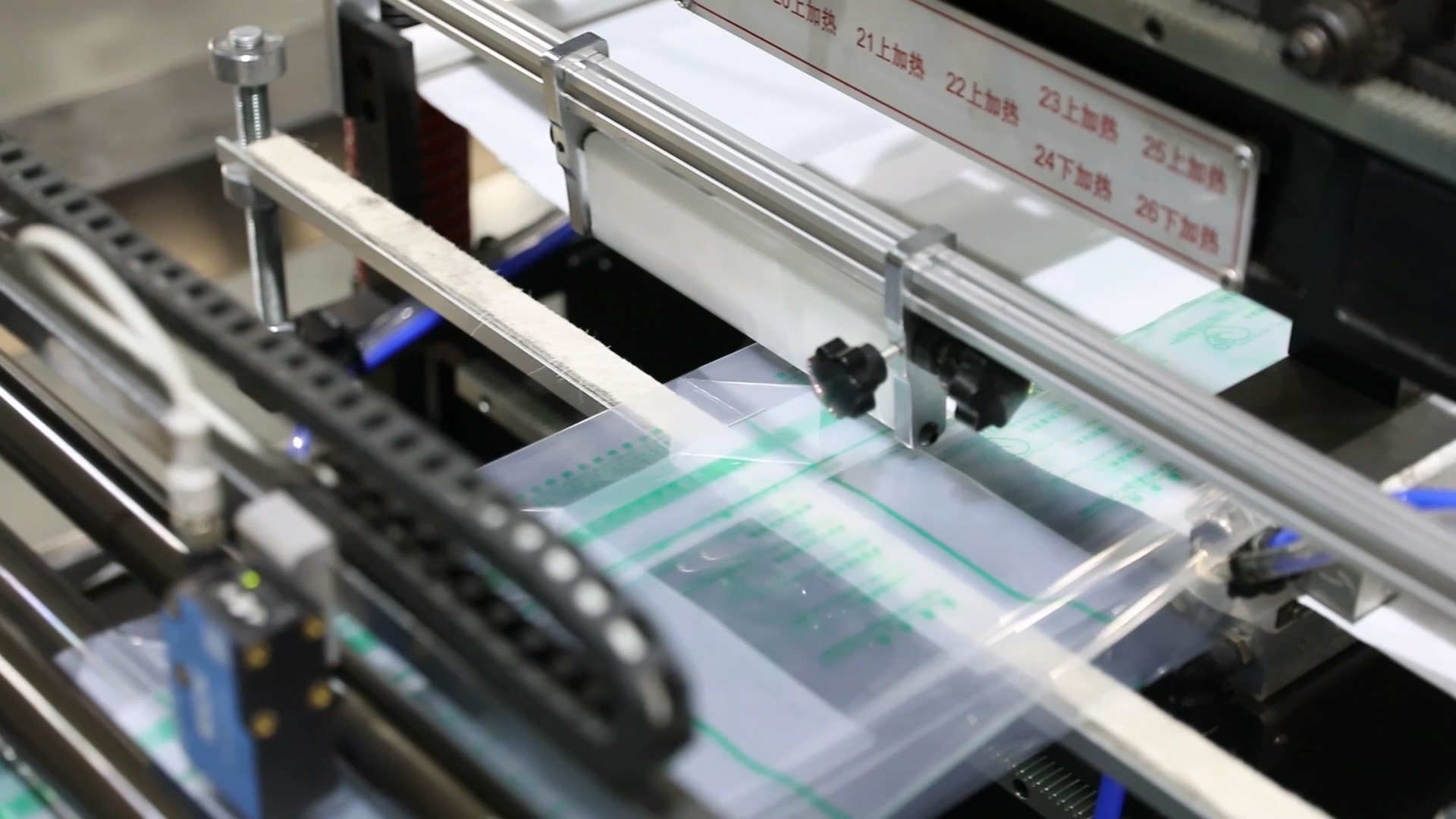

| FILM FEEDING MECHANISM | 6 AC servo motors traction system; LCD screen parameter setting; colour mark sensor tracking and positioning | ||
| HEAT SEALER DRIVE | AC servo motor centralized drive system with heat sealing opening and closing time setting function | ||

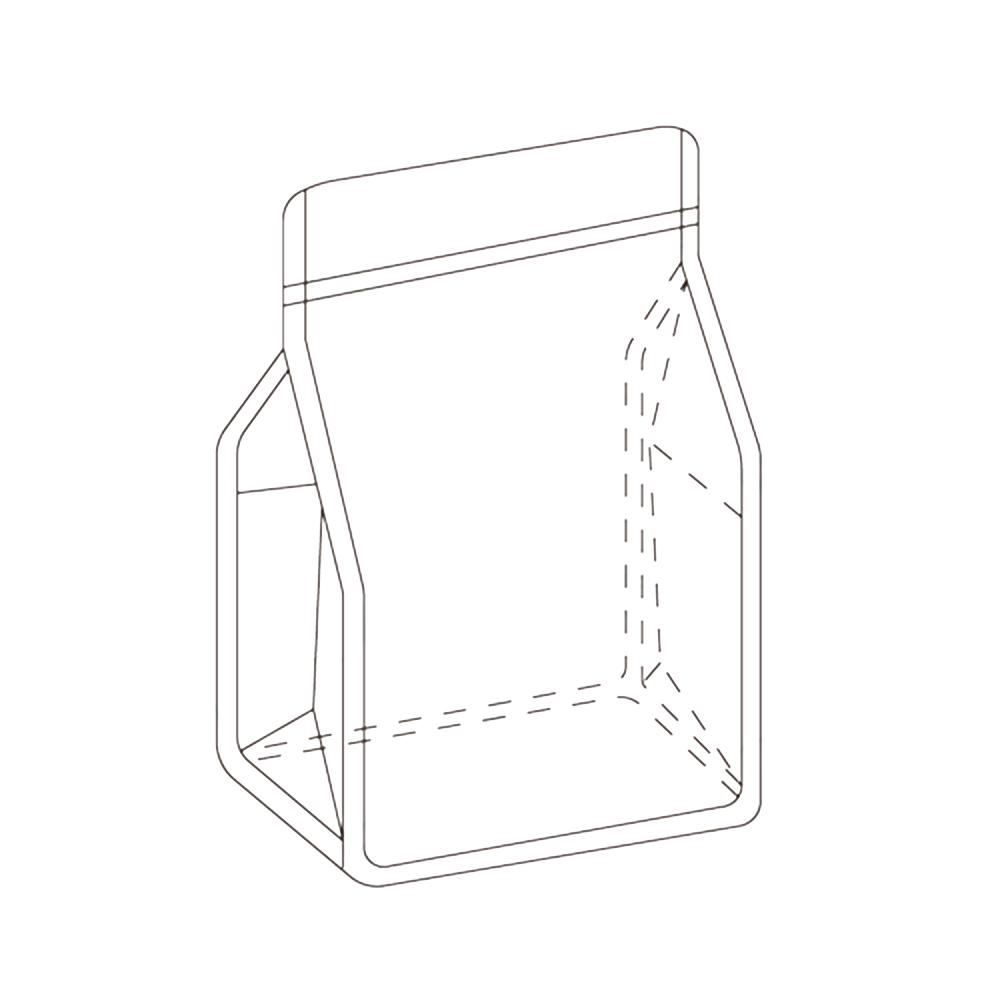

| FLAT BOTTOM POUCH WITH ZIPPER | Max. 120 CPM / Max. unwinding speed: 25 m/min | ||

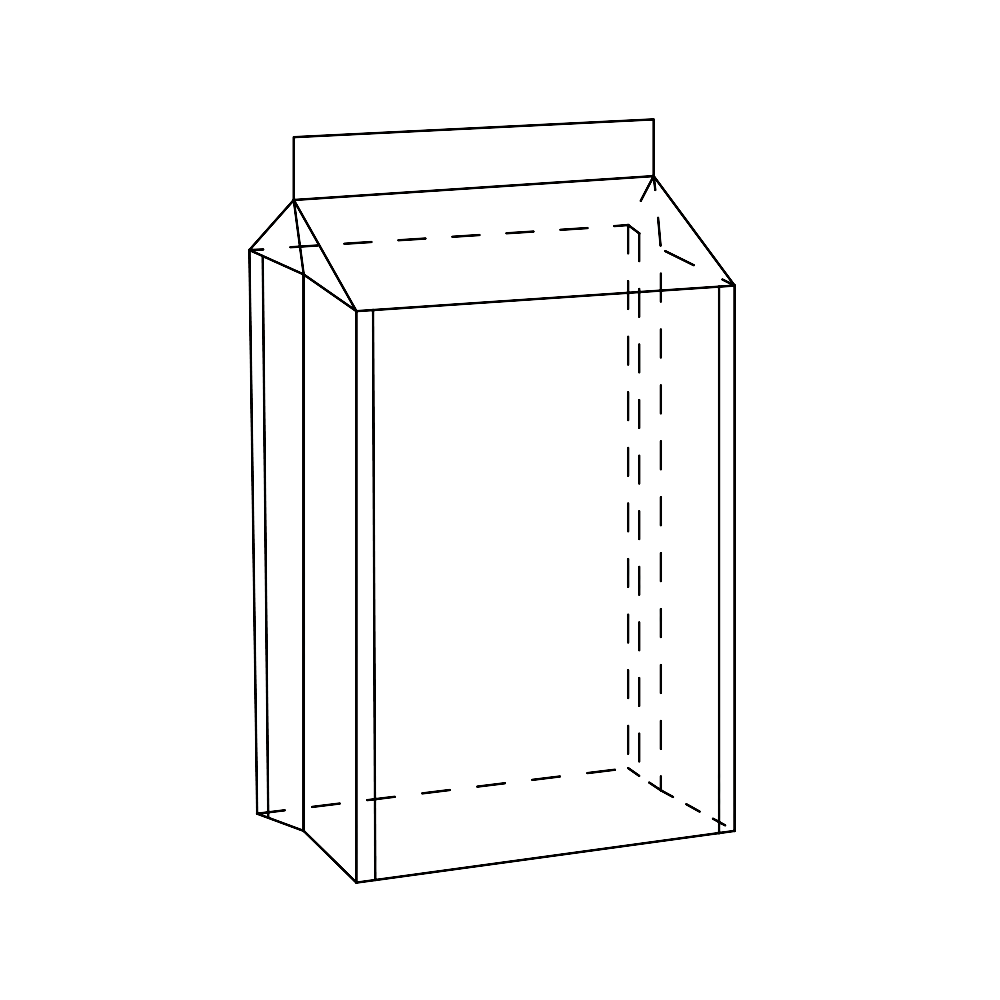

| QUAD SEAL POUCH | Max. 120 CPM / Max. unwinding speed: 25 m/min | ||
| EQUIPMENT POWER STANDARD | FEED AC SERVO MOTORS | 6 × 2.0 kW = 12.0 kW | |
| HEAT SEAL AC SERVO MOTOR | 1 × 5.0 kW = 5.0 kW | ||
| UNWINDING VARIABLE FREQUENCY MOTORS | 2 × 0.4 kW = 0.8 kW | ||
| LONGITUDINAL SEAL HEATERS | 8 × 6.0 kW = 48.0 kW | ||
| CROSS SEAL HEATERS | 6 × 6.0 kW = 36.0 kW | ||
| SPOT SEAL HEATERS | 4 × 1.0 kW + 2 × 2.0 kW = 8.0 kW | ||
| CONTROL SYSTEM & OTHERS | 2 × 1.0 kW = 2.0 kW | ||
| GUSSET FEED SERVO MOTOR | 1 × 1.5 kW = 1.5 kW | ||
| GUSSET CUTTER SERVO MOTOR | 1 × 0.4 kW = 0.4 kW | ||
| GUSSET FEED TRANSPORT SERVO | 1 × 1.0 kW = 1.0 kW | ||
| GUSSET LONGITUDINAL SERVO | 1 × 0.75 kW = 0.75 kW | ||
| GUSSET UNWINDING MOTORS | 2 × 0.2 kW = 0.4 kW | ||
| TOTAL | 115.85 kW / 380V / 50Hz | ||
| OPTIONAL POWER | Waste edge winder: 1 × 0.3 kW = 0.3 kW | ||
| AIR PRESSURE REQUIRED | 0.6 MPa / 6 kgf/cm² | ||
| COOLING WATER REQUIRED | Approx. 15 L/min | ||
| STANDARD DEVICES | ● Double feeding device ● Puncher bracket ● Waste edge winding machine | ||
| OPTIONAL DEVICES | ○ Puncher module various ○ Rounding device ○ Thickness detection device ○ Double cutting blade device ○ Feeding auxiliary device | ||
| PARAMETER | DESCRIPTION | ||
| W | Pouch Width | ||
| L | Pouch Length | ||
| G1 | Side Gusset Depth | ||
| POUCH WIDTH W | 100–300 mm / no skip function | ||
| POUCH LENGTH L | 180–650 mm | ||
| SIDE GUSSET DEPTH G1 | 50–90 mm | ||
| POUCH WIDTH W | 100–300 mm / no skip function |
| POUCH LENGTH L | 180–650 mm |
| SIDE GUSSET DEPTH G1 | 50–90 mm |
| BOTTOM INSERT DEPTH G2 | 50–115 mm |
| POUCH WIDTH W | 100–300 mm / no skip function |
| POUCH LENGTH L | 180–650 mm |
| SIDE GUSSET DEPTH G1 | 50–90 mm |
| BOTTOM INSERT DEPTH G2 | 50–115 mm |
-
