OYANG EasyCut Flatbed Die Cutting & Stripping Machine

A high‑precision flatbed die cutting and stripping solution for cartons, packaging components, specialty printed products, labels and post‑press finishing applications.


Key Selling Points

Flatbed Die Cutting Stripping & Waste Removal Multiple Bed Sizes (1050–1650SS) Stable Production Quality

CE & ISO9001 Certified Spare Parts & After‑Sales Support

c17d986b9c8274c152c14b3e413d211a

High Precision Flatbed Die Cutting & Stripping for Packaging and Labels

The EasyCut Flatbed Die Cutting & Stripping Machine series provides reliable cutting and stripping solutions for packaging converters, carton manufacturers, label producers and post‑press finishing factories. With multiple flatbed sizes available — 1050SS, 1180SS, 1300SS, 1500SS and 1650SS — this machine supports flexible production from small presentation boards to large packaging components.


EasyCut delivers clean cutting edges, accurate creasing and efficient stripping of waste material, helping improve production efficiency and reducing manual labor in post‑press finishing. Its rigid frame, precise motion control and customizable tooling make it suitable for both short‑run and high‑volume production.

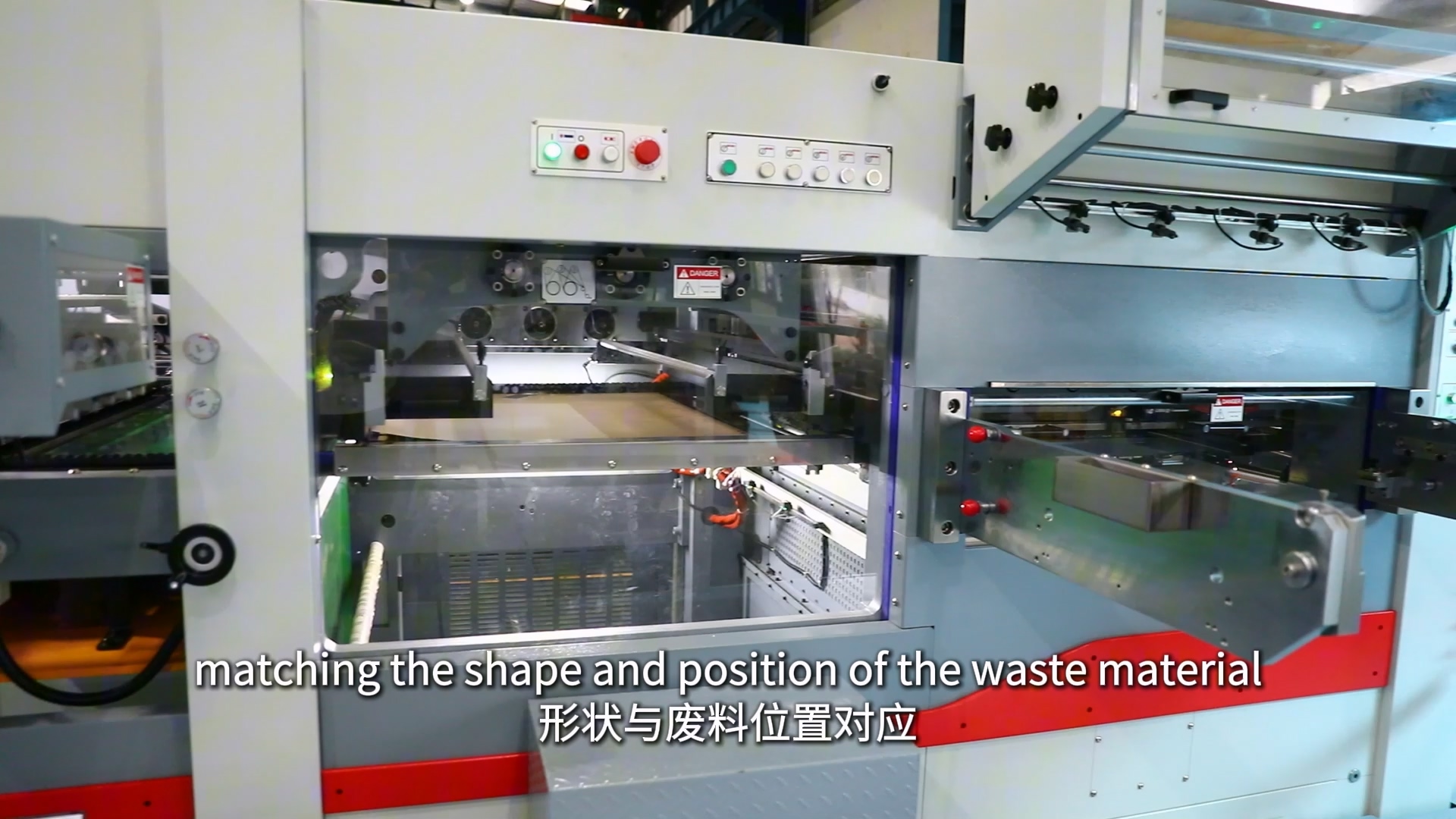

Stripping-Board-Precisely-Matches-Waste-Position-—-Fast-Tool-Changeover-for-Efficient-Operator-Friendly-Production

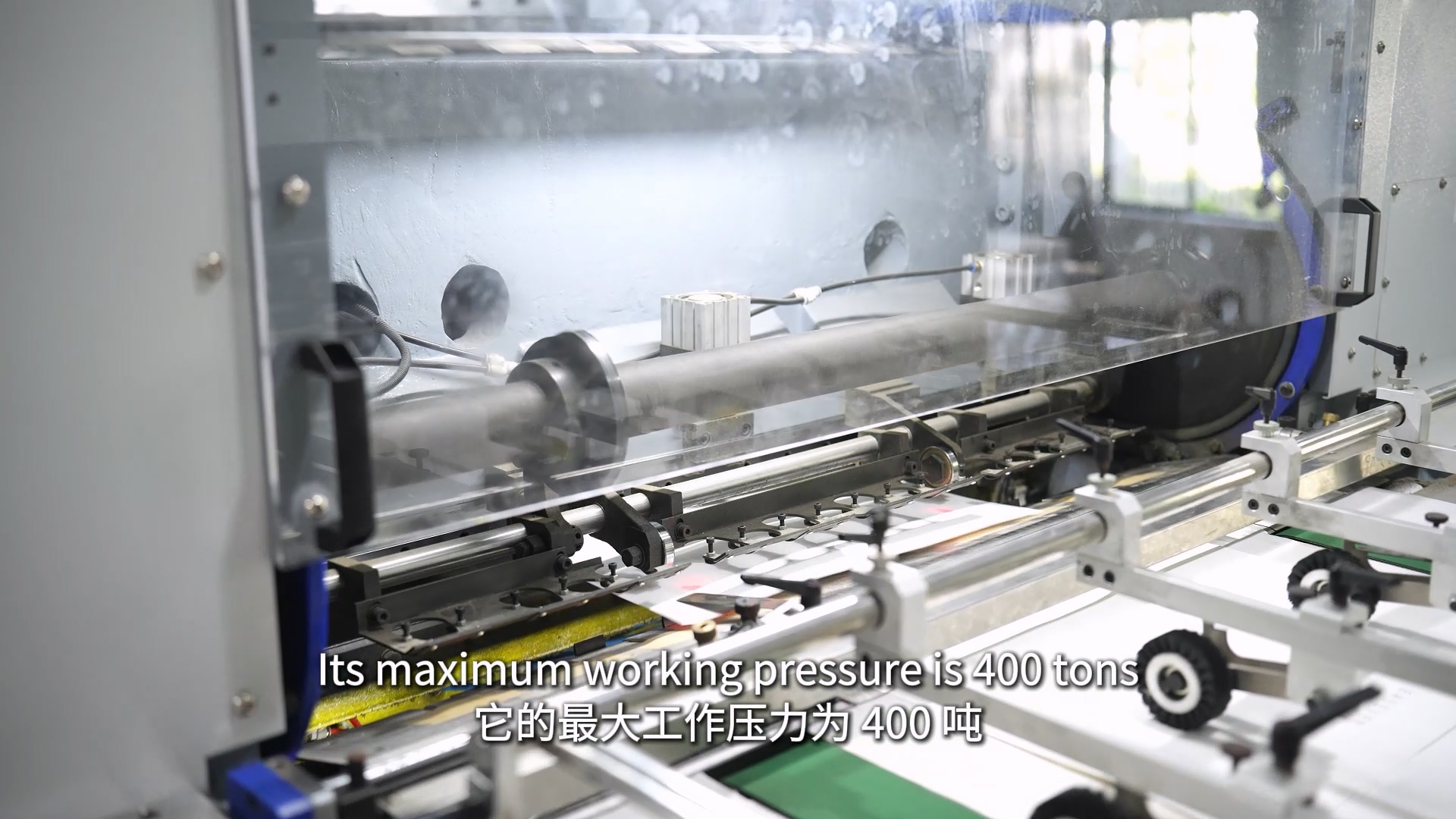

400–450-Ton-Cutting-Pressure-±0.075mm-Registration-Accuracy-—-OYANG-SS-Series-Built-for-Precision-Packaging

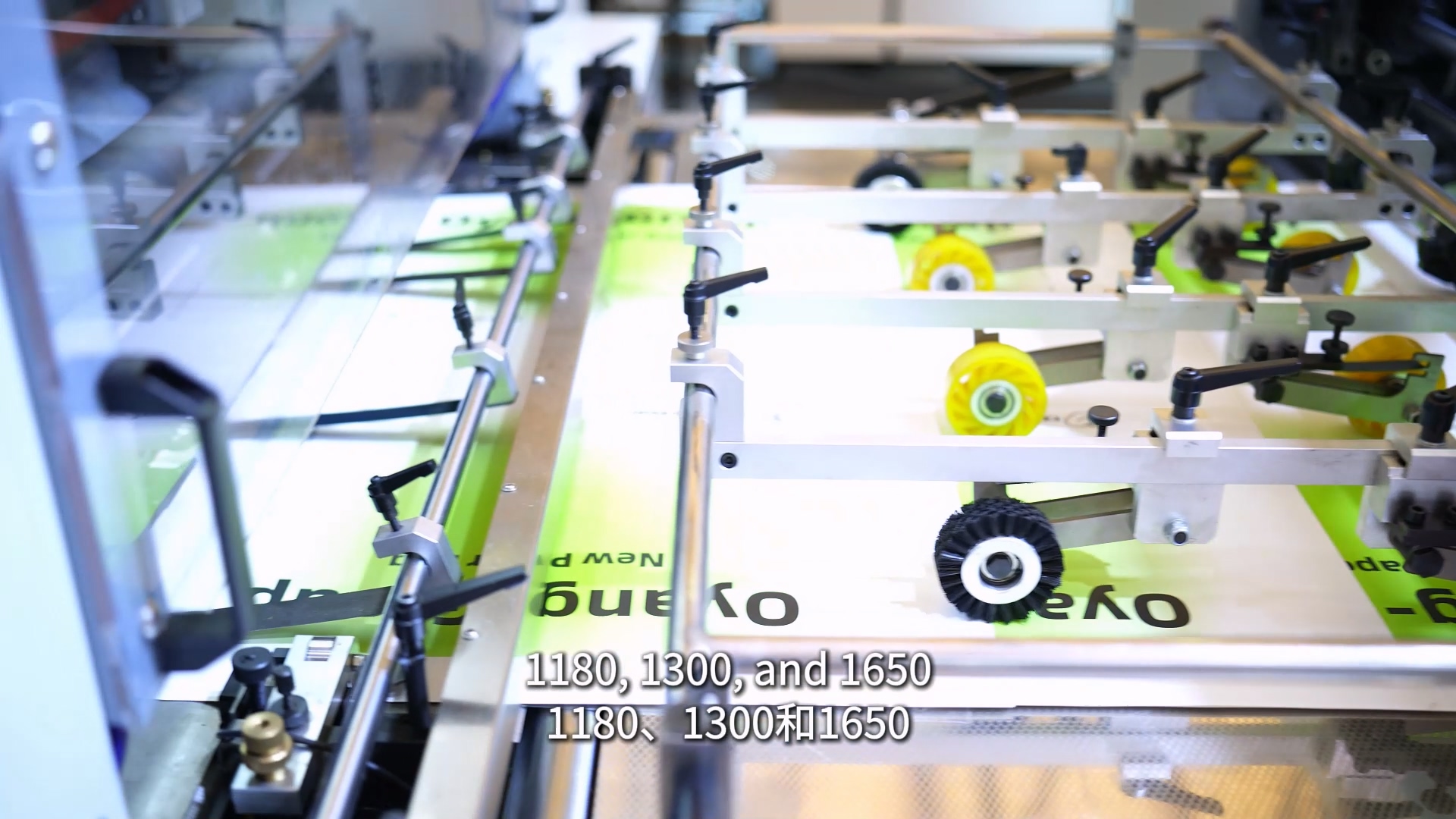

OYANG-WH-SS-Series-Flatbed-Die-Cutting-Stripping-Machine-—-From-1050-to-1650-Full-Format-Coverage

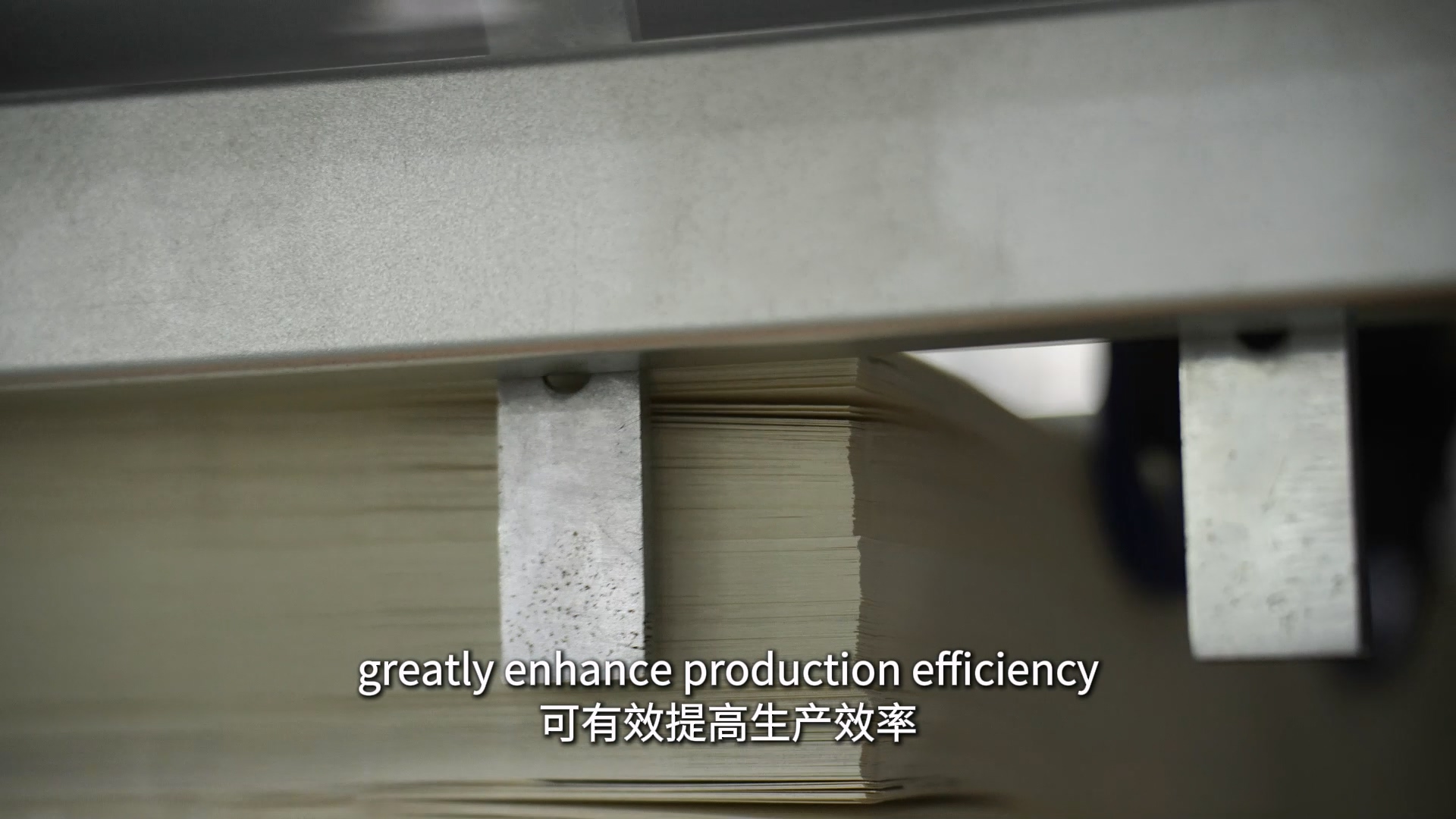

Auto-Main-Auxiliary-Collection-Tables-—-Maximize-Uptime-Ensure-Accurate-Count-On-Time-Delivery

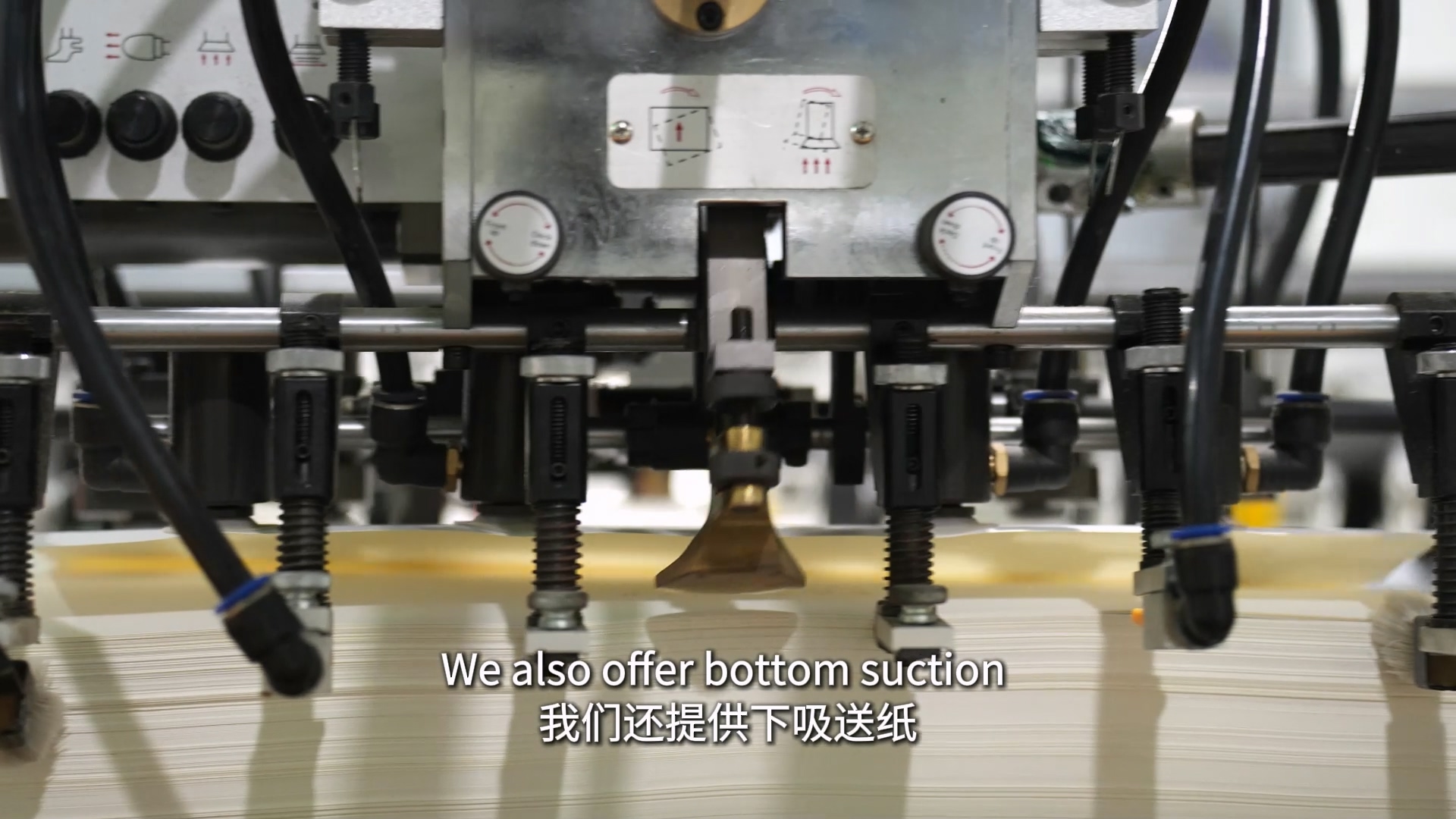

Dual-Feeding-Options-Front-Edge-Feeder-Bottom-Suction-—-Stable-Smooth-Sheet-Feeding-for-All-Paper-Types

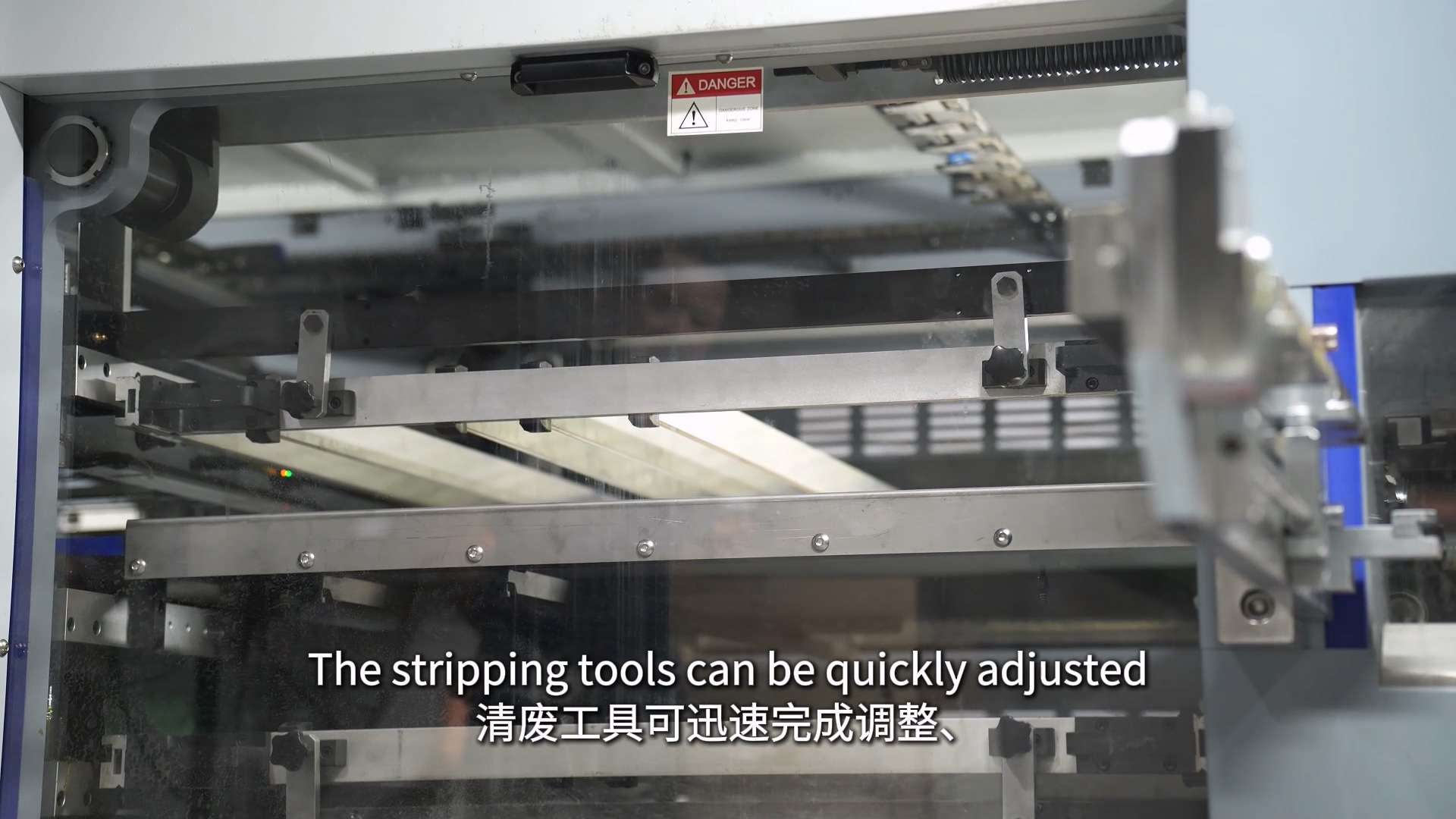

Quick-Release-Stripping-Tools-—-Rapid-Adjustment-Easy-LoadingUnloading-to-Minimize-Downtime

Watch the EasyCut Die Cutting & Stripping Process

Front-Edge vs. Bottom Suction Feeder
EASYCUT 1180SS Machine Introduction
SS Series Full Functions & Box Making Process

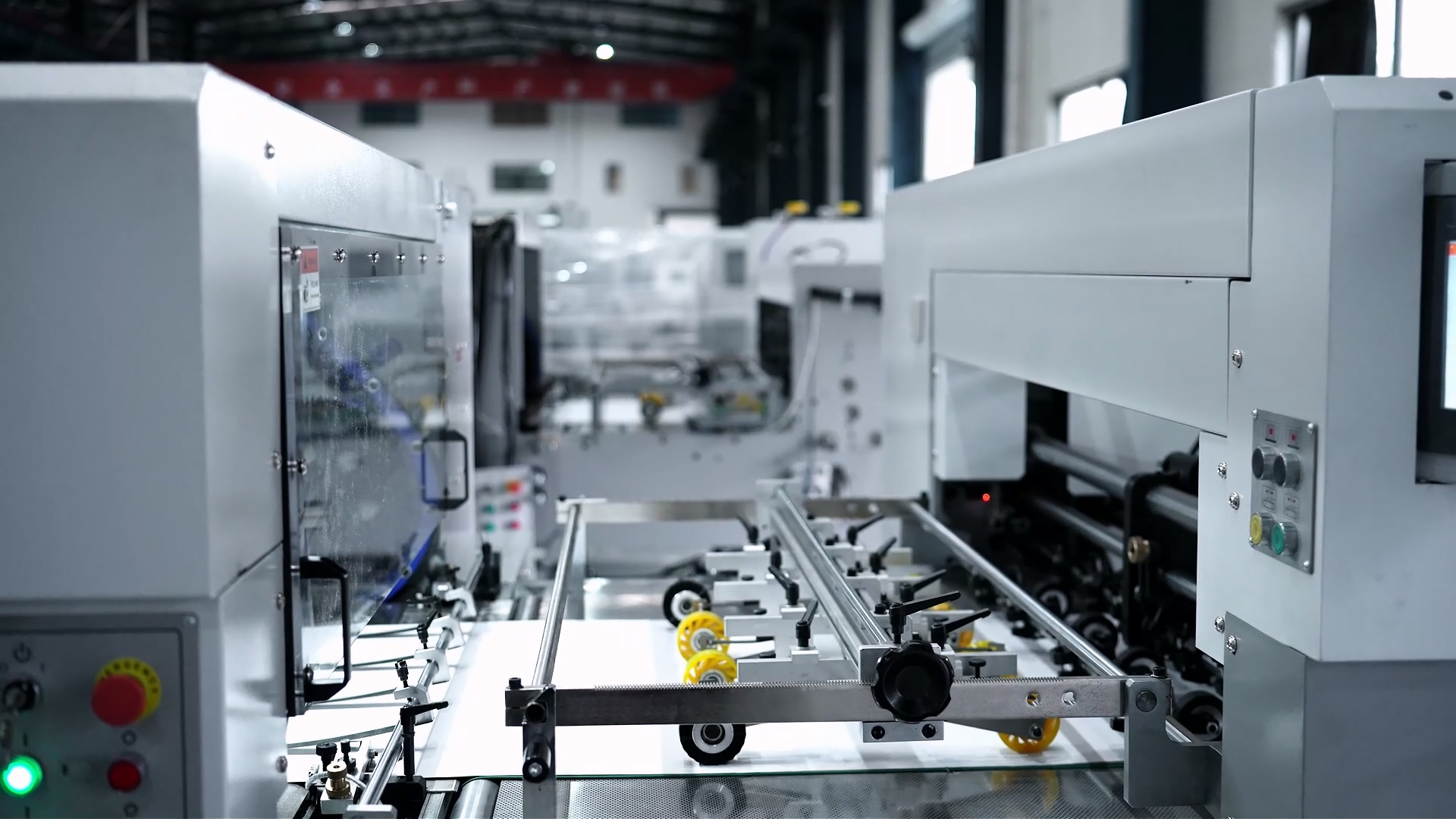

e14c09dd43fecd2f8890bdb7ae98458b

EasyCut SS Series for Flatbed Die Cutting and Stripping

The EasyCut SS Series is designed for automatic flatbed die cutting and stripping in post-press packaging production. It is suitable for packaging manufacturers, printing converters and carton producers who need accurate die cutting, efficient waste stripping and stable finished product output.

With multiple machine sizes available, including 1050SS, 1180SS, 1300SS, 1500SS and 1650SS, the EasyCut series can support different sheet formats and production requirements. It is widely used for folding cartons, packaging components, labels, printed paperboard, cardboard sheets and other post-press converting applications.

This machine helps customers complete die cutting and waste removal in one efficient workflow, reducing manual stripping work and improving production consistency.


Key Value Points

Automatic flatbed die cutting and stripping machine

Suitable for post-press carton and packaging production

Multiple size options from 1050SS to 1650SS

Clean cutting edges and efficient waste removal

Ideal for paperboard, carton, label and printed sheet converting

From Printed Sheet to Cut and Stripped Product

The EasyCut machine completes the post-press die cutting and stripping process through a clear production workflow. Printed sheets or paperboard are fed into the machine, accurately positioned, die cut into the required shape, stripped of waste material and output as finished parts ready for collection or downstream packaging production.

5-Step Production Flow

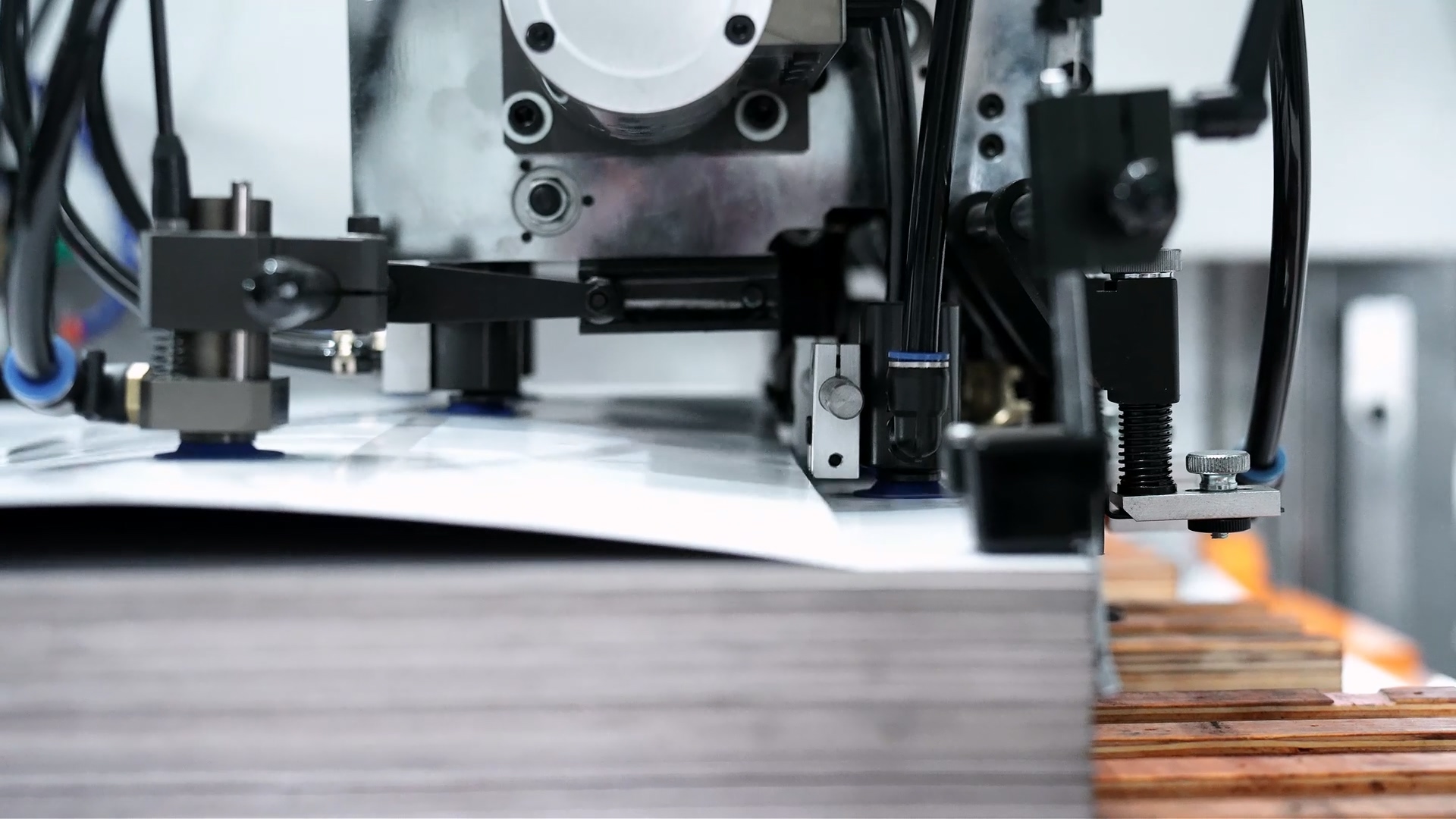

Auto-Sheet-Alignment-Feeder-EASYCUT-SS-Supports-1180-1300-1500-1650-mm
STEP 01

Printed Sheet Feeding

Printed paperboard, cardboard, label sheets or packaging materials are fed into the machine for die cutting and stripping.

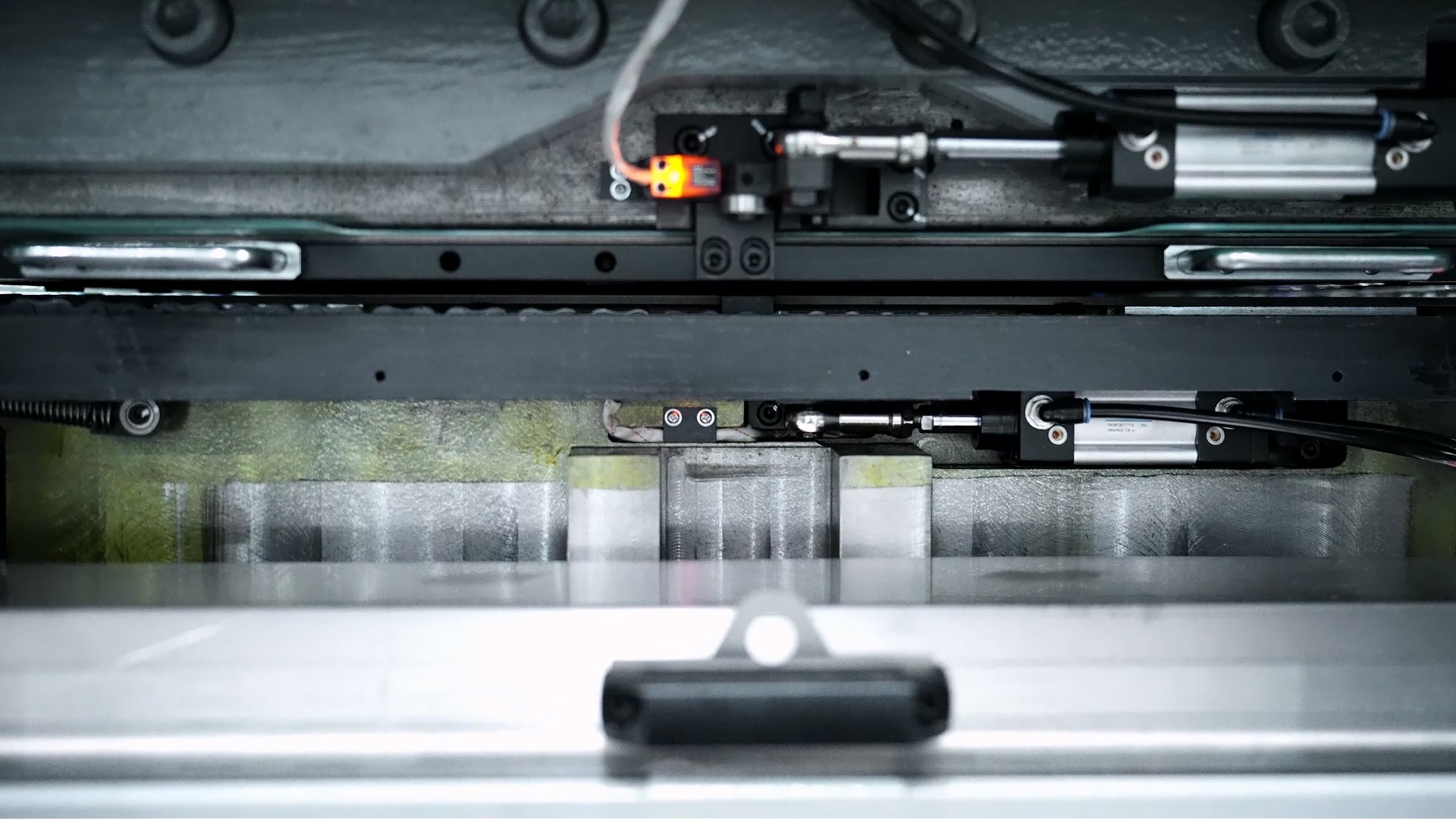

High-Pressure-Die-Cutting-with-Imported-Alloy-Crankshaft-Worm-Gear-EASYCUT-SS
STEP 02

Sheet Registration and Positioning

The sheet is accurately positioned before cutting to help maintain cutting accuracy and repeatable production quality.

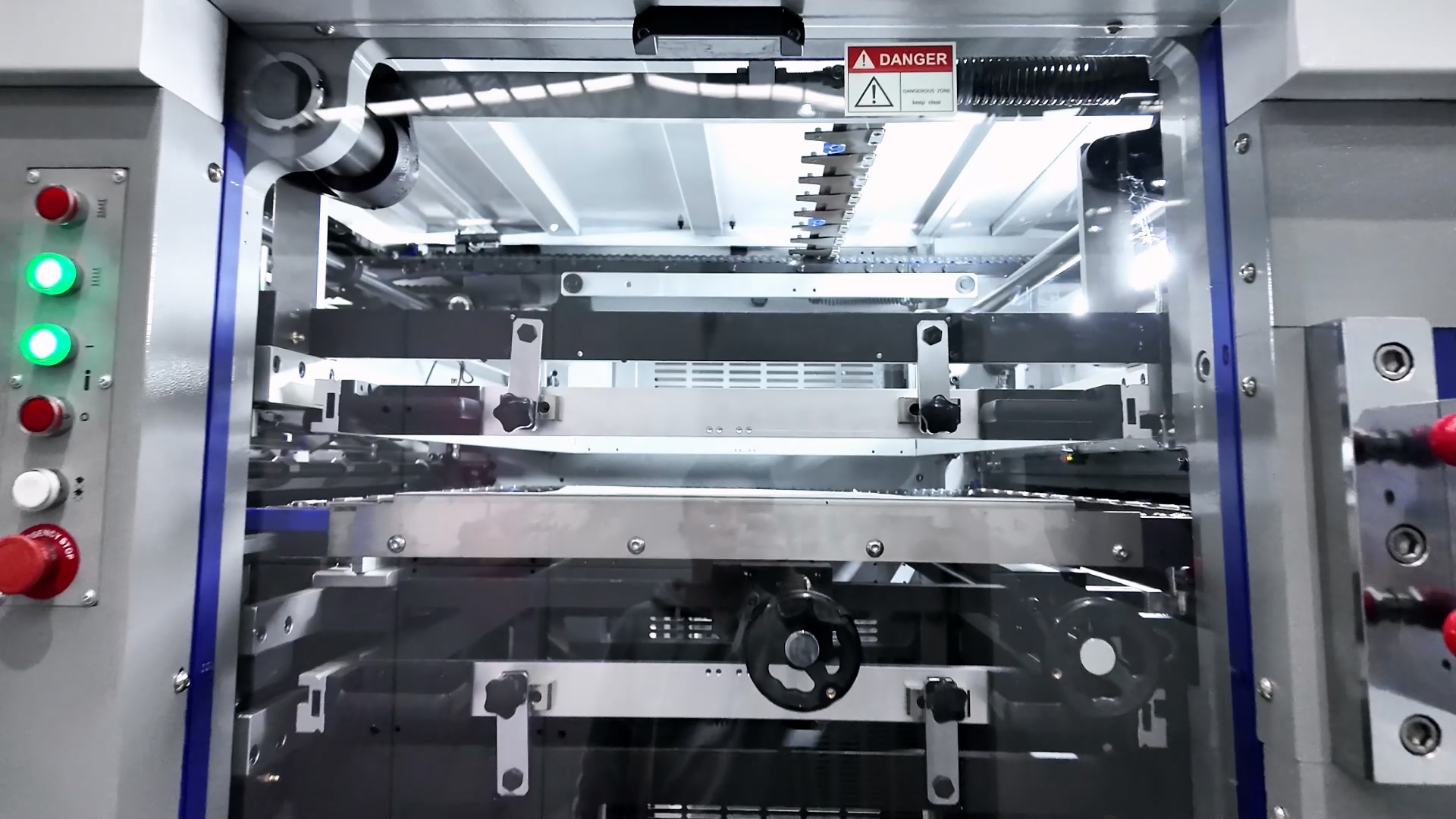

Middle-Frame-Stripping-Plate-Upper-Lower-Punch-—-Clean-Waste-Ejection-Every-Time
STEP 03

Flatbed Die Cutting

The flatbed die cutting section cuts and creases the sheet according to the required product shape, such as carton blanks, labels, packaging inserts or custom paperboard parts.

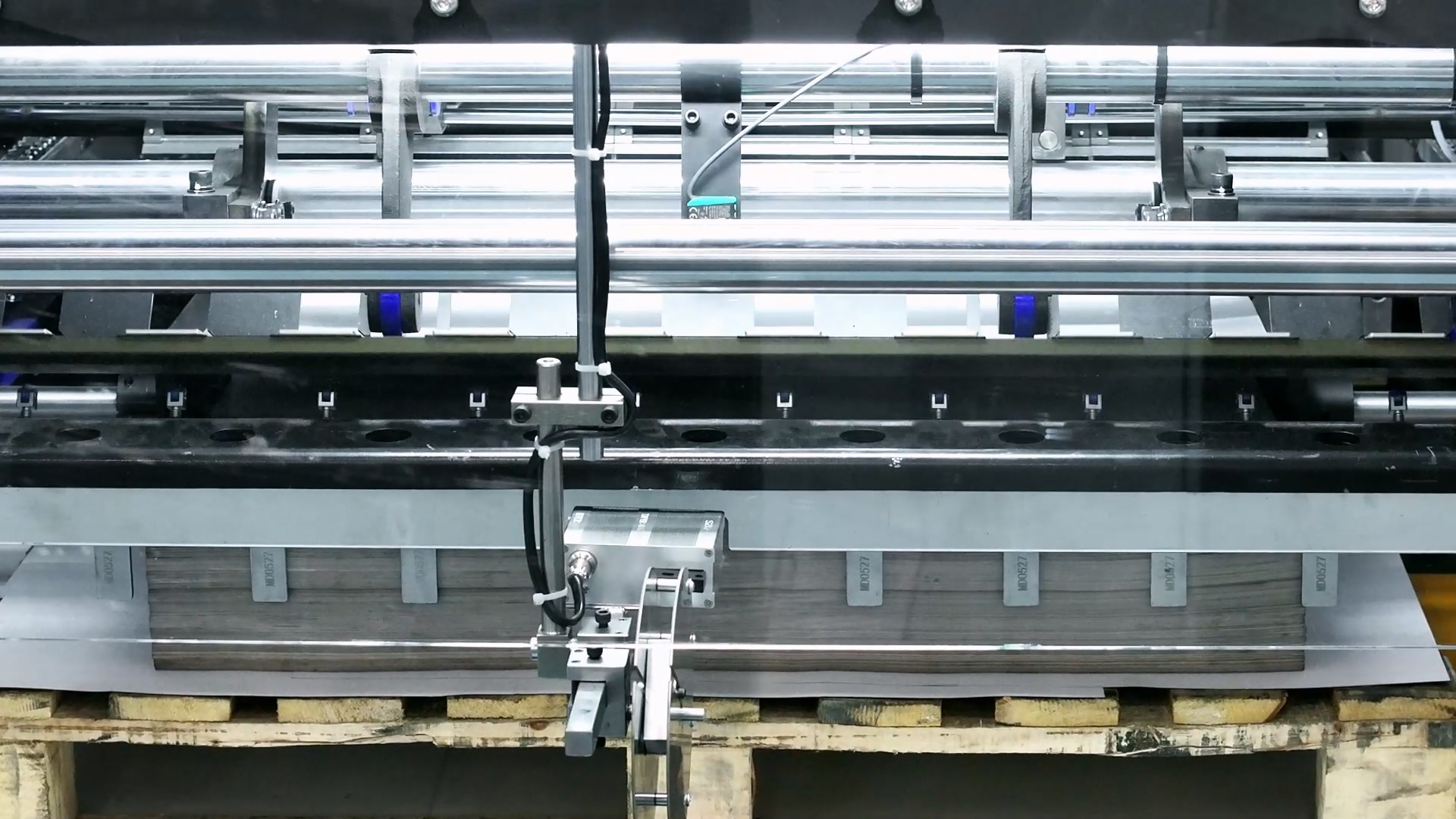

Curtain-Type-Switch-Enables-Uninterrupted-Paper-Collection-OYANG-EASYCUT-SS
STEP 04

Stripping and Waste Removal

The stripping section removes unwanted waste material from the die-cut sheet, reducing manual cleaning and improving production efficiency.

Auto-Sheet-Alignment-Feeder-EASYCUT-SS-Supports-1180-1300-1500-1650-mm
STEP 05

Finished Product Output

The finished cut and stripped products are output for collection, inspection or the next production process.

Built for Clean Cutting, Efficient Stripping and Stable Production

The EasyCut SS Series focuses on cutting accuracy, stripping efficiency and long-term production stability. It is designed for customers who need reliable post-press converting equipment for cartons, packaging sheets, labels and specialty printed products.

Precision Flatbed Die Cutting

The flatbed die cutting system helps achieve clean cutting edges, accurate creasing and consistent product shapes for packaging and printed sheet applications.

Integrated Stripping Function

The stripping section removes waste material after die cutting, helping reduce manual labor and keep the production process cleaner and more efficient.

Multiple Model Sizes

The series includes 1050SS, 1180SS, 1300SS, 1500SS and 1650SS, allowing customers to choose a suitable machine according to sheet size, product layout and production capacity.

Suitable for Packaging and Label Converting

The machine can be used for carton blanks, box panels, packaging inserts, label sheets, promotional printed products and custom die-cut paperboard parts.


Stable Post-Press Production

The machine structure is designed to support stable die cutting and stripping performance, helping customers maintain consistent output in packaging production.

Flexible Tooling for Different Products

Different die tools and stripping tools can be configured according to the product shape, sheet material and production requirements.


Finished Products You Can Create with EasyCut

The EasyCut Flatbed Die Cutting & Stripping Machine is suitable for a wide range of post-press packaging and printing applications. It helps manufacturers produce clean, accurately cut and efficiently stripped paperboard products.
Sheet-feed-Colorful-Non-Crease-Paper-Bags-for-Promotional-Packaging

Folding Cartons

Used for producing carton blanks with accurate cutting and creasing lines for food, cosmetics, healthcare, electronics and consumer goods packaging.

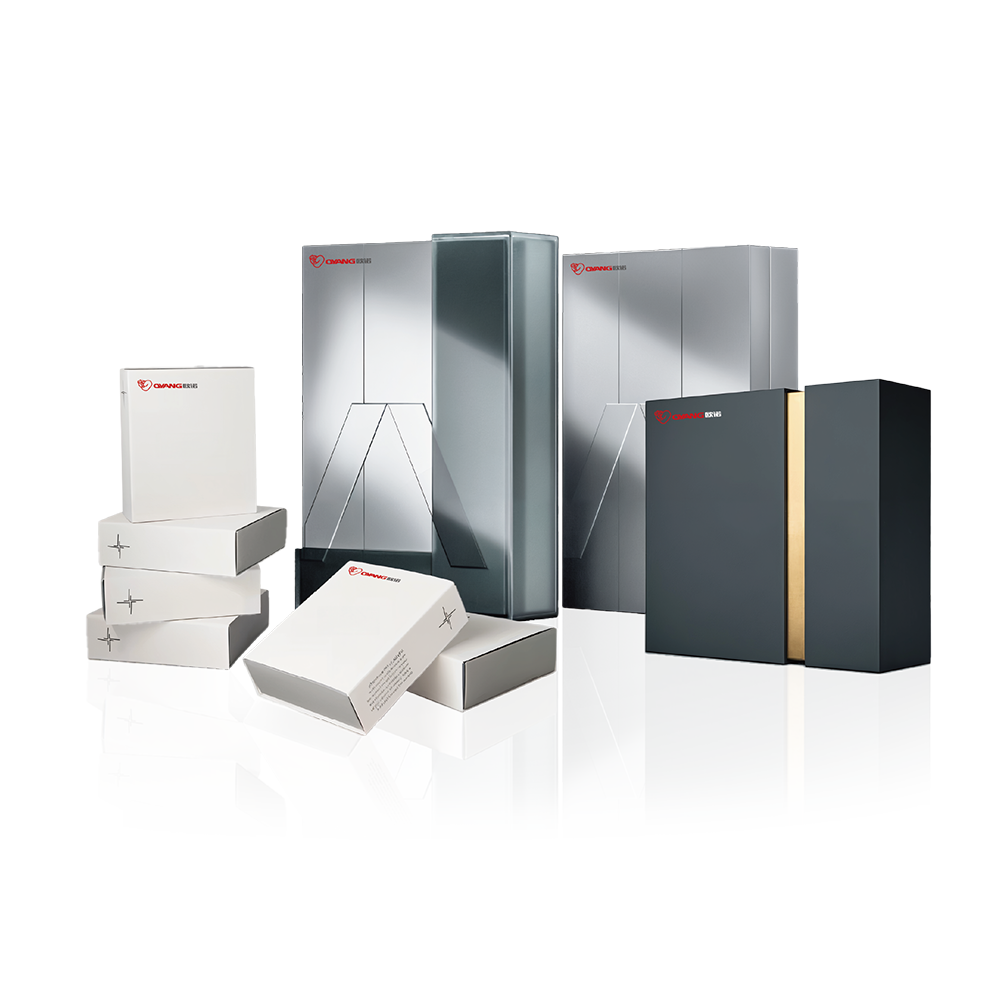

Precision-Die-Cut-Luxury-Gift-Boxes-—-Made-with-OYANG-EASYCUT-Flatbed-Die-Cutting-Machine

Packaging Components

Suitable for packaging panels, box parts, inserts, sleeves and shaped paperboard components used in different packaging structures.
Printed-Folding-Carton-Boxes-–-Die-Cut-Packaging-for-Retail-Consumer-Goods-1

Labels and Stickers

Can support shaped label sheets and printed label materials that require precise cutting and clean waste removal.
Pizza-Retail-Corrugated-Boxes-–-Die-Cut-Packaging-for-Food-Consumer-Goods-1

Promotional Printed Products

Suitable for die-cut cards, brochures, display materials, hang tags, invitation cards and other special-shaped printed products.
Sheet-feed-Colorful-Non-Crease-Paper-Bags-for-Promotional-Packaging

Specialty Paperboard Parts

Used for custom paperboard shapes, decorative pieces, inner supports and other post-press converting products.

Technical Specifications

PARAMETERWH-1050SSWH-1180SSWH-1300SSWH-1500SSWH-1650SS
SERIESProcutProcut / EasycutProcut / EasycutEasycutEasycut
FEED TYPETop FeedTop / BottomTop / BottomTop / BottomTop / Bottom
MAX SHEET SIZE1050×750mm1180×900mm1300×1050mm1500×1200mm1650×1200mm
MIN SHEET SIZE400×360mm400×360mm440×360mm650×520mm650×520mm
MAX CUTTING SIZE1040×730mm1150×885mm1290×1000mm1480×1180mm1630×1180mm
BLADE HEIGHT———23.8mm23.8mm
FEEDING MATERIALS80–2000 g/m² cardboard, corrugated <4mm100–2000 g/m², F/E/B/C wall ≤2–4mm100–2000 g/m², F/E/B/C wall ≤2–4mm≥300 GSM, F/E/B/C/A wall≥300 GSM, F/E/B/C/A wall
MAX SPEED8,500 sh/hr6,800 sh/hr6,000 sh/hr5,000 sh/hr5,000 sh/hr
MIN SHEET EDGE3.5mm9mm9mm9.5mm9.5mm
MAX FEEDING PILE HEIGHT1,700mm1,600mm1,600mm1,750mm1,750mm
MAX CONVEYING HEIGHT1,450mm1,450mm1,450mm1,450mm1,450mm
REGISTRATION ACCURACY≤±0.075mm≤±0.075mm (Top)≤±0.1mm (Bottom)≤±0.075mm (Top)≤±0.1mm (Bottom)≤±0.3mm≤±0.3mm
REQUIRED AIR SUPPLY0.36 m³/min*0.36 m³/min*0.36 m³/min*——
MAX WORKING PRESSURE400 Ton400 Ton400 Ton450 Ton450 Ton
POWER REQUIRED20.0 kW24.0kW (Top)30.0/24.0kW (Bot)25.0kW (Top)40.0/35.0kW (Bot)36.0 kW38.0 kW
MACHINE WEIGHT17 Ton22 Ton25 Ton36 Ton38 Ton
DIMENSION (L×W×H)5.82×4.05×2.33m6.5×4.4×2.4m (Top)7.08×4.42×2.39m (Bot)7.3×4.5×2.45m (Top)7.96×4.52×2.45m (Bot)10.7×5.5×2.8m (Top)11.3×5.5×2.8m (Bot)10.7×5.6×2.8m (Top)11.3×5.6×2.8m (Bot)

Why OYANG Machines Last Longer & Run Faster

Every OYANG machine is built on three manufacturing pillars that competitors simply cannot match — delivering measurably better stability, precision and service life.

World-Class CNC Precision Machining

OYANG is the only packaging machine manufacturer in China to invest $30 million in a world-class CNC machining center — equipped with Japanese MAZAK flexible production lines for 24/7 automated processing and Okuma systems. Every wall panel, flange and structural component is machined to micron-level tolerances, ensuring long-term machine stability and consistent quality.

Key Benefits:
MAZAK flexible lines run 24/7, reducing human error in core part production
Okuma systems ensure sub-micron dimensional accuracy on flanges and wall panels
Consistent part quality across every machine — no batch variation
Longer component lifespan, with annual spare parts cost of around $400 USD compared with an industry average of $1,500 USD

Full Servo-Driven Motion Control

Unlike conventional machines that rely on mechanical cams and pneumatic timing, OYANG machines use full servo motor control across all critical axes. Each motion is independently programmable, enabling instant parameter adjustment, faster changeovers and real-time feedback correction.



Key Benefits:
Independent servo axes eliminate mechanical wear from cam-driven systems
Bag size changeover can be completed through the touchscreen, with no manual tool adjustment
Real-time closed-loop feedback maintains ±0.5 mm positional accuracy
Lower energy consumption and reduced heat generation compared with hydraulic or cam systems

Monolithic Cast-Iron Core Structure

While many manufacturers weld or bolt together multiple steel plates, OYANG uses one-piece integral casting for all core structural components. This eliminates joint stress points, dramatically improves rigidity and ensures the machine frame remains stable even after years of high-speed operation.



Key Benefits:
No weld joints — eliminating the leading cause of long-term frame deformation
Superior vibration damping helps maintain stable high-speed output at 90–100 pcs/min
Maintains geometric precision over 10+ years of continuous production
Every new product passes 10,000 rigorous tests before market release

OYANG Machines vs. Typical Industry Standard

OYANG Machines

MAZAK & Okuma CNC — micron-level part accuracy
Full servo control — instant parameter changeover
Integral cast frame — zero joint stress and 10+ year lifespan
Annual spare parts cost: around $400 USD

Typical Industry Standard

General CNC — variable tolerances between batches
Cam / pneumatic driven — manual retooling required
Welded steel frame — joint fatigue after 2–3 years
Annual spare parts cost: around $1,500 USD
Group 48
Rectangle

Get Your Free Quote Today

Let our experts help you choose the right non woven bag making solution.
Contact OYANG now to receive detailed specifications and pricing.

Latest News & Industry Insights

Stay updated with the latest innovations and market trends in the non woven packaging industry.

  • Smarter Drying for Better Printing — OYANG Redefines Energy Efficiency in Gravure Production
    Smarter Drying for Better Printing — OYANG Redefines Energy Efficiency in Gravure Production
    Three Breakthrough Technologies Empower Converters to Cut Costs, Boost Yield, and Improve Print Quality WENZHOU, China — In high-speed gravure printing, drying performance determines not just print quality but also production economics. For converters, a stable and energy-efficient drying system mea
  • How to Import Packaging Machinery from China: A Beginner's Guide
    How to Import Packaging Machinery from China: A Beginner's Guide
    In the tide of global trade, China has become the first choice for many companies to import packaging machinery with its strong manufacturing industry and competitiveness. For new customers, importing packaging machinery can be a complex and headache-inducing task, especially for those w
  • How To Choose The Right Stand Up Pouch Size And Making Machine
    How To Choose The Right Stand Up Pouch Size And Making Machine
    The common bags in the food packaging market have eight-sided seals and stand up pouch.Today we're going to talk about the stand up pouch.Choosing the right stand up pouch size isn’t difficult, but it does require an understanding of the dimensions and features you want for your pouch.

Frequently Asked Questions

Q1: What materials can the EasyCut machine process?

The EasyCut series handles a wide range of materials including paperboard, coated board, cardboard, printed sheets, label stock and laminated paper materials. It is ideal for post‑press converting in packaging and printing.

Q2: What is the main function of this machine?

This machine performs flatbed die cutting and stripping, which means it accurately cuts the sheet into the required shape and automatically removes waste material, delivering clean finished parts ready for collection or downstream use.

Q3: Which EasyCut models are available?

The EasyCut series includes multiple flatbed sizes:
1050SS, 1180SS, 1300SS, 1500SS, 1650SS
This allows customers to choose a model based on sheet size, product format and production capacity.

Q4: Can it handle custom die shapes or special products?

Yes — the EasyCut machine supports custom die tooling, enabling you to cut a variety of sheet shapes, be it packaging inserts, labels or specialty printed products.

Q5: How does the stripping (waste removal) work?

After die cutting, the machine automatically removes leftover waste material from the sheet. The integrated stripping mechanism helps reduce manual sorting, keeps the work area clean and improves production efficiency.

Q6: Is this machine suitable for high‑volume production?

Yes — EasyCut machines are designed for stable long‑term production. With rigid frames, precise motion control and efficient waste removal, they support both batch production and high‑output workflows.

Q7: What product types can be produced with this machine?

The EasyCut machine is suitable for producing:


Folding cartons and box panels
Packaging components and inserts
Shaped labels and stickers
Promotional printed pieces (cards, invitation tags, brochures)
Specialty paperboard parts and custom shapes

Q8: What information should I provide before requesting a quote?

To recommend the best configuration, please share:

Material type & thickness
Sheet dimensions
Product type & desired cut shape
Estimated daily output
Artwork or sample image (optional)

This helps us configure the most suitable model and tooling for your needs.

Q9: Does OYANG offer installation and training support?

Yes — OYANG provides global installation guidance, operator training, spare parts support and after‑sales service to ensure smooth machine startup and long‑term production performance.

Q10: How do I choose the right flatbed size?

The right model depends on your maximum sheet size, product layout and production plan. We recommend sending your sheet dimensions and product drawings so our engineers can make a tailored recommendation.
