ProFoil Flatbed Die Cutting & Hot Stamping Machine

The ProFoil Flatbed Die Cutting & Hot Stamping Machine is designed for high-precision flatbed die cutting and premium hot foil stamping applications. It supports packaging manufacturers, printing companies and post-press converters in producing high-quality cartons, labels, gift boxes, paperboard products and decorative printed materials.


Key Selling Points

Flatbed Die Cutting Hot Foil Stamping Post-Press Converting Packaging & Carton Finishing 1050 / 1180 / 1300 / 1500SF Models CE & ISO9001 Certified

Home Products Forming Machine Series Die Cutting Machine Automatic Hot Foil Stamping and Die Cutting Machine
d29112059cad66caeffa1d3ea88acda1

Product Overview — Flatbed Die Cutting & Hot Stamping Solution

The ProFoil Flatbed Die Cutting & Hot Stamping Machine from OYANG is engineered for precision die cutting and hot foil stamping across a variety of substrates — including paperboard, labels, cartons, packaging materials, gift boxes and promotional print products.


Combining a robust flatbed die cutting base with advanced hot stamping control, this machine delivers consistent cut accuracy and refined surface effects. It is ideal for converters and printers seeking quality finishing, repeatable performance and flexible job changeovers.


Integrated Die Cutting & Hot Foil Stamping capability

Supports a wide range of die sizes (1050 | 1180 | 1300 | 1500)

Suitable for paperboard, cardboard, laminated sheets, labels

Stable frame with precision motion control

Easy job recall and flexible tooling options

Gold-Silver-Holographic-Foil-Stamping-Results-on-Luxury-Packaging-OYANG-PROFOIL-SF-Series
4235d852ab3abb7b4f7464b6b7da2734
Auto-Sheet-Alignment-Feeder-EASYCUT-SS-Supports-1180-1300-1500-1650-mm

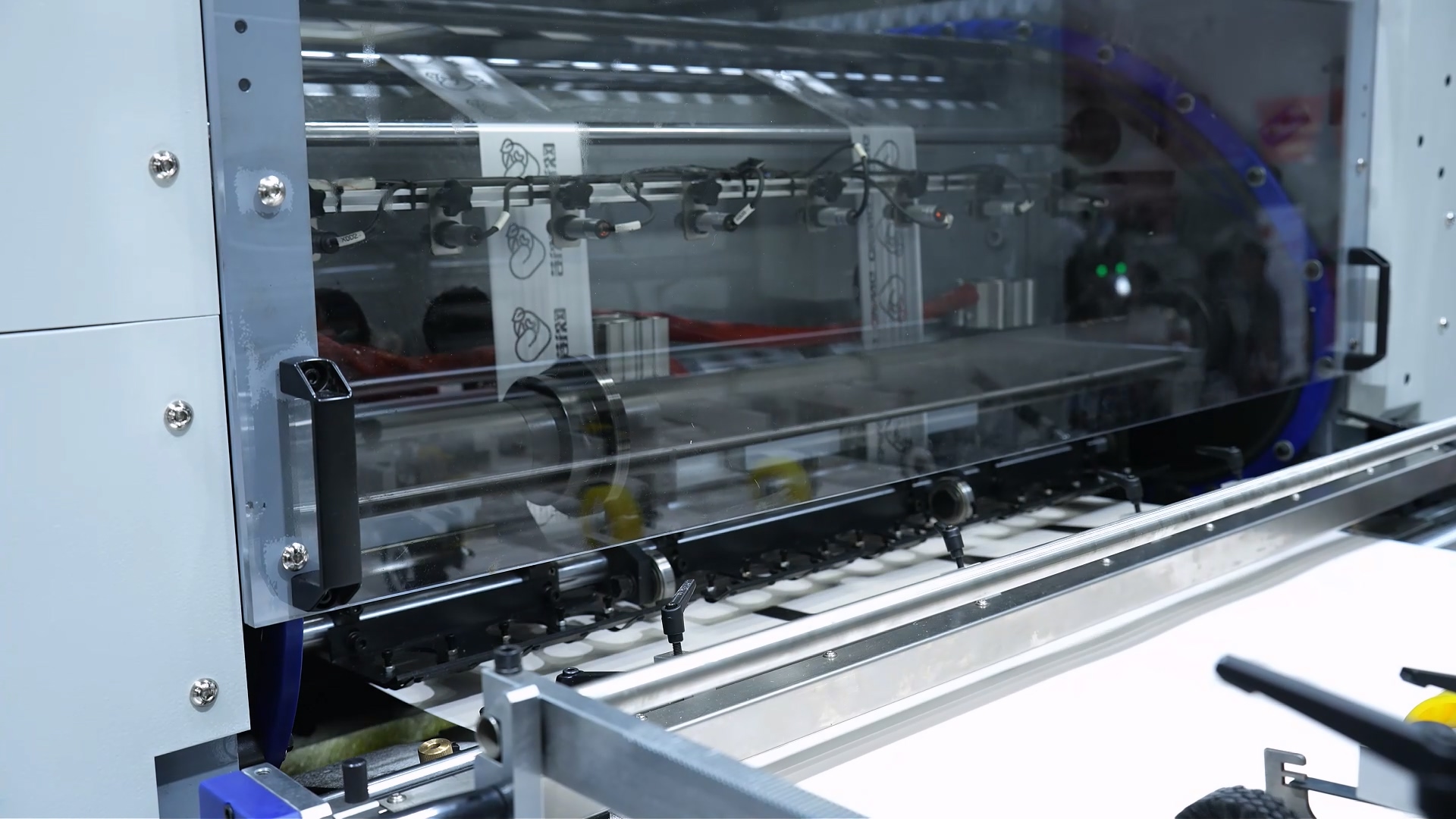

OYANG-PROFOIL-1050SF-—-Flatbed-Hot-Foil-Stamping-Die-Cutting-Machine
Inclined-Paper-Feeding-Table-for-High-Speed-Thin-Paper-Conveying-EASYCUT-SS

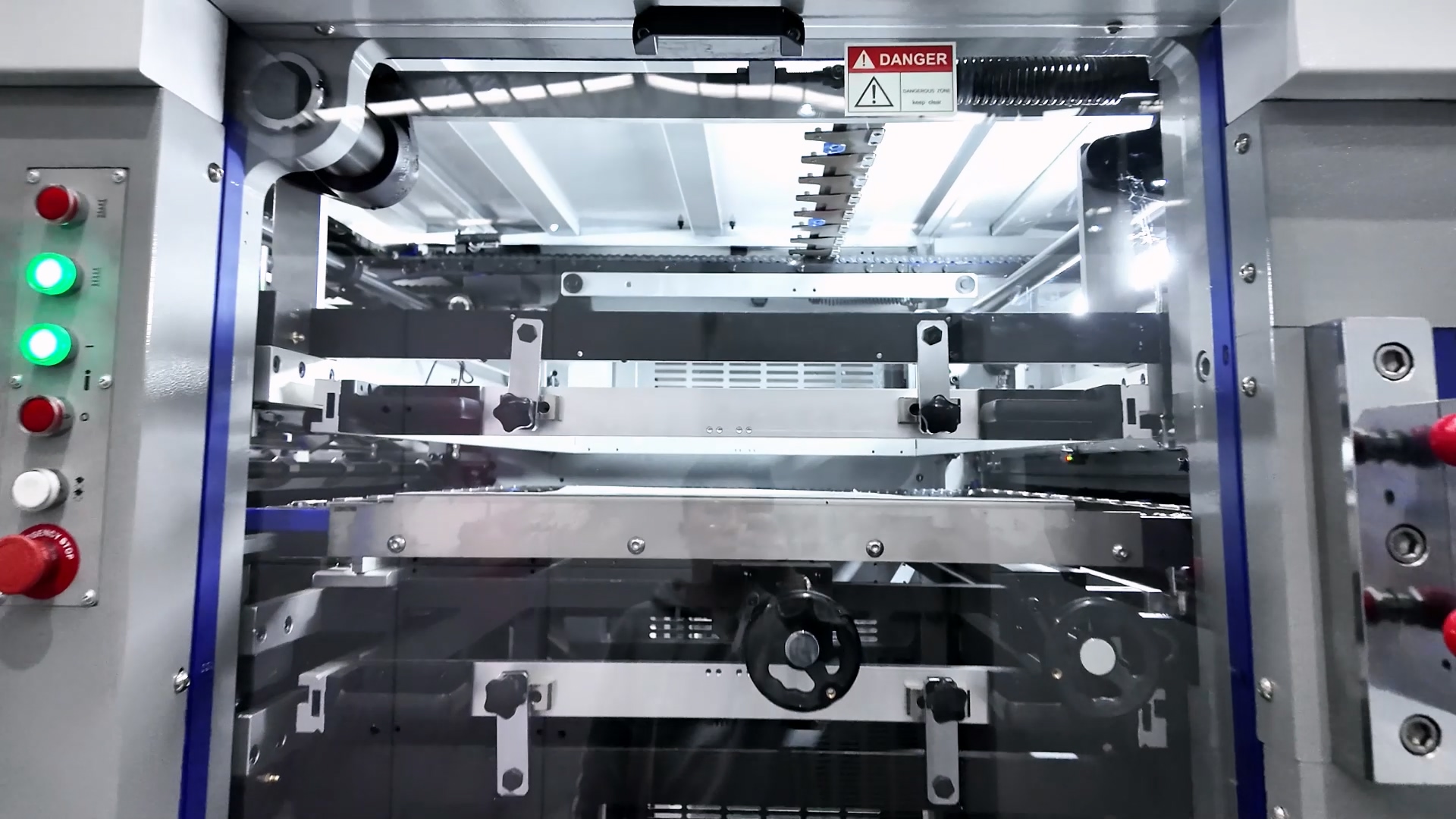

Middle-Frame-Stripping-Plate-Upper-Lower-Punch-—-Clean-Waste-Ejection-Every-Time

Machine Operation Video

A machine operation video helps buyers understand the actual production process, including sheet feeding, die cutting, hot foil stamping, waste stripping and finished product output.

PROFOIL SF Series — Full Function Overview
PROFOIL 1180SF — Features & Application Fields
4235d852ab3abb7b4f7464b6b7da2734

ProFoil Series for Premium Die Cutting and Foil Stamping

The ProFoil Series combines flatbed die cutting, creasing and hot foil stamping in one efficient post-press finishing machine. It helps packaging manufacturers and printing converters complete cutting, shaping and decorative foil effects within a streamlined production process.
Designed for cartons, labels, gift boxes, luxury packaging and promotional print products, the ProFoil Series delivers stable production quality, accurate registration and premium finishing effects for high-value paperboard and printed sheet applications.


Key Value Points

Die cutting and hot foil stamping in one integrated machine

Suitable for folding cartons, labels, gift packaging and decorative printed sheets

Supports premium metallic, holographic and branded foil effects

Helps reduce repeated handling between separate finishing processes

Available in multiple machine formats for different sheet sizes and production needs

From Printed Sheet to Finished Foil-Stamped Product

The ProFoil machine completes die cutting and hot foil stamping through a structured production workflow. Printed sheets are fed, positioned, die cut, foil stamped and output as finished packaging or decorative products. This process helps customers improve finishing efficiency, maintain repeatable quality and create premium visual effects for packaging and commercial printing applications. 5-Step Production Flow

STEP 01

Sheet Feeding

Printed paperboard, laminated sheets or packaging materials are automatically fed into the machine.

STEP 02

Accurate Sheet Positioning

The sheet is aligned before die cutting and foil stamping to ensure stable registration.
STEP 03

Flatbed Die Cutting and Creasing

The flatbed die cutting section cuts the sheet into the required shape and forms accurate creasing lines for folding cartons, labels or packaging parts.
STEP 04

Hot Foil Stamping

Foil is applied to selected areas, such as logos, brand names, decorative patterns or premium packaging details, through controlled heat and pressure.
STEP 05

Finished Product Output

The die-cut and foil-stamped sheet is output for collection, inspection or downstream packaging production.

Built for Accurate Finishing, Flexible Jobs and Stable Output

The ProFoil machine is designed for packaging and printing factories that need consistent die cutting accuracy, reliable foil stamping quality and flexible production capability.

Integrated Die Cutting and Hot Foil Stamping

One machine completes cutting, creasing and foil stamping, helping reduce process transfer and improve production workflow.

Multiple Sheet Size Options

The ProFoil Series includes 1050SF, 1180SF, 1300SF and 1500SF models to support different packaging sizes and production layouts.

Accurate Registration for Premium Finishing

Stable sheet positioning helps keep foil stamping aligned with printed graphics, logos and cutting lines.

Flexible Tooling and Job Changeover

Different cutting dies and foil stamping tools can be used according to product structure, pattern design and order requirements.

Stable Frame and Pressure Control

A rigid machine structure and adjustable pressure system help maintain consistent die cutting and stamping results during production.

Create Premium Metallic, Holographic and Branded Finishes

Hot foil stamping adds a high-value decorative effect to printed packaging and paperboard products. It helps brands create stronger shelf appeal, premium product identity and more eye-catching packaging presentation. The ProFoil machine supports a variety of foil effects for different packaging and branding needs.

Supported Foil Effects
4235d852ab3abb7b4f7464b6b7da2734

Gold and Silver Metallic Foil

Classic metallic effects for luxury packaging, gift boxes, cosmetic cartons, wine boxes and premium retail packaging.


Premium-Hot-Foil-Stamping-Effect-—-Flat-Embossed-Anti-Counterfeit-Finish-OYANG-PROFOIL-SF

Holographic Foil

Eye-catching reflective effects for promotional packaging, labels, security elements and decorative printed products.
Gold-Silver-Holographic-Foil-Stamping-Results-on-Luxury-Packaging-OYANG-PROFOIL-SF-Series

Logo and Text Stamping

Accurate foil stamping for brand logos, product names, graphic patterns and marketing messages.
Premium-Hot-Foil-Stamping-Effect-—-Flat-Embossed-Anti-Counterfeit-Finish-OYANG-PROFOIL-SF

Decorative Pattern Stamping

Foil effects can be applied to selected areas to create texture, depth and premium visual contrast

Finished Products You Can Create with ProFoil

The ProFoil Flatbed Die Cutting & Hot Stamping Machine is suitable for a wide range of post-press finishing applications. It helps customers produce premium packaging and printed products with accurate shapes, clean creases and high-quality foil decoration.
Sheet-feed-Colorful-Non-Crease-Paper-Bags-for-Promotional-Packaging

Folding Cartons

Die-cut and creased cartons for food, cosmetics, healthcare, electronics and consumer goods packaging.
Precision-Die-Cut-Luxury-Gift-Boxes-—-Made-with-OYANG-EASYCUT-Flatbed-Die-Cutting-Machine

Gift Boxes and Luxury Packaging

Premium packaging panels with gold, silver, holographic or decorative foil stamping effects.
Printed-Folding-Carton-Boxes-–-Die-Cut-Packaging-for-Retail-Consumer-Goods-1

Labels and Stickers

Foil-stamped labels and shaped label sheets for retail products, beverages, cosmetics and promotional packaging.
Pizza-Retail-Corrugated-Boxes-–-Die-Cut-Packaging-for-Food-Consumer-Goods-1

Promotional and Commercial Printed Materials

Cards, invitations, brochures, covers and marketing materials requiring special die-cut shapes and foil effects.
Sheet-feed-Colorful-Non-Crease-Paper-Bags-for-Promotional-Packaging

Decorative Paper Products

Custom paperboard components, inserts, tags and branded visual elements for packaging and display.

Technical Specifications

PARAMETERWH-1050SFWH-1180SFWH-1300SFWH-1500SF
MAX SHEET SIZE1050×750mm1180×900mm1300×1050mm1500×1100mm
MIN SHEET SIZE400×360mm400×360mm440×360mm440×380mm
MAX CUTTING SIZE1040×730mm1150×885mm1290×1000mm1490×1085mm
MAX HOT FOIL STAMPING SIZE1040×730mm1150×885mm1290×1000mm1490×1085mm
BOARD SIZE (INNER FRAME)1140×758mm1230×910mm1370×1025mm1582×1183mm
FEEDING MATERIALS90–2000 g/m² cardboard, 0.1–2mm cardboard, corrugated board ≤ 4mm157–2000 g/m² cardboard, 0.14–2mm, corrugated ≤ 6mm
MAX SPEED7,500 sh/hr6,800 sh/hr6,000 sh/hr6,000 sh/hr
MIN SHEET EDGE9.5 mm
MAX FEEDING PILE HEIGHT1,700mm1,600mm
MAX CONVEYING HEIGHT1,450mm
REGISTRATION ACCURACY≤ ±0.075mm
MAX WORKING PRESSURE400 Ton
POWER REQUIRED55.0 kW55.0 kW75.0 kW100 kW
ELECTRIC HEATING ZONES12 zonesmax. 200°C16 zonesmax. 200°C20 zonesmax. 200°C20 zonesmax. 200°C
MACHINE WEIGHT18 Ton20 Ton24 Ton30 Ton
DIMENSION (L×W×H)5.82×4.39×2.33m6.48×4.54×2.39m7.3×4.73×2.45m7.8×5.65×2.87m(incl. platform)

Why OYANG Machines Last Longer & Run Faster

Every OYANG machine is built on three manufacturing pillars that competitors simply cannot match — delivering measurably better stability, precision and service life.

World-Class CNC Precision Machining

OYANG is the only packaging machine manufacturer in China to invest $30 million in a world-class CNC machining center — equipped with Japanese MAZAK flexible production lines for 24/7 automated processing and Okuma systems. Every wall panel, flange and structural component is machined to micron-level tolerances, ensuring long-term machine stability and consistent quality.

Key Benefits:
MAZAK flexible lines run 24/7, reducing human error in core part production
Okuma systems ensure sub-micron dimensional accuracy on flanges and wall panels
Consistent part quality across every machine — no batch variation
Longer component lifespan, with annual spare parts cost of around $400 USD compared with an industry average of $1,500 USD

Full Servo-Driven Motion Control

Unlike conventional machines that rely on mechanical cams and pneumatic timing, OYANG machines use full servo motor control across all critical axes. Each motion is independently programmable, enabling instant parameter adjustment, faster changeovers and real-time feedback correction.



Key Benefits:
Independent servo axes eliminate mechanical wear from cam-driven systems
Bag size changeover can be completed through the touchscreen, with no manual tool adjustment
Real-time closed-loop feedback maintains ±0.5 mm positional accuracy
Lower energy consumption and reduced heat generation compared with hydraulic or cam systems

Monolithic Cast-Iron Core Structure

While many manufacturers weld or bolt together multiple steel plates, OYANG uses one-piece integral casting for all core structural components. This eliminates joint stress points, dramatically improves rigidity and ensures the machine frame remains stable even after years of high-speed operation.



Key Benefits:
No weld joints — eliminating the leading cause of long-term frame deformation
Superior vibration damping helps maintain stable high-speed output at 90–100 pcs/min
Maintains geometric precision over 10+ years of continuous production
Every new product passes 10,000 rigorous tests before market release

OYANG Machines vs. Typical Industry Standard

OYANG Machines

MAZAK & Okuma CNC — micron-level part accuracy
Full servo control — instant parameter changeover
Integral cast frame — zero joint stress and 10+ year lifespan
Annual spare parts cost: around $400 USD

Typical Industry Standard

General CNC — variable tolerances between batches
Cam / pneumatic driven — manual retooling required
Welded steel frame — joint fatigue after 2–3 years
Annual spare parts cost: around $1,500 USD
Group 48
Rectangle

Get Your Free Quote Today

Let our experts help you choose the right non woven bag making solution.
Contact OYANG now to receive detailed specifications and pricing.

Latest News & Industry Insights

Stay updated with the latest innovations and market trends in the non woven packaging industry.

  • Smarter Drying for Better Printing — OYANG Redefines Energy Efficiency in Gravure Production
    Smarter Drying for Better Printing — OYANG Redefines Energy Efficiency in Gravure Production
    Three Breakthrough Technologies Empower Converters to Cut Costs, Boost Yield, and Improve Print Quality WENZHOU, China — In high-speed gravure printing, drying performance determines not just print quality but also production economics. For converters, a stable and energy-efficient drying system mea
  • How to Import Packaging Machinery from China: A Beginner's Guide
    How to Import Packaging Machinery from China: A Beginner's Guide
    In the tide of global trade, China has become the first choice for many companies to import packaging machinery with its strong manufacturing industry and competitiveness. For new customers, importing packaging machinery can be a complex and headache-inducing task, especially for those w
  • How To Choose The Right Stand Up Pouch Size And Making Machine
    How To Choose The Right Stand Up Pouch Size And Making Machine
    The common bags in the food packaging market have eight-sided seals and stand up pouch.Today we're going to talk about the stand up pouch.Choosing the right stand up pouch size isn’t difficult, but it does require an understanding of the dimensions and features you want for your pouch.

Frequently Asked Questions

What products can this machine produce?

It can be used for folding cartons, gift boxes, packaging panels, labels, decorative paper products, promotional cards and other die-cut or foil-stamped products.

Can the machine perform both die cutting and hot foil stamping?

Yes. The ProFoil series is designed for flatbed die cutting and hot foil stamping, helping customers complete both cutting and decorative finishing functions.

Which model should I choose: 1050SF, 1180SF, 1300SF or 1500SF?

The right model depends on your sheet size, product layout, material type and production requirement. You can send your product size and artwork for recommendation.

What materials can the machine process?

It is suitable for paperboard, cardboard, laminated sheets, printed packaging sheets, label materials and other post-press converting materials within the machine’s specified range.

Can it be used for luxury packaging?

Yes. Hot foil stamping is widely used for luxury packaging, gift boxes, cosmetic packaging, wine boxes and branded retail packaging.

What information should I provide before requesting a quote?

Please provide sheet size, material thickness, product type, die cutting layout, stamping area, foil effect requirement and target production capacity.

Does OYANG provide installation and training?

Yes. OYANG can provide installation guidance, operator training, technical support and spare parts service according to project requirements.
